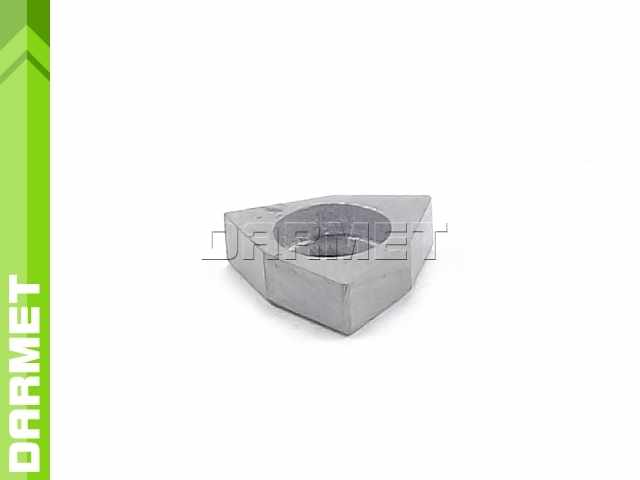

Support plate | trigonal shape 80 degrees | for WNMG plates (SHMW0804).
Availability:
temporarily unavailable
Gross price:
$6.91
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.62
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_SHMW0804
Description
Properties and applications:
- The support plate protects the lathe knife from damage if the cutting insert chipped off
- The presence of a shim prevents the cutting insert from denting the lathe knife seat
- Trigonal plate shape
- The support plate is fixed with:
- CLM fastening dowel - in M fastening system
- screws for the support plate - in the C and D fixing system
Technical data:
| Parameter | Value |
|---|---|
| D | 12.55 mm |
| R | 0.8 mm |
| T | 4.76 mm |
| Through hole | 7.35 mm |
Mounting system
| The SHMW0804 support plate fits the following. | ||
| cutting inserts | folding lathe knives | |
| external | internal | |
| WNMG 080404 NN PVD | MWLNR/L 2020K08 | S32S-MWLNR/L08 |
| WNMG 080408 NN PVD | MWLNR/L 2525M08 | S40T-MWLNR/L08 |
| WNMG 080408 DFM TP25C | MWLNR/L 3225P08 | |
| WNMG 080408 DFM TS15C | MWLNR/L 3232P08 | |
| WNMG 080412 NN PVD | DWLNR/L 2020K08 | |
| WNMG 080412 DFM TP25C | DWLNR/L 2525M08 | |
| WNMP 080408 NN PVD | DWLNR/L 3225P08 | |
| DWLNR/L 3232P08 | ||
