125 mm lathe chuck self-centering spiral | cast iron | 3-jaw | DIN 6350 - DARMET
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$175.47
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$142.66
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_304-125
Description
Features and Application:

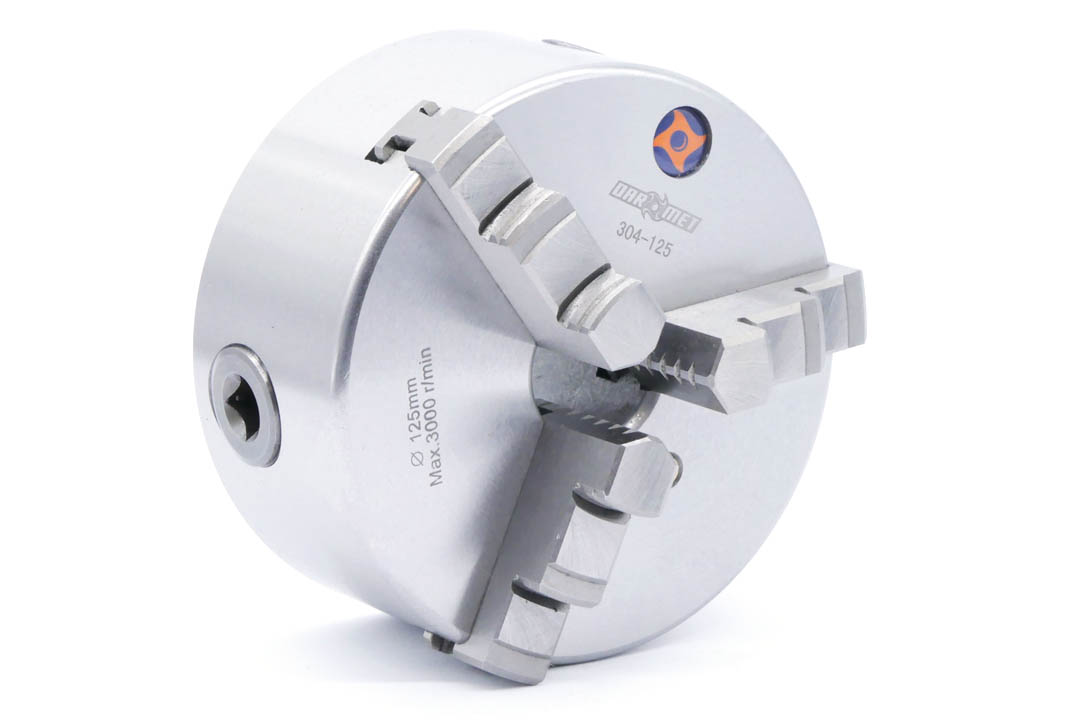

- Universal 3-jaw self-centering chuck designed for precise clamping on lathes, rotary tables, and milling machines.

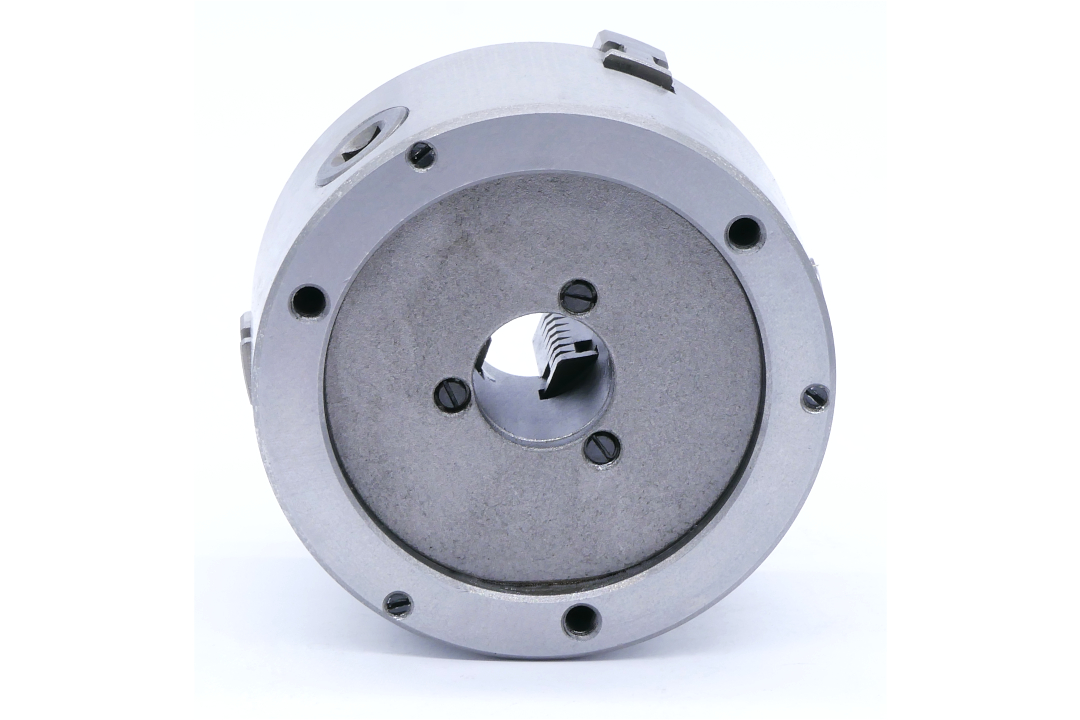

- DIN 6350 Standard: Features a plain back mounting system for easy adaptation to various machine spindles.
- Premium Cast Iron Body: Manufactured from high-quality cast iron, providing excellent rigidity and superior vibration damping.
- Precision Ground Surfaces: All working surfaces are ground to ensure a longer service life while maintaining high accuracy and repeatability.
- Adapter Plate Mounting: Designed to be mounted on the machine spindle using a dedicated back plate (adapter plate).

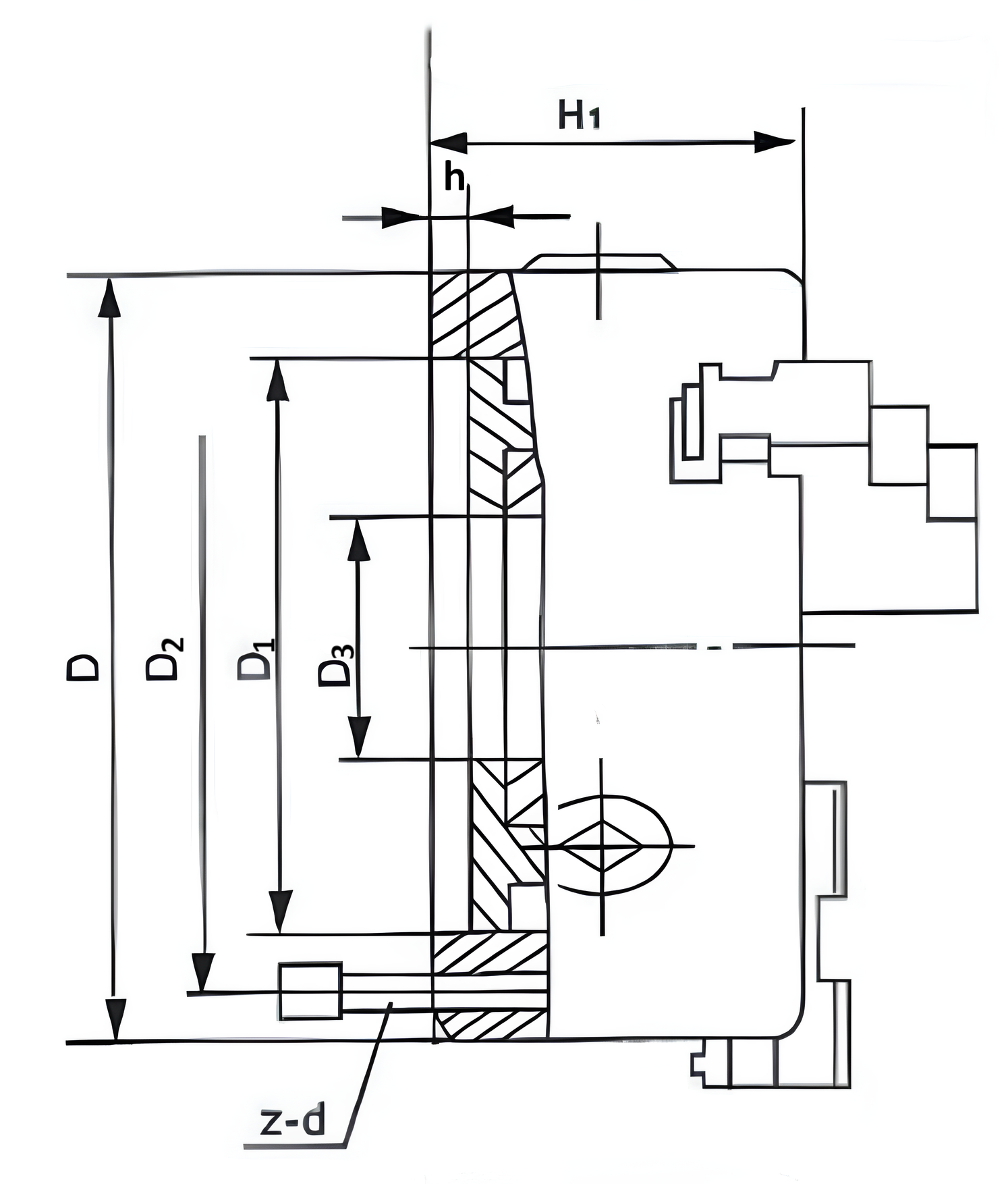

Technical Data:
| Parameter | Value |
|---|---|
| D | 125 mm |
| D1 | 95 mm |
| D2 | 108 mm |
| D3 | 30 mm |
| H1 | 58 mm |
| h | 4 mm |
| Number of bolts | 3 x M8 |
| Max. speed | 3200 RPM |
| Weight | 5.15 kg |

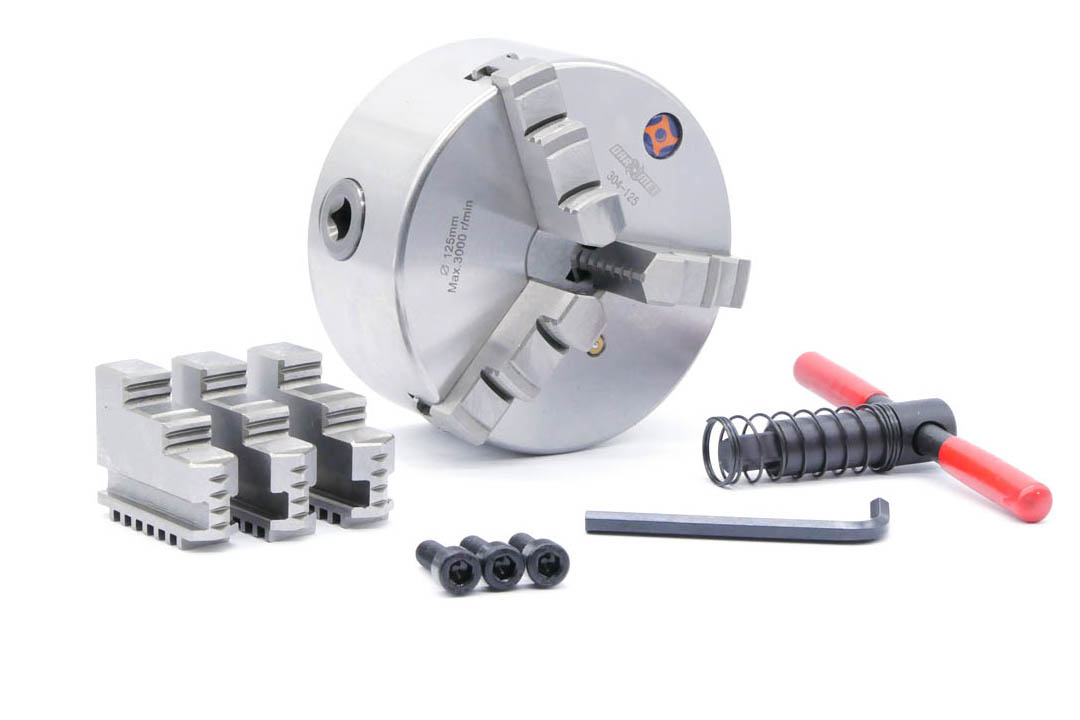

Standard Equipment:
- Lathe chuck
- Chuck key
- Set of solid outside jaws
- Set of solid inside jaws
- Mounting bolts
- User manual

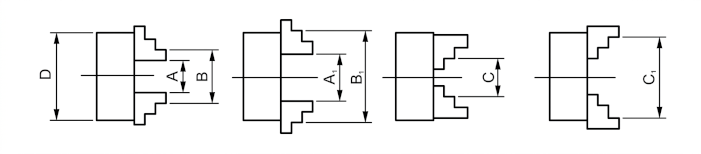

Clamping Range:
| Parameter | Value |
|---|---|
| Chuck size | 125 mm |
| Solid Jaws | |
| A - A1 | 2.5 - 40 mm |
| B - B1 | 38 - 125 mm |
| C - C1 | 38 - 110 mm |
