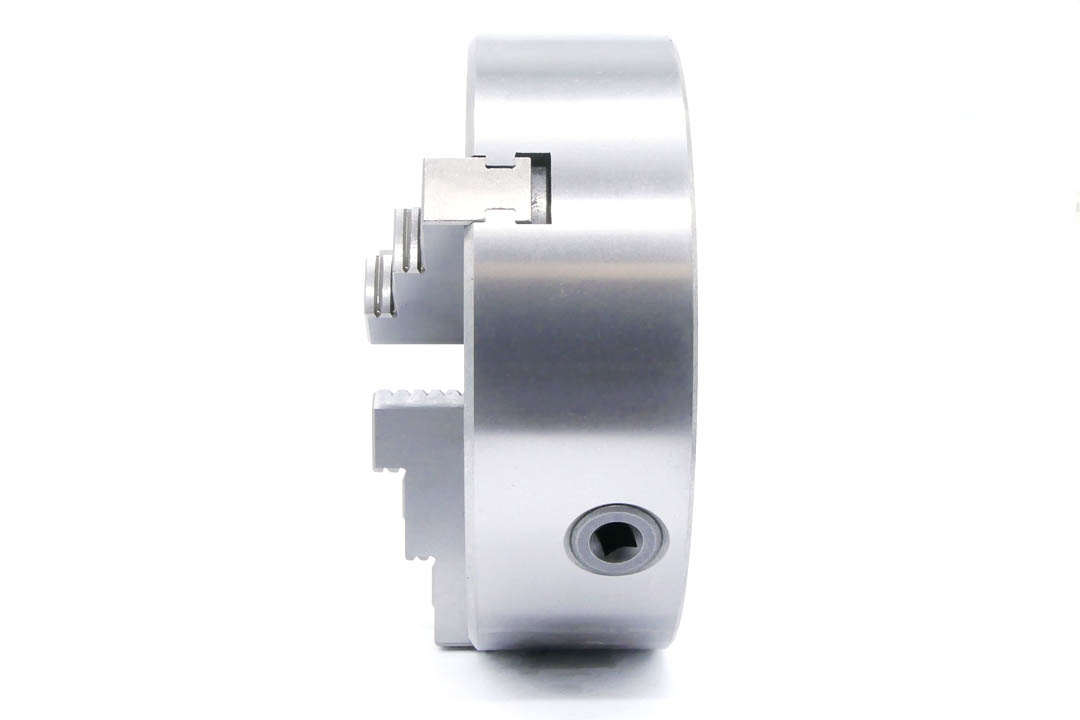

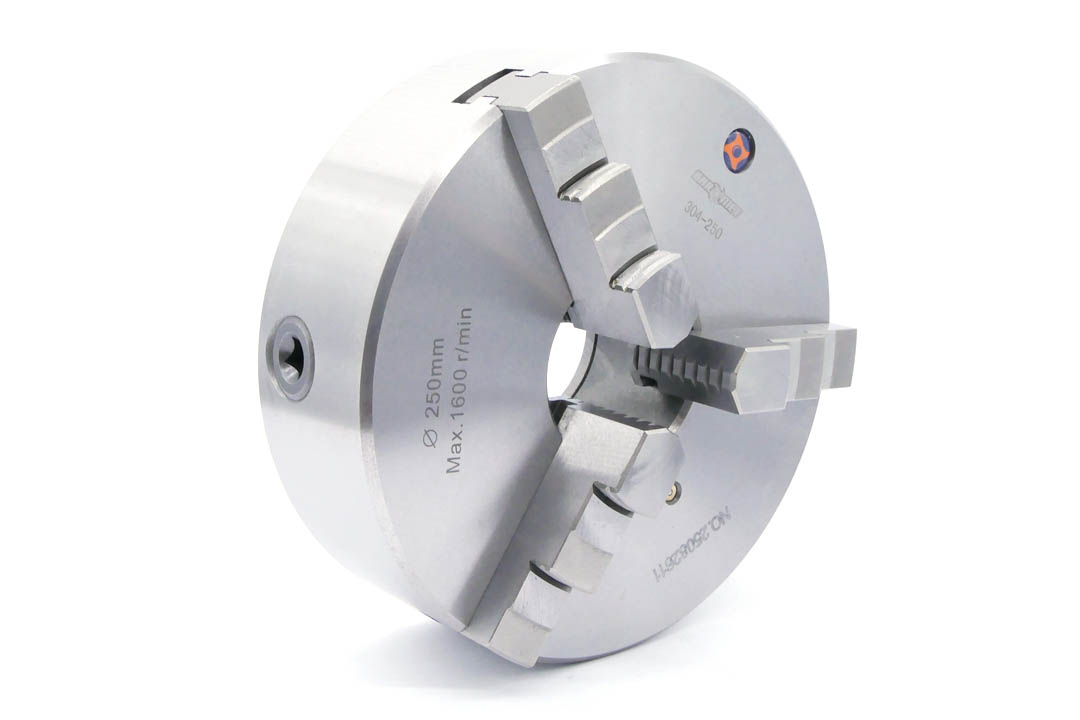

250 mm lathe chuck self-centering spiral | cast iron | 3-jaw | DIN 6350 - DARMET
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$455.54
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$370.36
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_304-250
Description
Features and Application:
- Universal 3-jaw self-centering chuck designed for mounting on lathes, rotary tables, and milling machines
- Plain back mounting DIN 6350
- Body made of high-quality cast iron
- Ground working surfaces ensure a longer service life while maintaining accuracy and repeatability

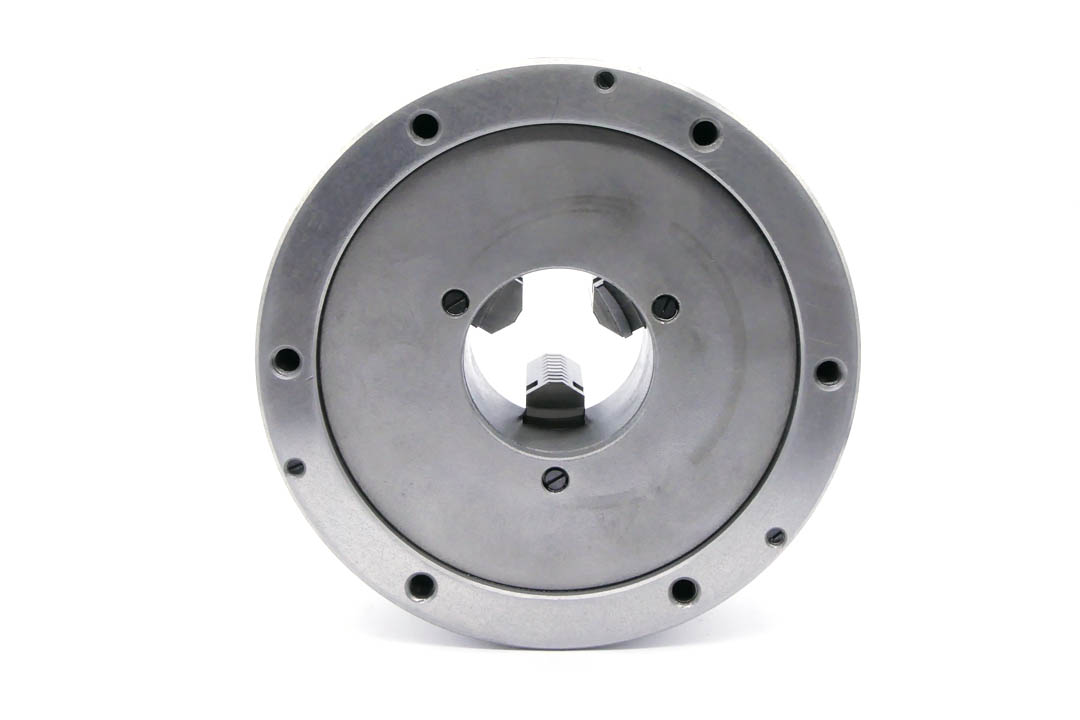

- Mounted on the machine spindle using an adapter plate on the rear part of the chuck
Technical Data:
| Parameter | Value |
|---|---|
| D | 250 mm |
| D1 | 200 mm |
| D2 | 224 mm |
| D3 | 80 mm |
| H1 | 80 mm |
| h | 5 mm |
| Number of bolts | 6 x M12 mm |
| Max. speed | 2000 RPM |
| Weight | 27,1 kg |

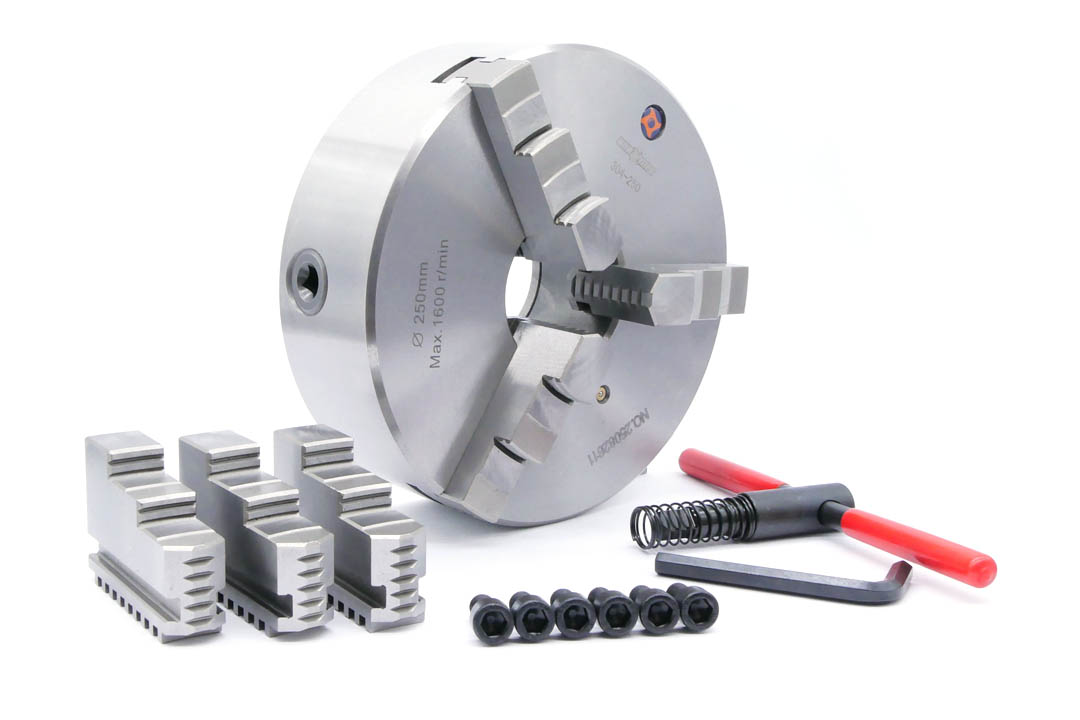

Equipment:
- chuck
- key
- set of outside jaws
- set of inside jaws
- mounting bolts
- user manual
Clamping Range:
| Parameter | Value |
|---|---|
| Chuck size | 250 |
| Solid jaws | |
| A - A1 | 6 - 110 mm |
| B - B1 | 80 - 250 mm |
| C - C1 | 90 - 250 mm |
