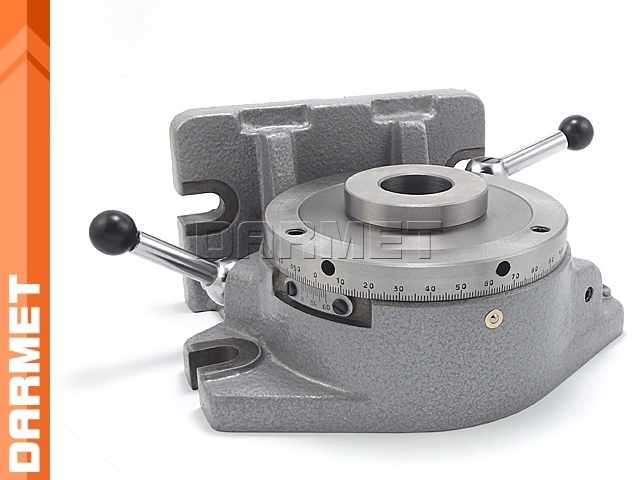

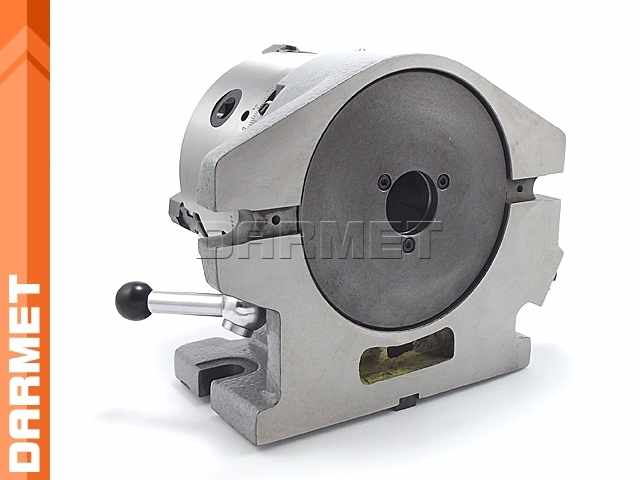

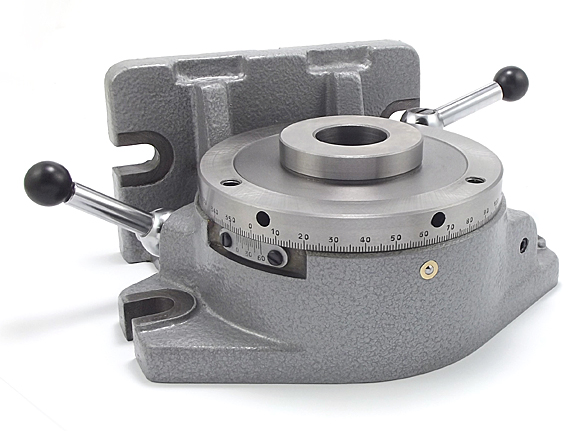

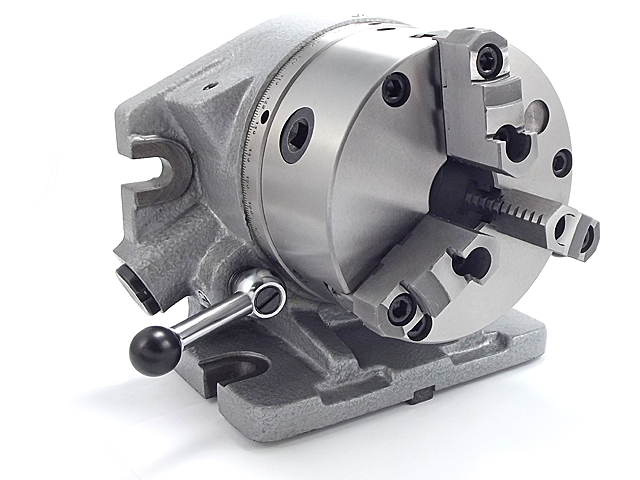

3-jaw chuck indexing device - F2-6 (DM-2734)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$1,389.49
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$1,129.66
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_URZ_2734
Description
Features and application:
- The dividing device is used when working on grinders, milling machines, drilling machines.

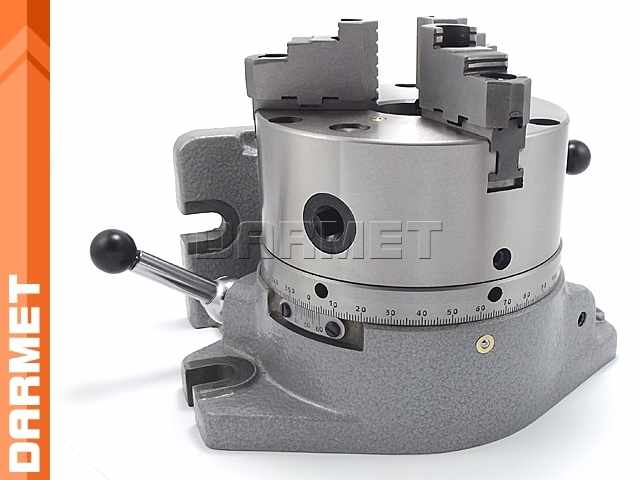

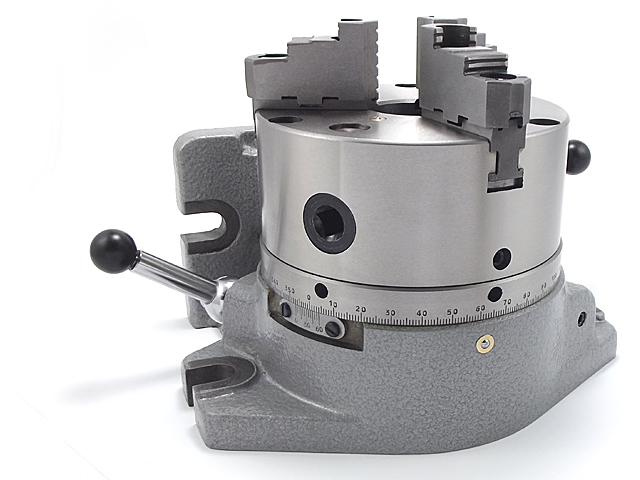

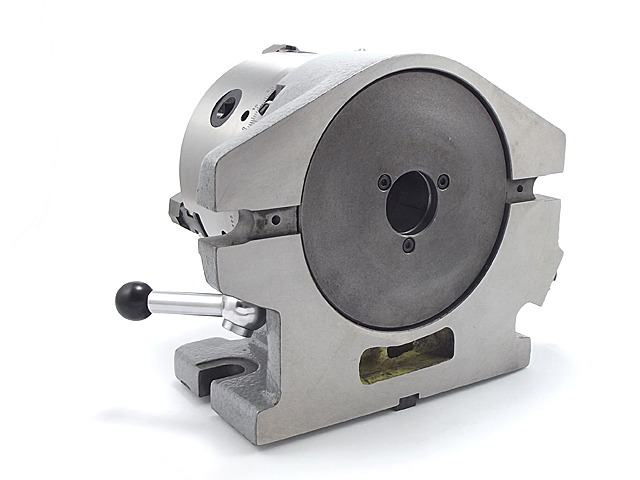

- Suitable for vertical or horizontal operation.
- Possible division into: 2, 3, 4, 6, 8, 12, 24.

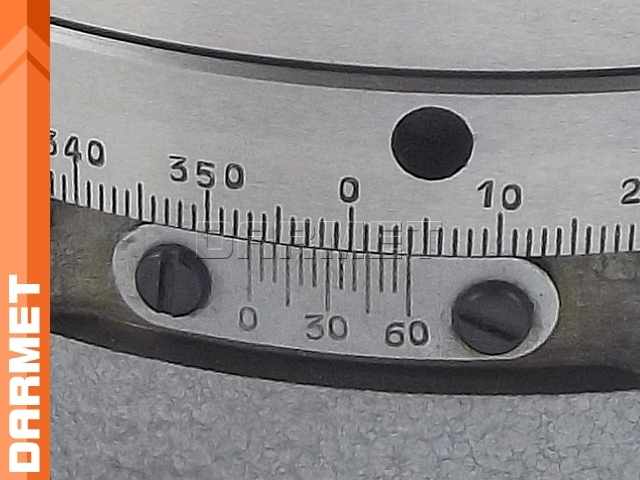

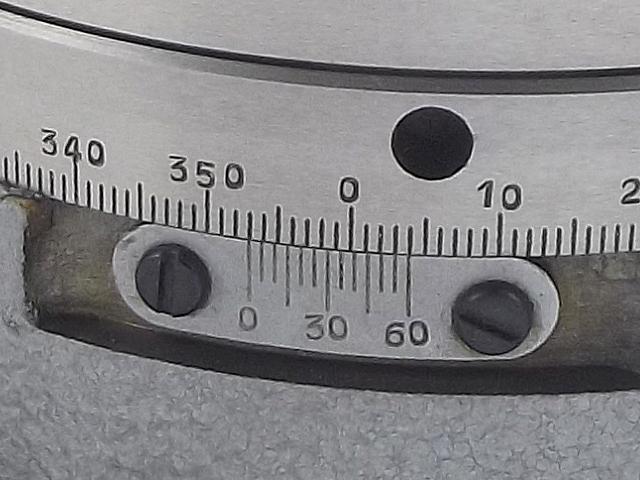

- The ring with a scale and vernier allows for obtaining any angular division.
- The vernier allows for reading with an accuracy of up to 5' (seconds).

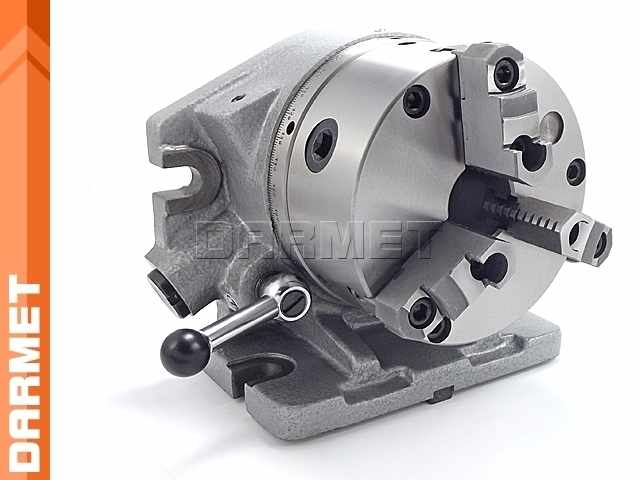

- The device is equipped with a 3-jaw chuck.

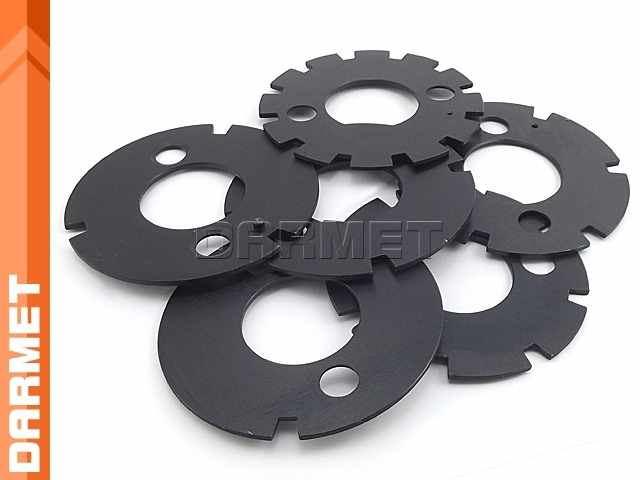

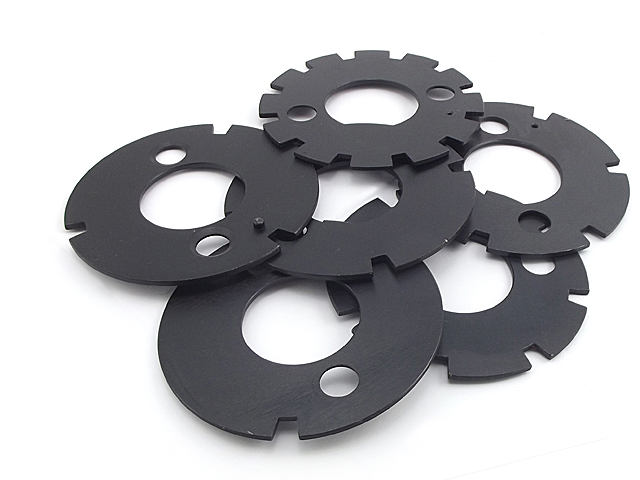

- Interchangeable dividing plates (6 pcs.)

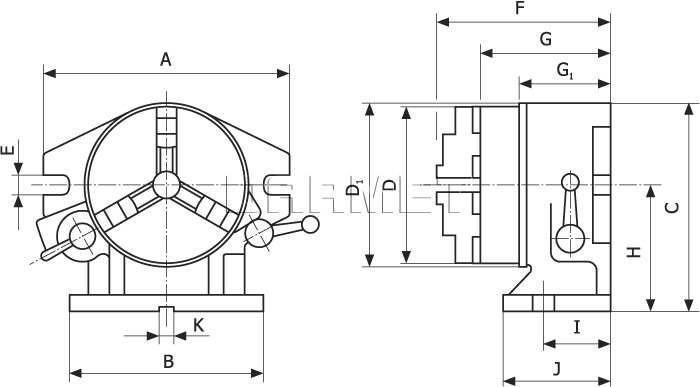

Technical data:
| Parameter | Value | Unit |
|---|---|---|
| A | 260 | mm |
| B | 220 | mm |
| C | 220 | mm |
| D | Ø167 | mm |
| D1 | Ø170 | mm |
| E | 18 | mm |
| F | 197.5 | mm |
| G | 155.5 | mm |
| G1 | 89.5 | mm |
| H | 130 | mm |
| And | 70 | mm |
| J | 130 | mm |
| K | 16 | mm |
