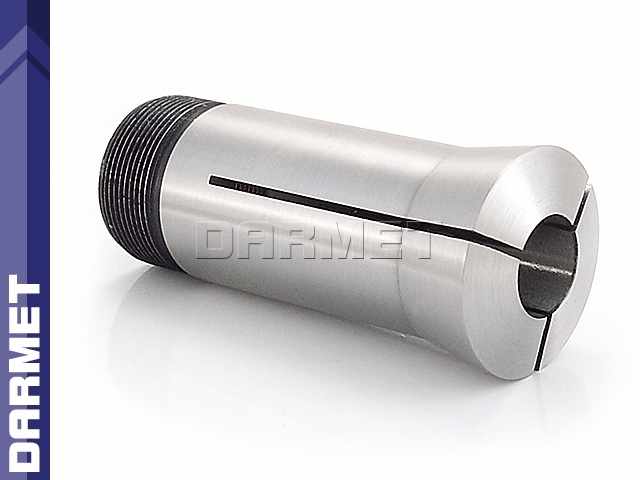

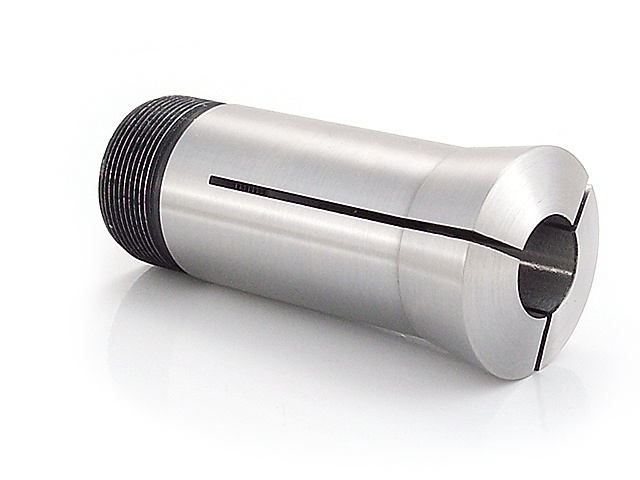

5C Clamping Sleeve - 20 mm - Round - DARMET
Regular price:
Regular price:
product unavailable
add to wish list
Description
Properties and application:
-
5C collet for tools with cylindrical shank
-
Material: 65 Mn steel
-
Hardness: clamping part - HRC 55 - 60, elastic part - HRC 40 - 45
-
Used in automatic lathes, lathes and other machines in which the spindle is adapted to mount 5C collets
-
Clamping diameter: 20mm
Technical data:
| |
Accuracy parameters:
| d [mm] | L [mm] | Runout [mm] |
|---|---|---|
| 1 - 1.6 | 6.35 | 0.013 |
| 1.6 - 3 | 12.7 | |
| 3 - 10 | 25.4 | |
| 10 - 16 | 38.1 | |
| 16 - 28 | 50.8 |
