Automatic boring head DARMET GWZA-18 - ISO50 (DIN2080) holder

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $1,619.71

incl. 23% TAX, excl. shipping costs

Regular price:

1619.71

The lowest price during 30 days prior to the reduction:

Net price: $1,316.84

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 590 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: GLO_GWZA_ISO50

Description

Information:

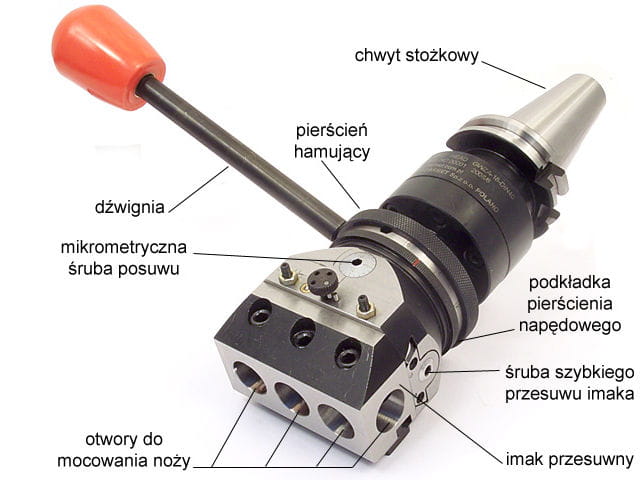

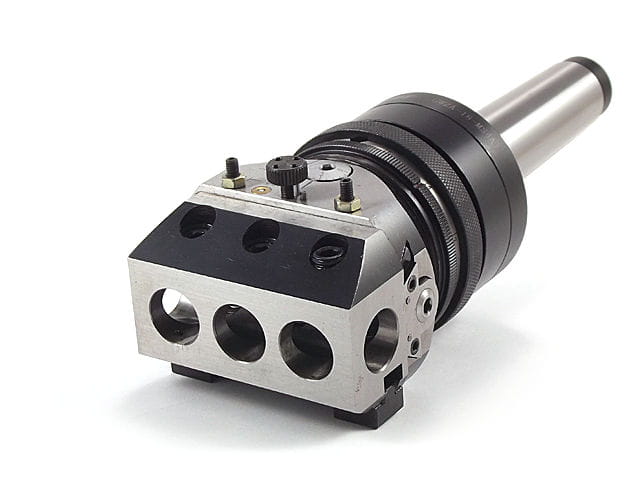

The GWZA-18 automatic boring head with an ISO50 shank for boring and facing is a tool that allows for multi-position mounting of knives and automatic feed of the tool slide, which allows for a number of diverse machining operations, such as:

boring holes in a wide range of diameters - 5-250 mm,
facing the front and rear face of the hole and turning external surfaces,
grooving,
turning internal and external surfaces by adding the feed of the machine spindle with the automatic feed of the head's tool slide,
thread cutting,
multi-tool machining.

Specification:

GWZA-18 automatic boring head - technical drawing

Parameter	Value
Boring diameter	5 - 250 mm
Shank diameter	18 mm
Slide travel	± 15 mm
Feed scale adjustment	0.005 mm
Manual inlet rotation	3 mm
Automatic inlet rotation	0.02; 0.04; 0.06 mm
Dimensions	77 x 58 x 80 mm
Weight	6.0 kg

Technical information available on the DARMET website: ISO grip (DIN2080)

Possible operations:

Processing operations possible
