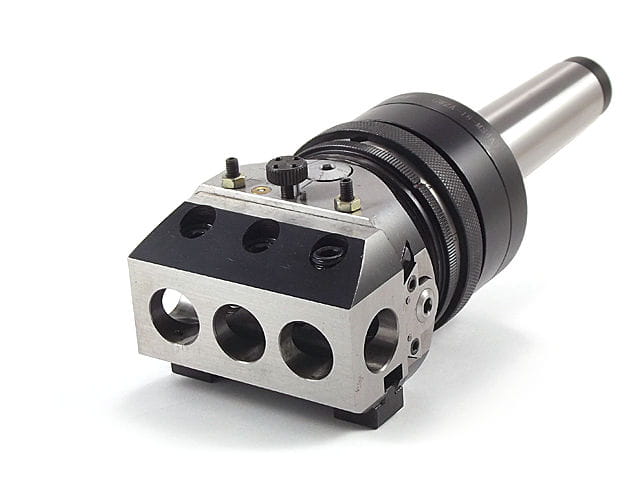

Automatic boring head DARMET GWZA-18 - Morse 3 holder

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $1,214.78

incl. 23% TAX, excl. shipping costs

Regular price:

1214.78

The lowest price during 30 days prior to the reduction:

Net price: $987.63

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 442 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: GLO_GWZA_MS3

Description

Information:

The universal automatic head for boring and facing is a tool that, thanks to the multi-position tool clamping function and automatic tool slide feed, allows for many different machining operations, such as:

boring holes in a wide range of diameters - 5-250 mm.
facing the front and rear face of the hole and turning external surfaces,
creating grooves.
turning internal and external surfaces by combining the machine spindle feed with the automatic feed of the head's tool slide.
thread cutting.
performing multi-tool machining.

Specification:

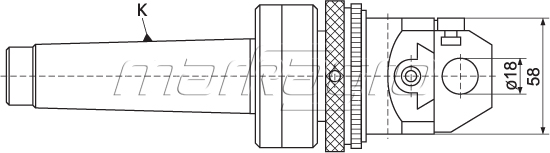

GWZA-18 automatic boring head - Morse 3 shank

Parameter	Value
Boring diameter	5 - 250 mm
Shaft diameter	18 mm
Slide travel	± 15 mm
Feed scale adjustment	0.005 mm
Manual feed rotation	3 mm
Automatic Inflow Turnover	0.02; 0.04; 0.06 mm
Dimensions	84 x 58 x 80 mm

Technical information on the DARMET website: Morse shank (DIN228)

Possible operations:

Operations possible on GWZA-18
