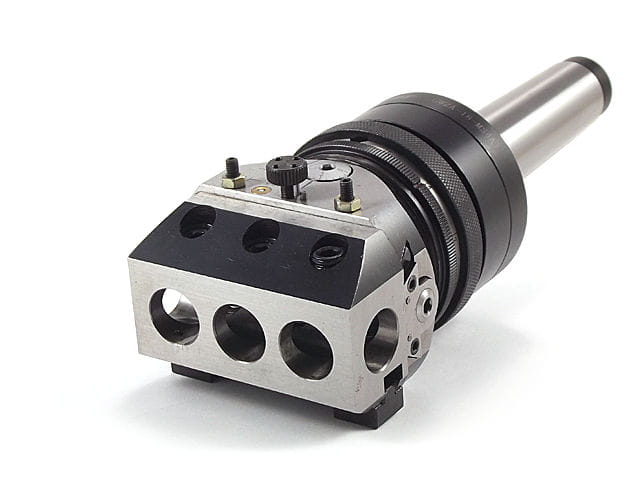

Automatic boring head DARMET GWZA-18 - Morse 4 holder

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $1,231.65

incl. 23% TAX, excl. shipping costs

Regular price:

1231.65

The lowest price during 30 days prior to the reduction:

Net price: $1,001.34

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 448 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: GLO_GWZA_MS4

Description

Information:

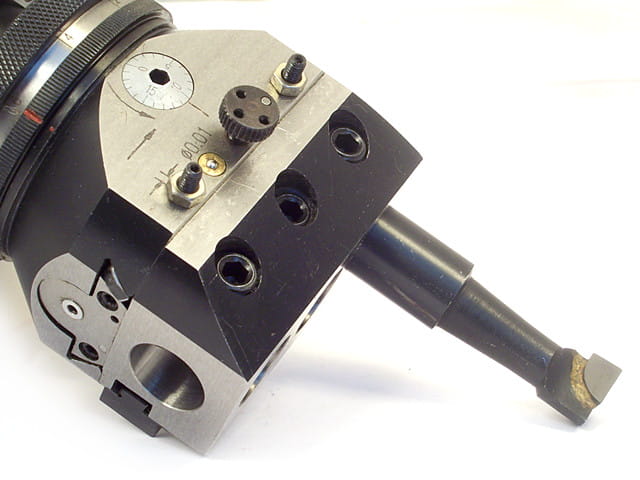

The DARMET GWZA-18 automatic universal boring head with Morse 4 chuck is used for boring and facing. This advanced tool, thanks to the multi-position tool clamping function and automatic tool slide feed, allows for various machining operations, such as:

boring holes in a wide range of diameters - 5-250 mm.
facing the front and rear face of the hole and turning external surfaces.
creating grooves.
turning internal and external surfaces by combining the machine spindle feed with the automatic feed of the head's tool slide.
thread cutting.
performing multi-tool machining.

Specification:

GWZA-18 Automatic Boring Head - Morse Shank 4

Parameter	Value
Boring diameter	5 - 250 mm
Shank diameter	18 mm
Slide travel	± 15 mm
Infeed scale adjustment	0.005 mm
Manual infeed rotation	3 mm
Automatic infeed rotation	0.02; 0.04; 0.06 mm
Dimensions	84 x 58 x 80 mm

Technical information available on the DARMET website: Morse shank (DIN228)

Possible operations:

Operations possible to perform using the GWZA-18 boring head
