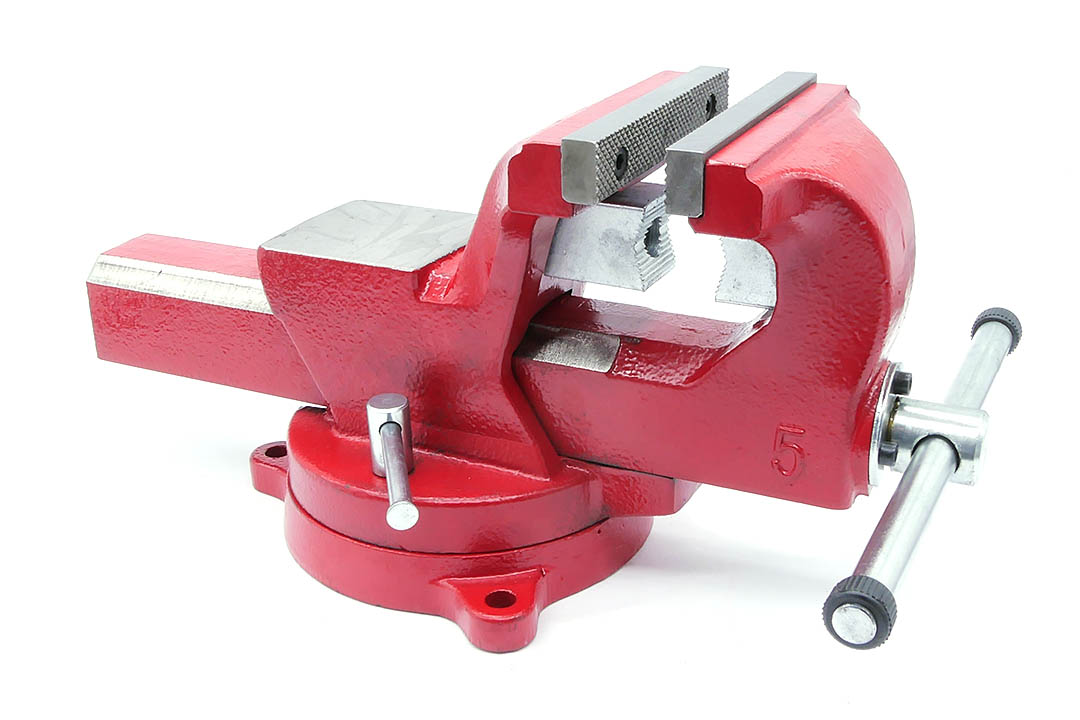

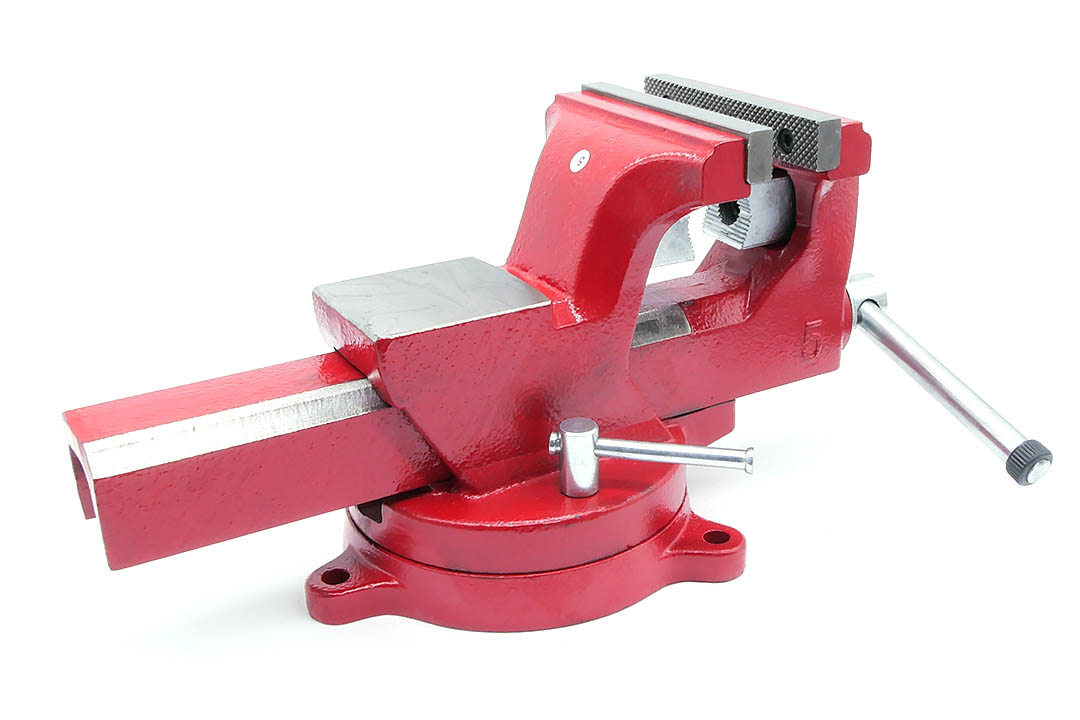

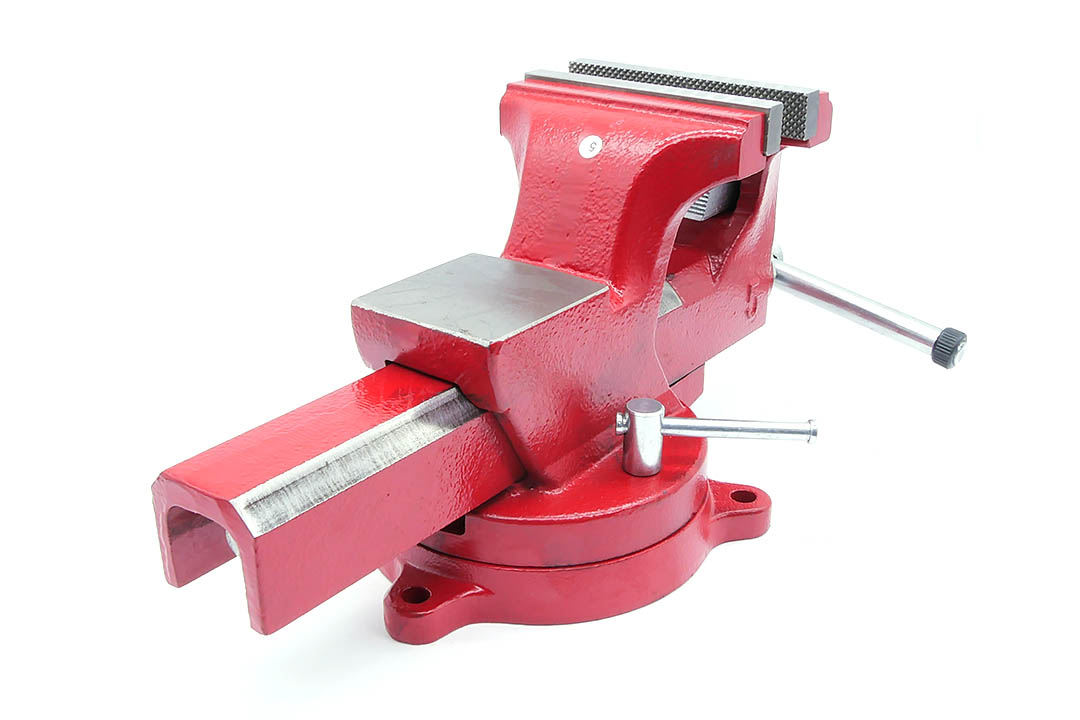

Bench Vise | 125 mm Serrated Jaws | with Anvil and 360° Swivel Base - FORWARD FSV05

Features and Application

• Ductile Iron Construction: The high-performance FSV05 vise is cast from top-grade ductile iron, guaranteeing uncompromising resistance to cracking and mechanical overload. With specifications including 896 MPa tensile strength and a clamping force of 2800 daN, this unit is built for the most demanding industrial processes. For lighter workshop applications, the cost-effective model 30505 (414 MPa) remains an excellent alternative.
• Integrated Gripping Zones: The tool offers high versatility through the use of replaceable jaw inserts:
  • Flat Jaws: Made of hardened steel, serrated and corrosion-protected, ensuring consistent stability of the workpiece.
  • Pipe Jaws: Located below the main jaws, these allow for the secure immobilization of pipes, shafts, and rods without the risk of rotation.
• Superior Guidance and Control: The design features an adjustable guide rail system. Using two dedicated adjustment screws, the user can eliminate lateral play, ensuring perfect axial alignment and smooth travel even after years of intensive use.

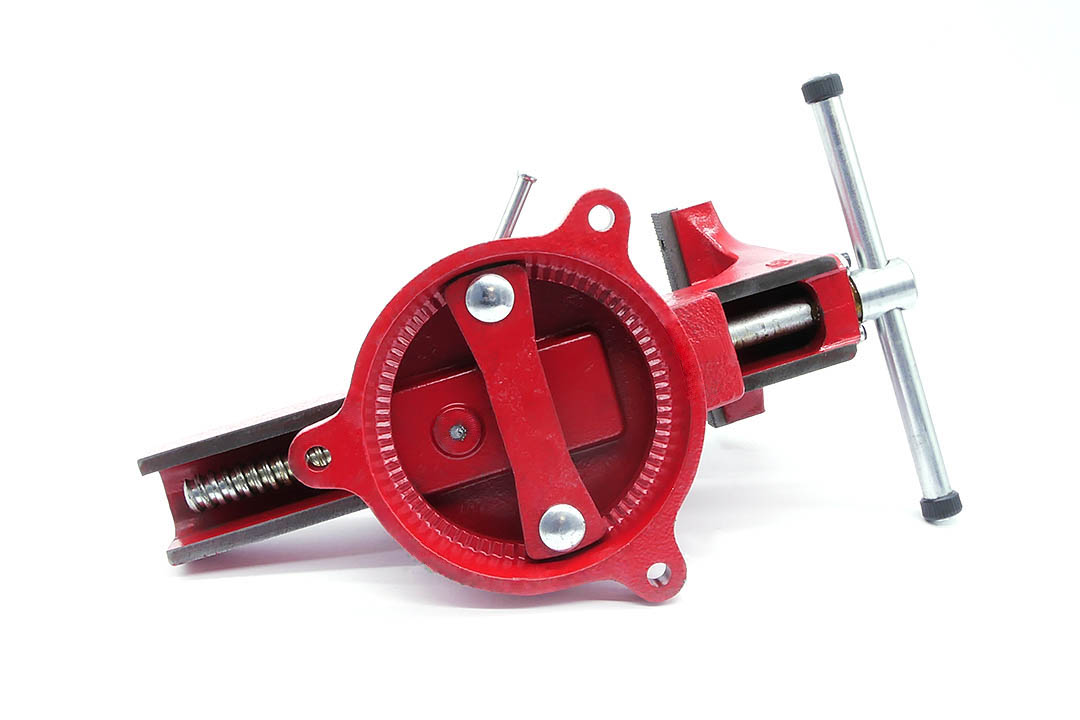

• 360° Swivel Base with Lock: The serrated rotation mechanism with two locking levers allows for near-instant adjustment of the vise position to suit the operator's needs and ensures stable attachment to the workbench.
• Reinforced Anvil: The wide, hardened work surface provides solid support for hammering, straightening, or cold-forming workpieces directly on the vise.
• Ergonomics and Durability: A massive lead screw with a comfortable handle generates high clamping force with minimal physical effort, while the galvanized finish of the gripping elements enhances both aesthetics and durability.
• Indispensable for advanced locksmithing, pipework, and threaded component assembly in professional service centers and home garages. To protect delicate surfaces from jaw serrations, we recommend optional magnetic TPU jaw pads. Their design allows for instant mounting and effective protection of the workpiece against scratching.
• 360° Swivel Base with Serrations: Equipped with a dual locking mechanism and mounting holes, it allows for free angle adjustment and permanent, secure fastening to the workbench.
• Large Anvil Surface: The integrated flat work area enables additional workshop operations such as forging, straightening, or profiling components.
• Ergonomic construction and a precision-crafted handle translate to high user comfort and secure clamping of processed items.
• Dedicated to advanced metalworking, pipe repairs, and assembly tasks. When processing materials prone to scratching, the use of magnetic TPU pads is recommended. They protect the material from serration marks, combining the convenience of magnetic attachment with the durability of polyurethane.

Technical Data
