Bench drill vise 100 mm - WQ100 DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$34.52
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$28.07
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_WQ_100_75
Description
Information:
- Bench drill vise made of cast iron.
- Steel screw with trapezoidal thread firmly holds the position of the movable jaw.

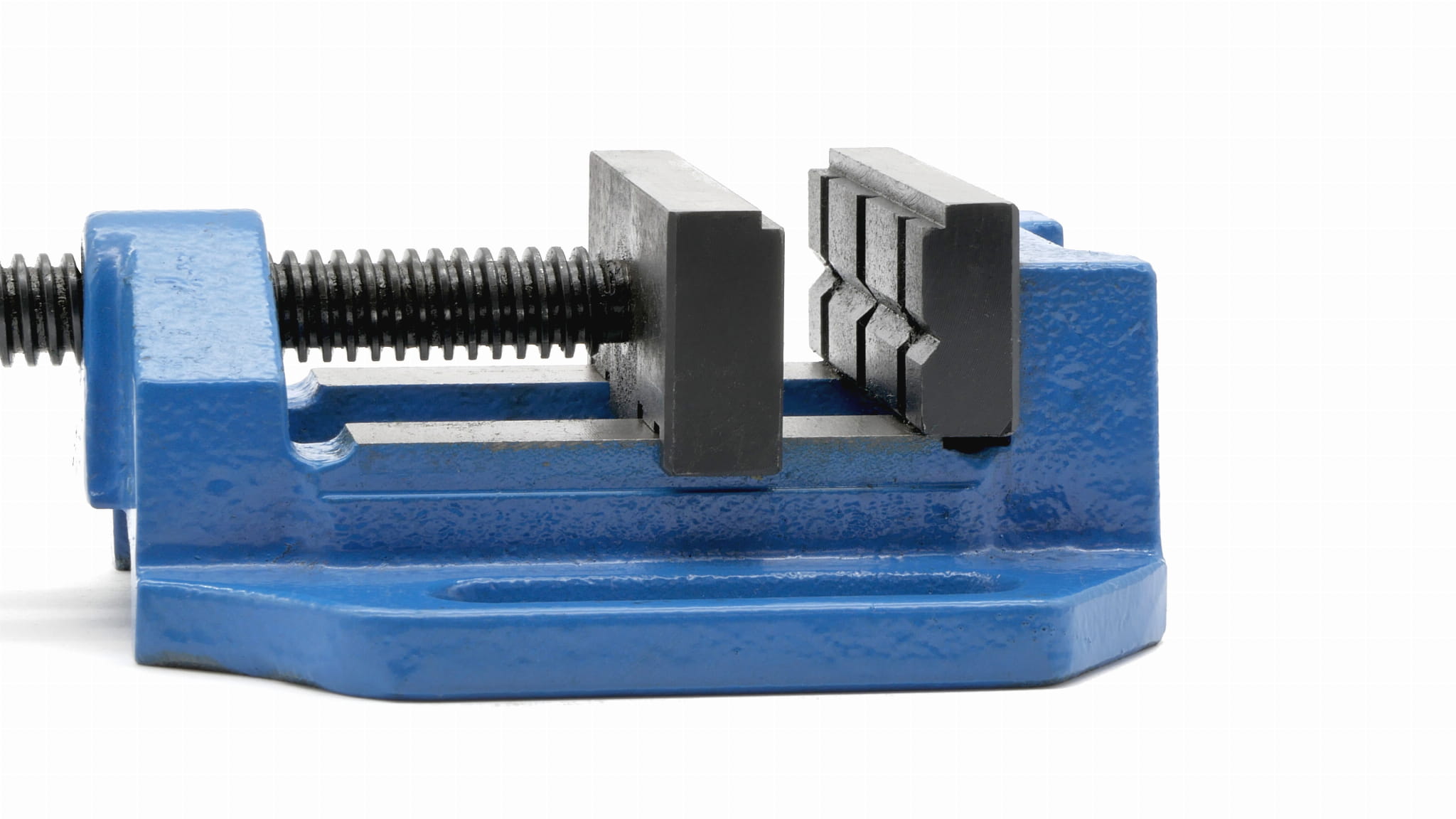

- Replaceable jaw inserts with a prism and on both sides with a step provide versatility for the tool, as we can additionally clamp pipes, shafts, as well as flat elements.

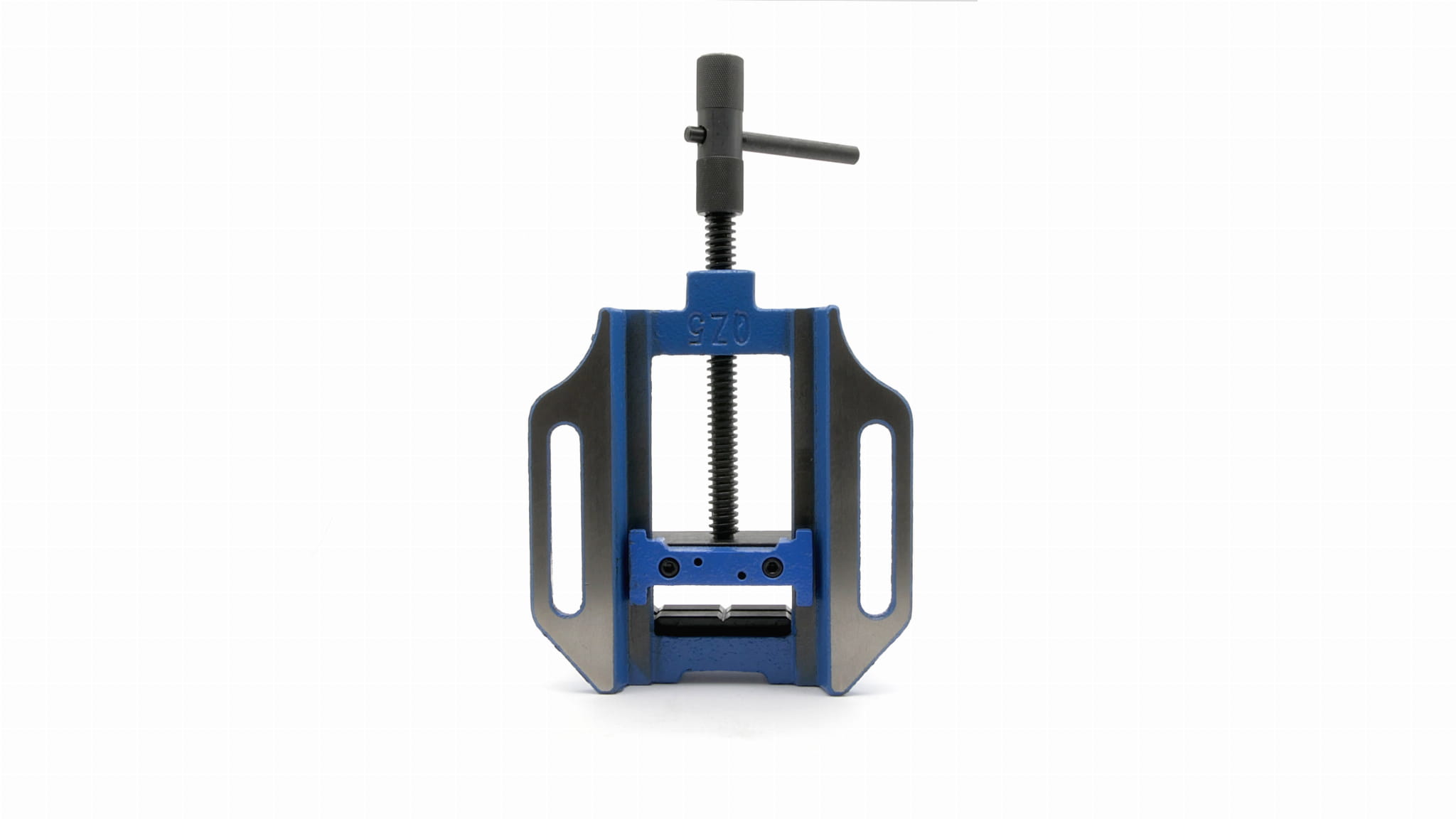

- Longitudinal mounting holes allow a very wide range of position adjustment for the vise already mounted on the worktable using, for example, T-slot screws.
- This type of machine vise is used on column drills or during light machining on a milling machine.
- The flat design is an advantage for limited workspace in vertical machines.

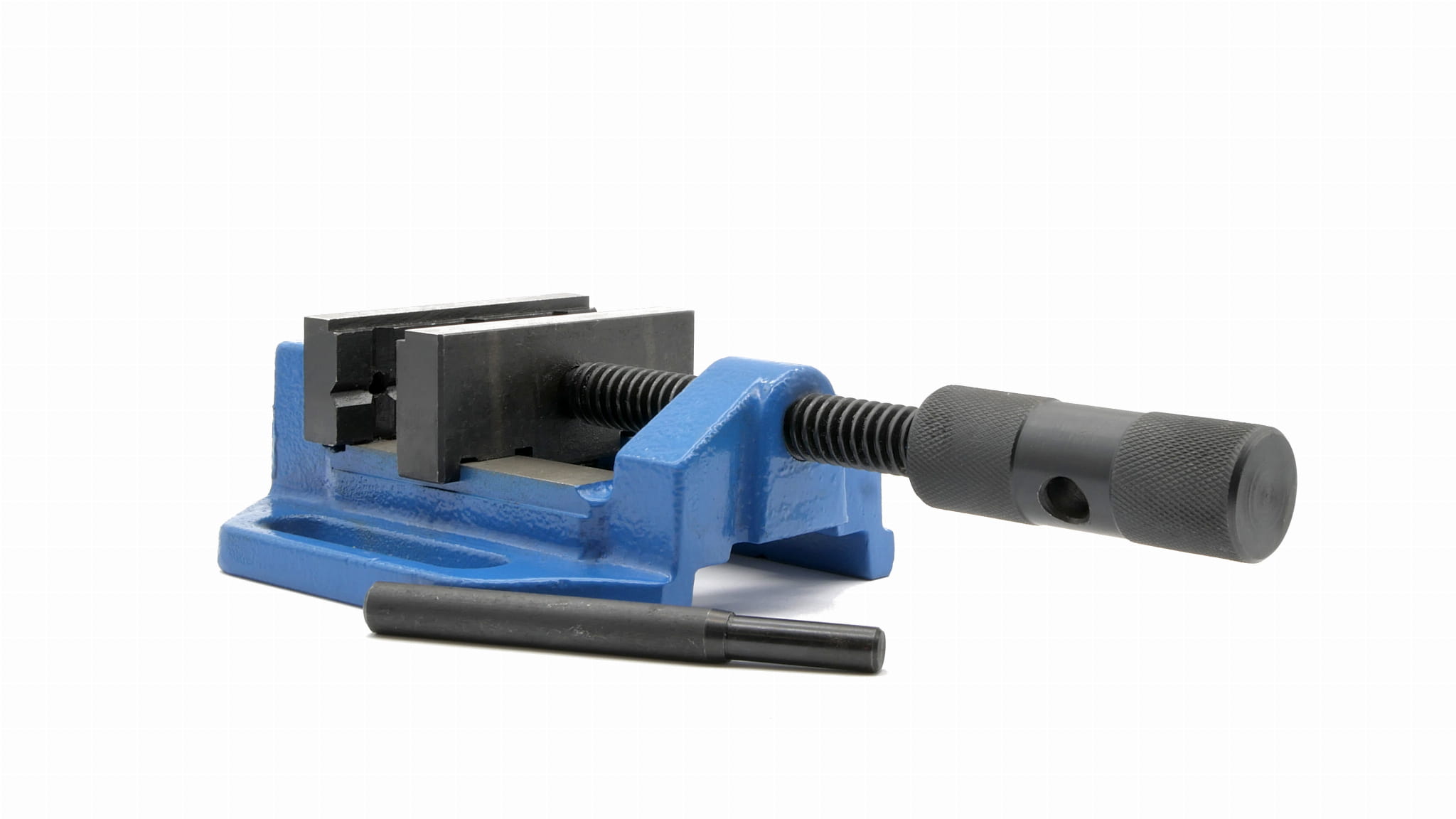

- Knurled handle also has an additional hole for a pin to allow tightening the draw screw with greater force.
- The pad on the bottom of the bed is adjustable so that the operator can independently determine the jaw clearance and thus its freer or more controlled feed.

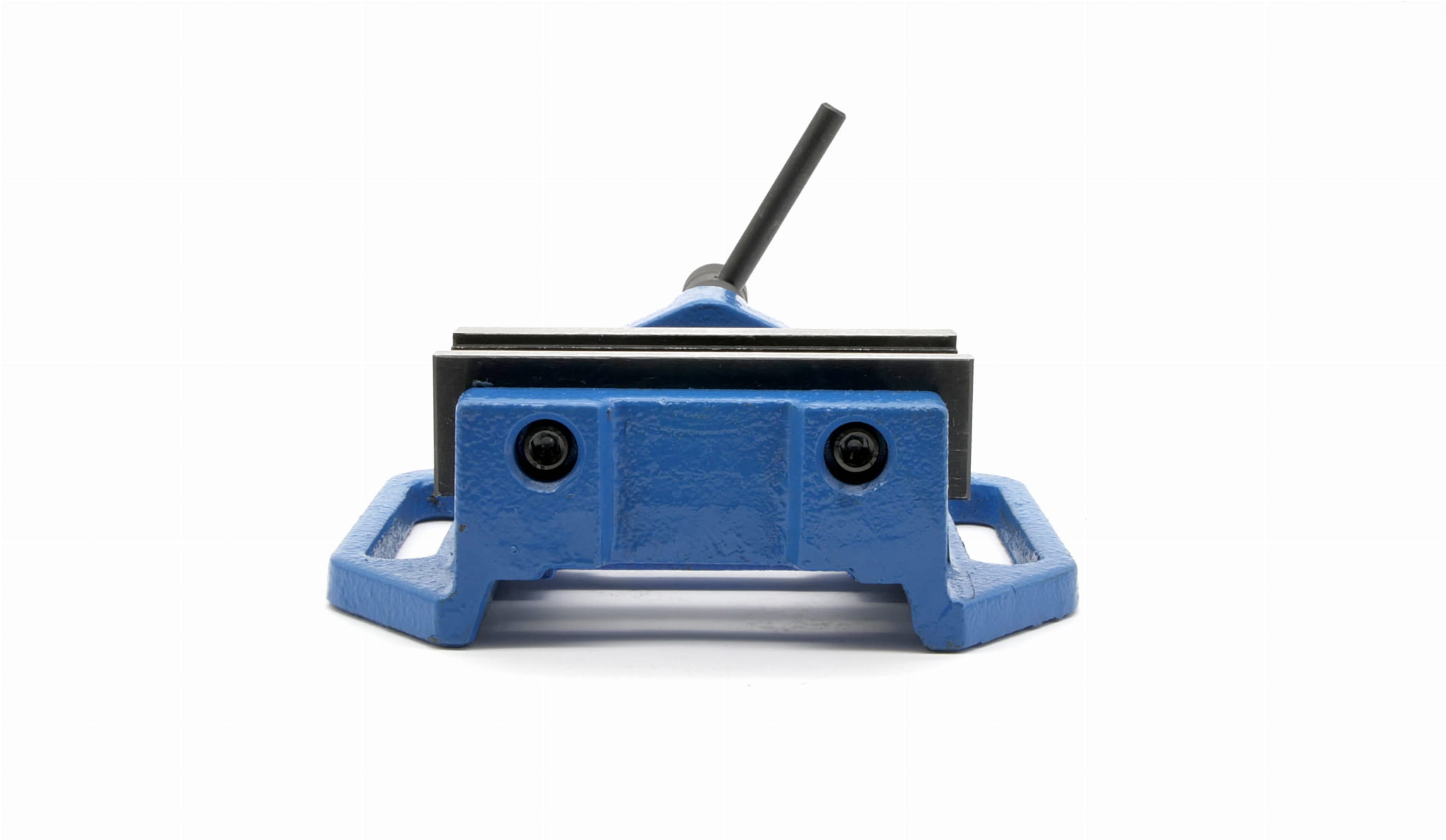

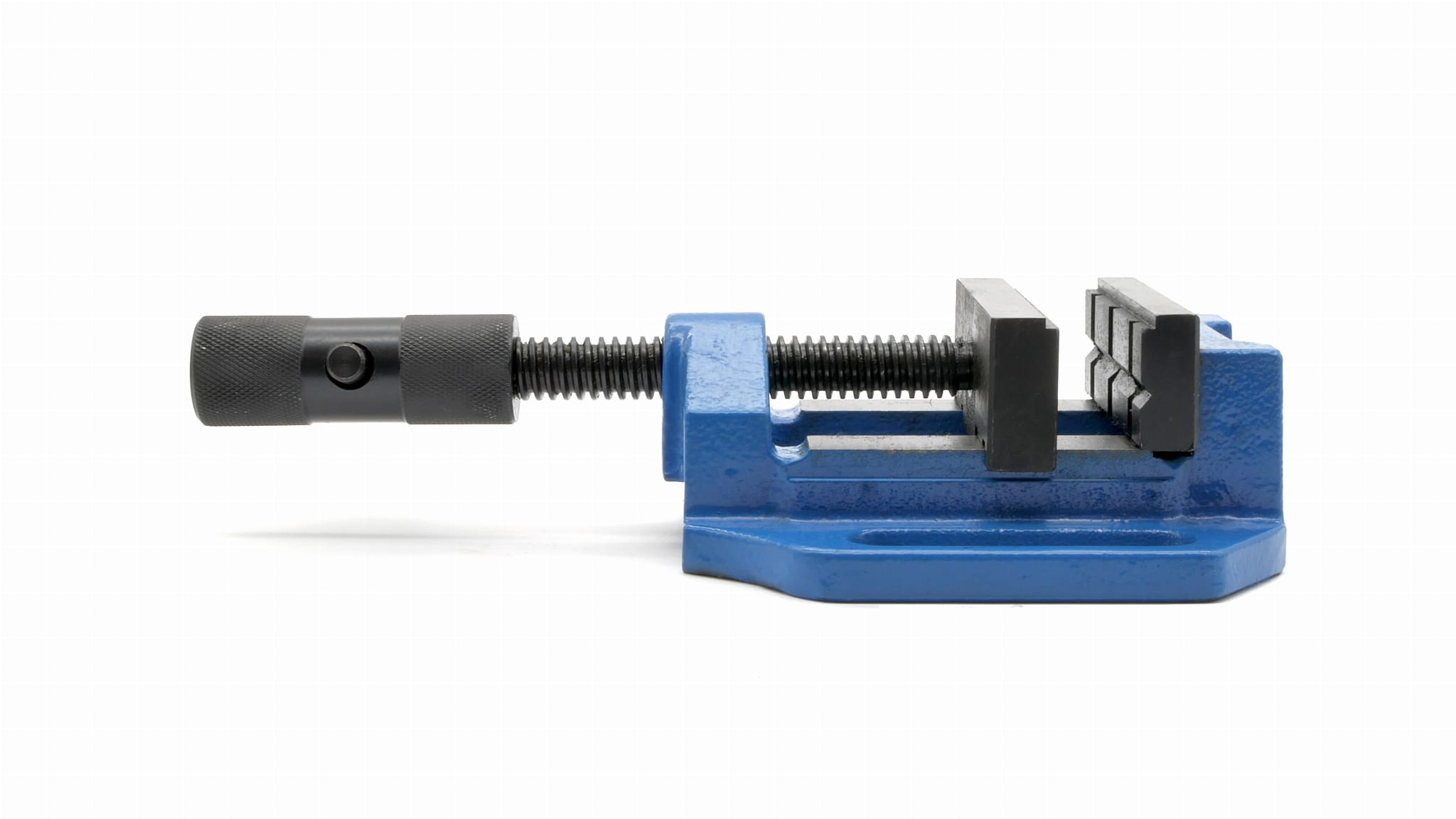

360° Presentation of the Vise around its Axis
Technical Specification:
| Parameter | Value |
|---|---|
| S: jaw width | 100 mm |
| a: clamping range | 90 mm |
| h: jaw height | 27 mm |
| H: total height | 57 mm |
| A: total width | 163 mm |
| L1: length without handle | 175 mm |
| Lmin: length of the vise with closed jaw | 256 mm |
| D: hole width | 14 mm |
| k: hole spacing for mounting | 128 mm |
| Weight | 3.1 kg |
