Bench drill vise 150 mm - WQ150 DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$54.97
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$44.69
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_WQ_150_125
Description
Information:
- Bench drill vise made of high-quality cast iron.
- Steel screw with trapezoidal thread firmly holds the position of the movable jaw.
- Replaceable jaw inserts with a prism and on both sides with a step provide versatility for the tool, as we can additionally clamp pipes, shafts, as well as flat elements.
- Longitudinal mounting holes allow a very wide range of position adjustment for the vise already mounted on the worktable using, for example, T-slot screws.
- This type of machine vise is used on column drills, or during light machining on a milling machine.
- The flat design is an advantage for limited workspace in vertical machines.
- Knurled handle also has an additional hole for a pin to allow tightening the draw screw with greater force.
- The pad on the bottom of the bed is adjustable so the operator can independently determine jaw clearance and thus its freer or more controlled feed.

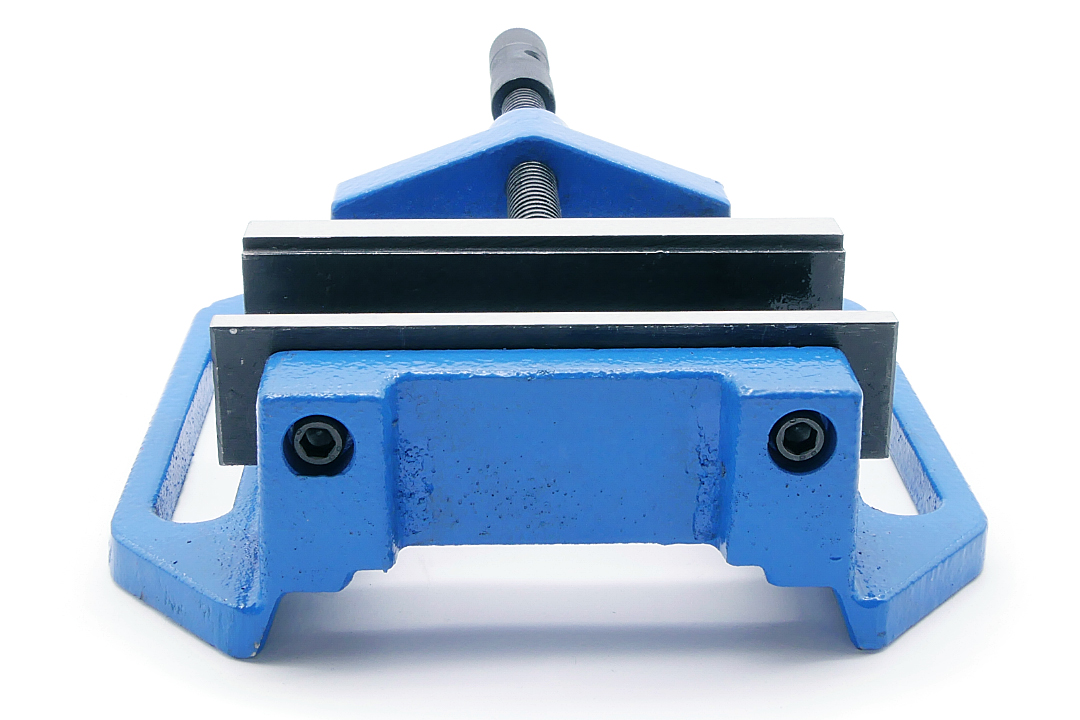

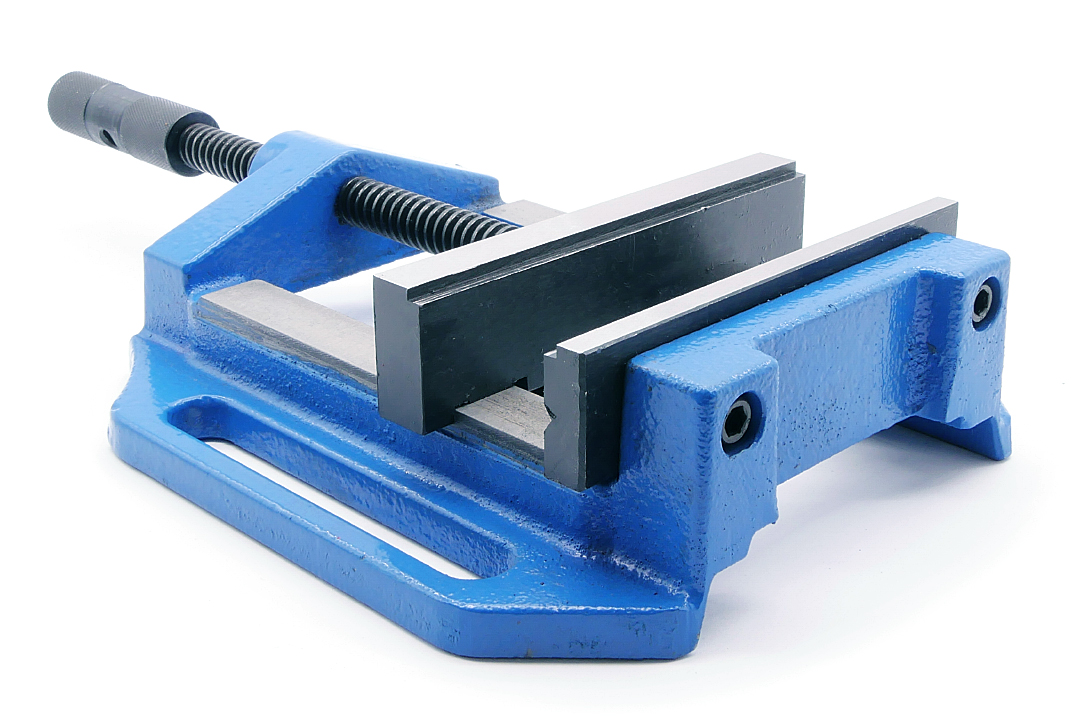

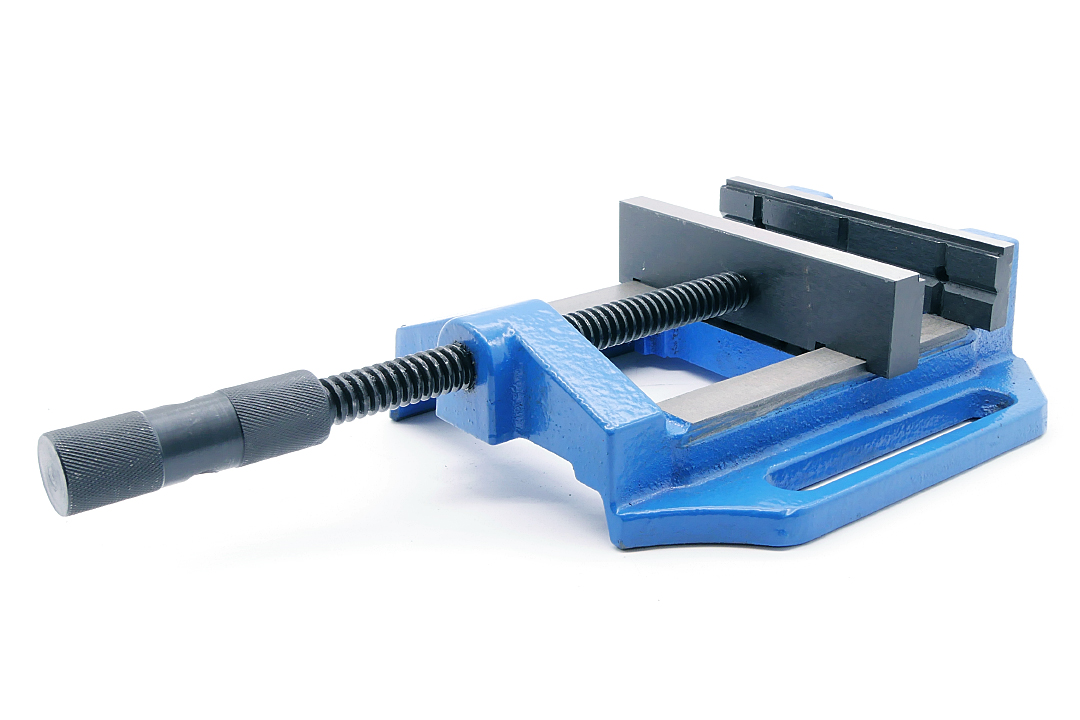

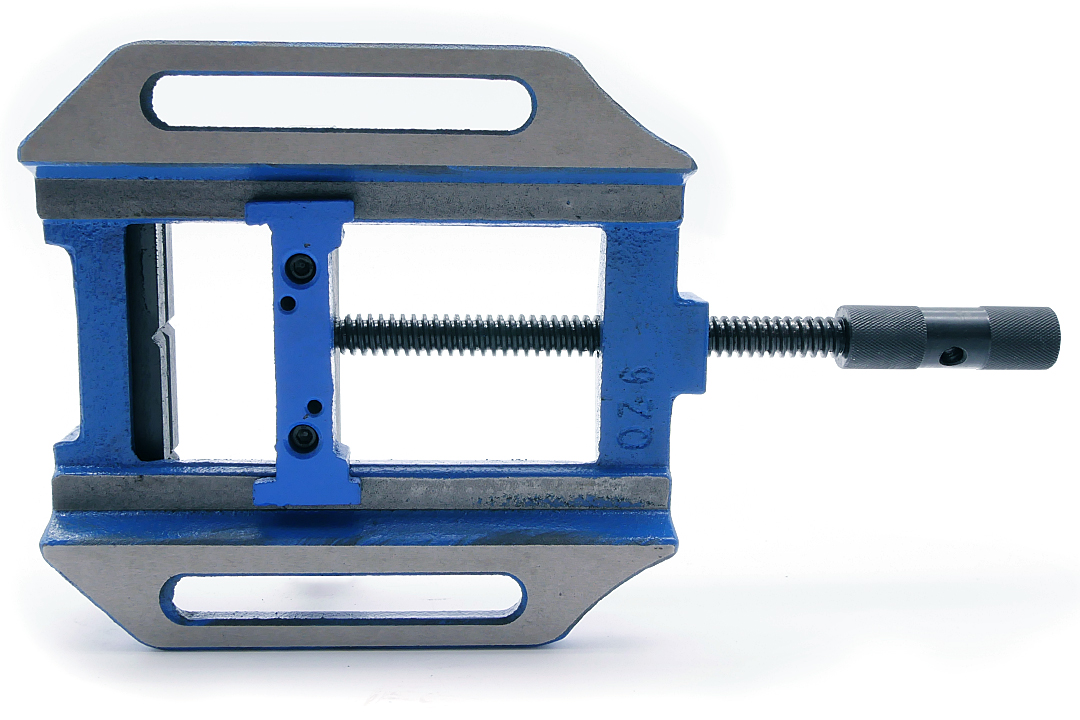

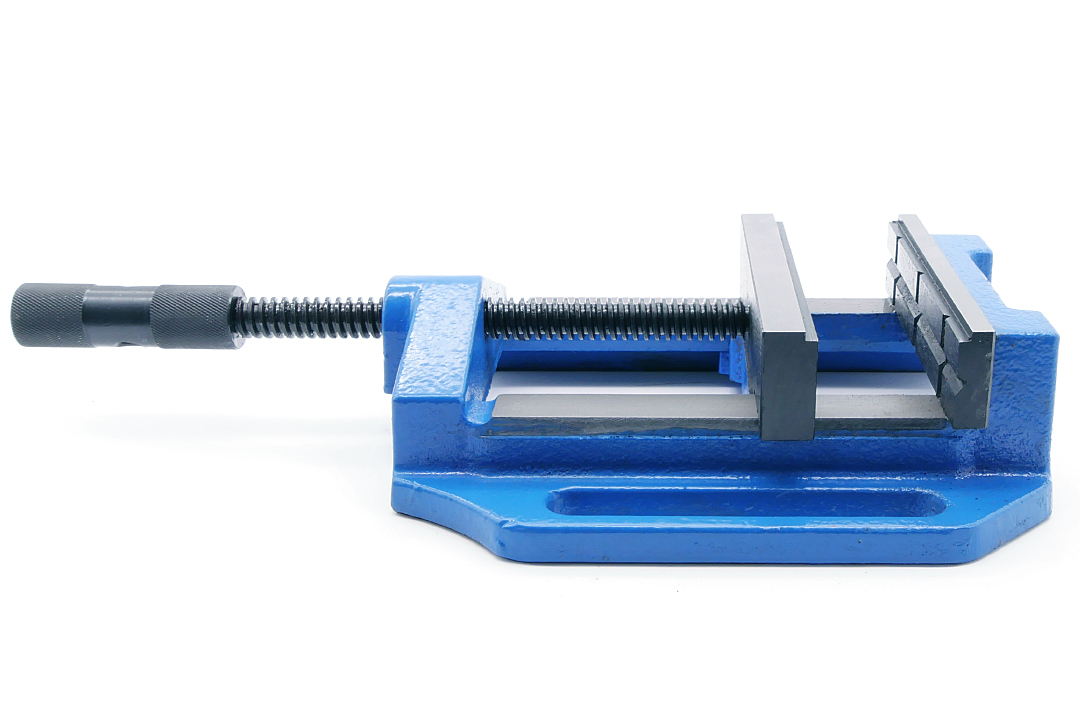

360° Presentation of the Vise around its Axis
Specification:
| Parameter | Value |
|---|---|
| S: jaw width | 150 mm |
| a: clamping range | 140 mm |
| h: jaw height | 33 mm |
| H: total height | 65 mm |
| A: total width | 213 mm |
| L1: length without handle | 233 mm |
| Lmin: length of the vise with closed jaw | 324 mm |
| D: hole width | 16 mm |
| k: hole spacing for mounting | 174 mm |
| Weight | 7 kg |
