Bench drill vise 200 mm - WQ200 DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$94.86
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$77.12
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_WQ_200_175
Description
Information:

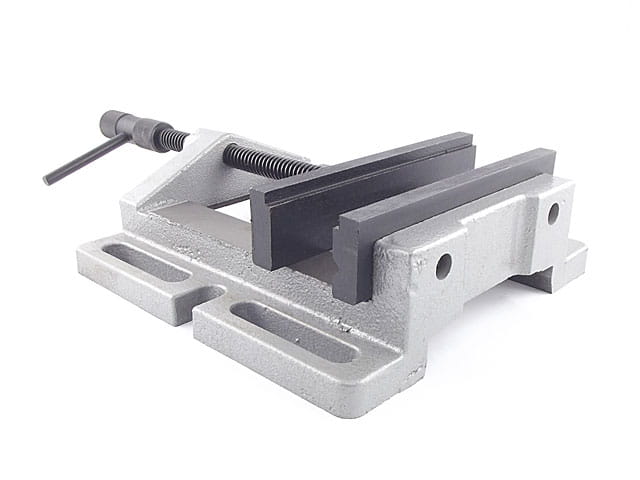

- WQ200 bench drill vise made of high-quality cast iron.
- Steel screw with trapezoidal thread firmly holds the position of the movable jaw.

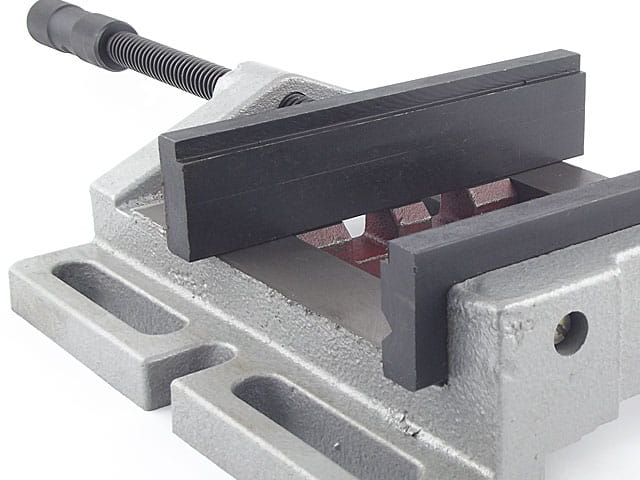

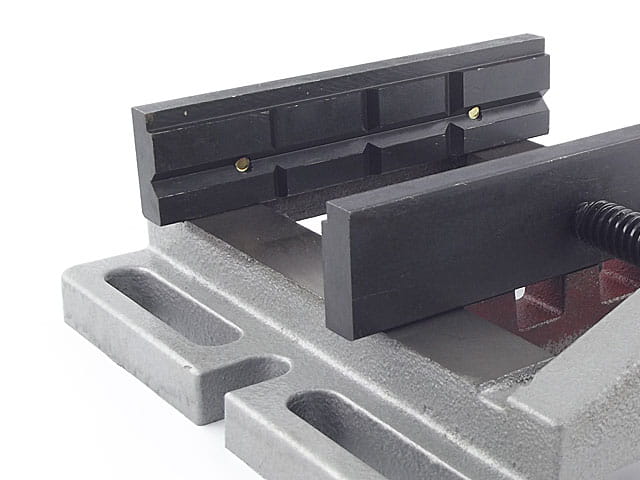

- Replaceable jaw inserts 200 mm wide with a prism and on both sides with a step provide versatility for the tool, as we can additionally clamp pipes, shafts, as well as flat elements.
- Longitudinal mounting holes allow a very wide range of position adjustment for the vise already mounted on the worktable using, for example, T-slot screws.
- This type of machine vise is used on column drills, or during light machining on a milling machine.
- The flat design is an advantage for limited workspace in vertical machines.
- Knurled handle also has an additional hole for a pin to allow tightening the draw screw with greater force.
- The pad on the bottom of the bed is adjustable so the operator can independently determine jaw clearance and thus its freer or more controlled feed.
360° Presentation of the Vise around its Axis

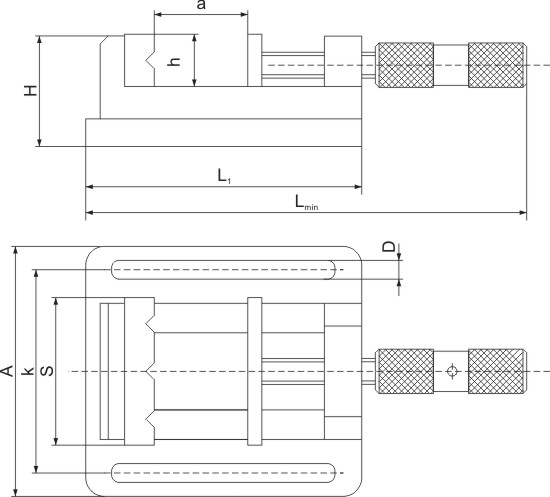

Specification:
| Parameter | Value |
|---|---|
| S: jaw width | 200 mm |
| a: clamping range | 195 mm |
| h: jaw height | 40 mm |
| H: total height | 70 mm |
| A: total width | 252 mm |
| L1: length without handle | 308 mm |
| Lmin: length of the vise with closed jaw | 394 mm |
| D: hole width | 15 mm |
| k: hole spacing for mounting | 211 mm |
| Weight | 11.5 kg |
