Bench drill vise 80 mm - WQ80 DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$27.82
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$22.62
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_WQ_80_65
Description
Information:
- Drill press vise made of cast iron.
- Steel screw with trapezoidal thread stably holds the position of the movable jaw.

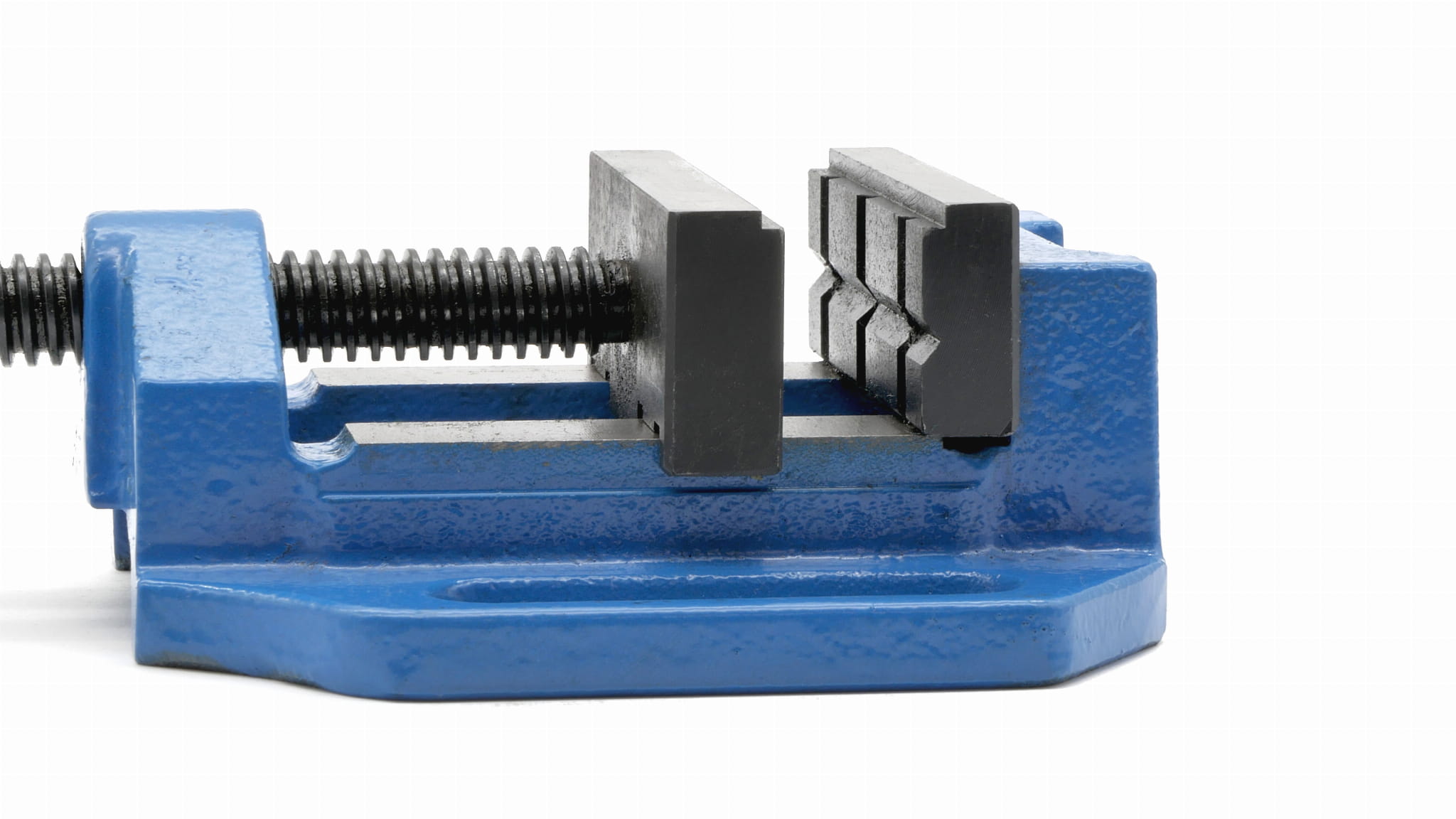

- Replaceable jaw inserts with a width of 80 mm with a prism and, on both sides, with a step, provide versatility for the tool, as we can additionally clamp pipes, shafts, as well as flat elements.

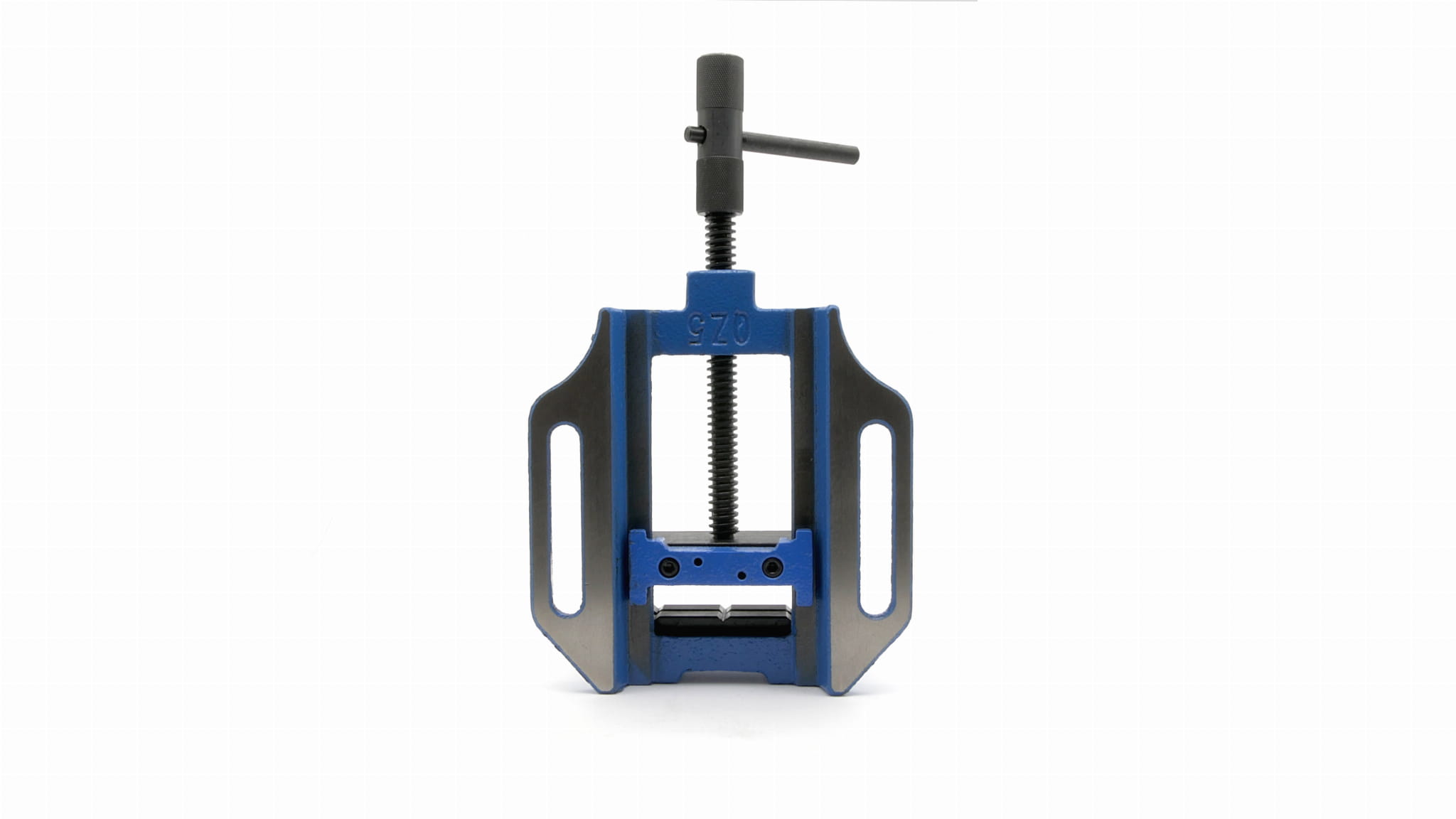

- Longitudinal mounting holes allow a very wide range of position changes of the vise already mounted on the worktable using, for example, T-bolts.
- This type of drilling vise is used on column drills, or during light milling.
- The flat design is an advantage for limited working space in vertical machines.
- The knurled handle also has an additional hole for a pin to tighten the pulling screw with greater force.
- The washer at the bottom of the bed is adjustable so the operator can set the jaw clearance, and thus its freer or more controlled feed.

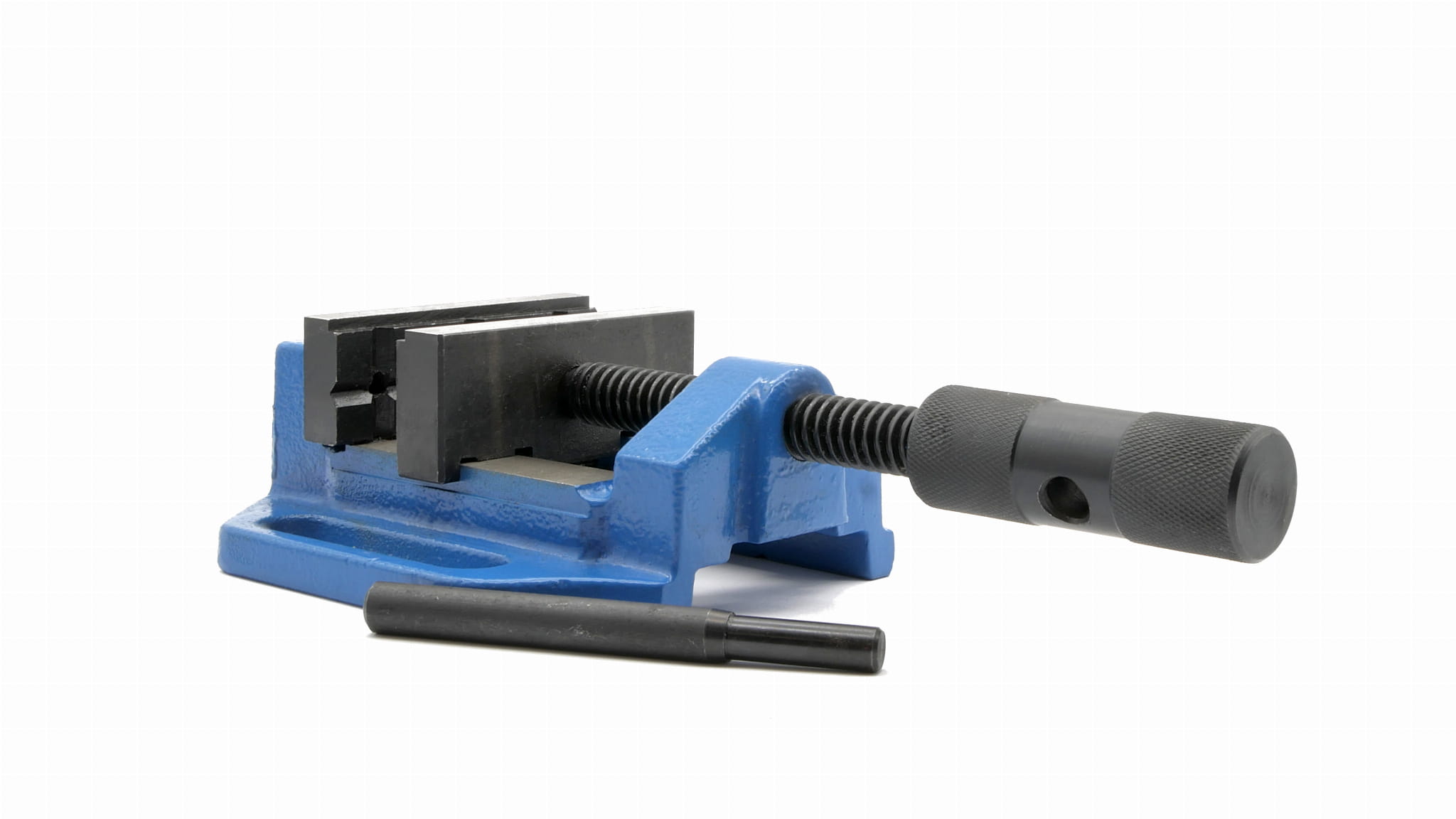

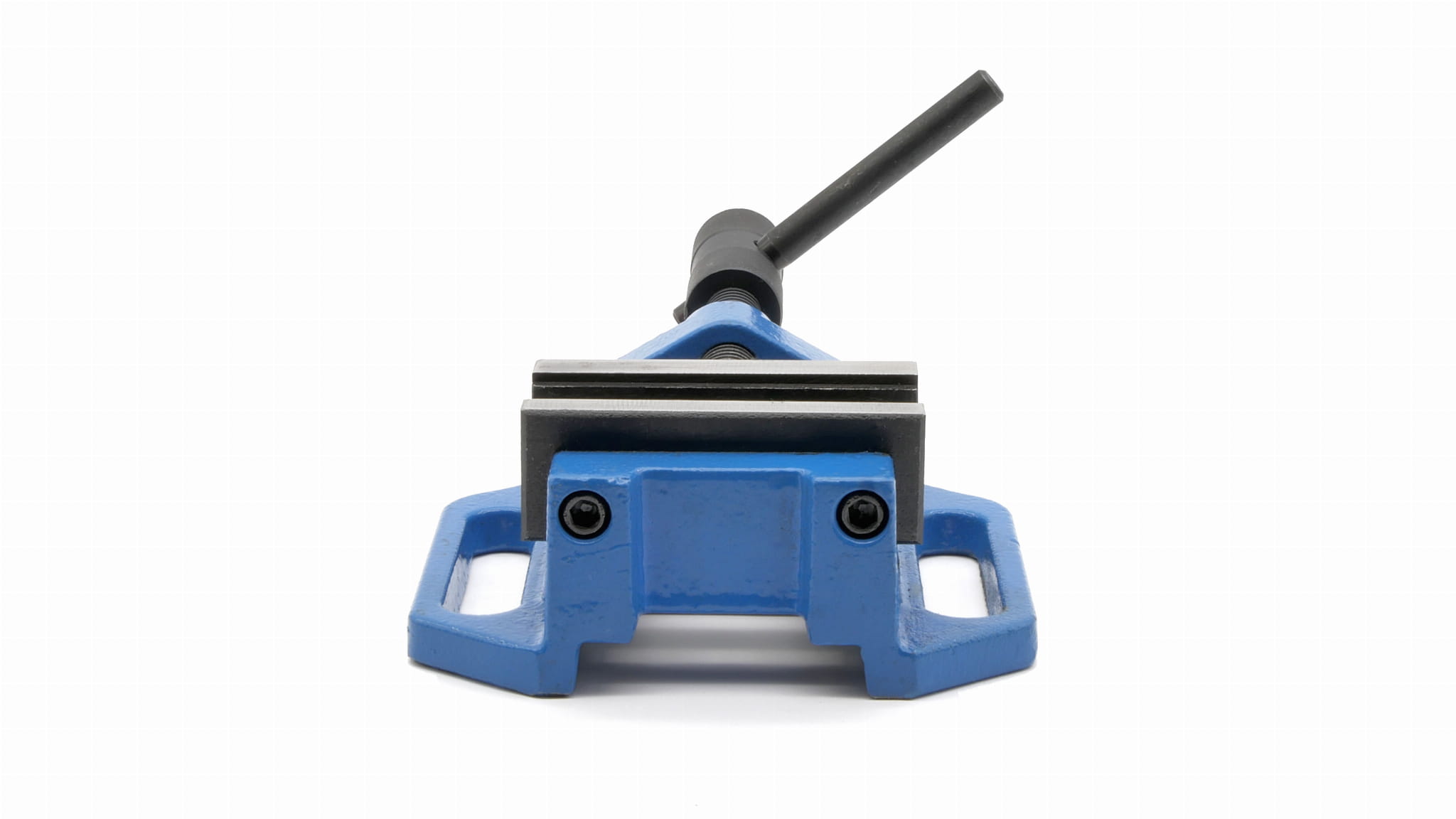

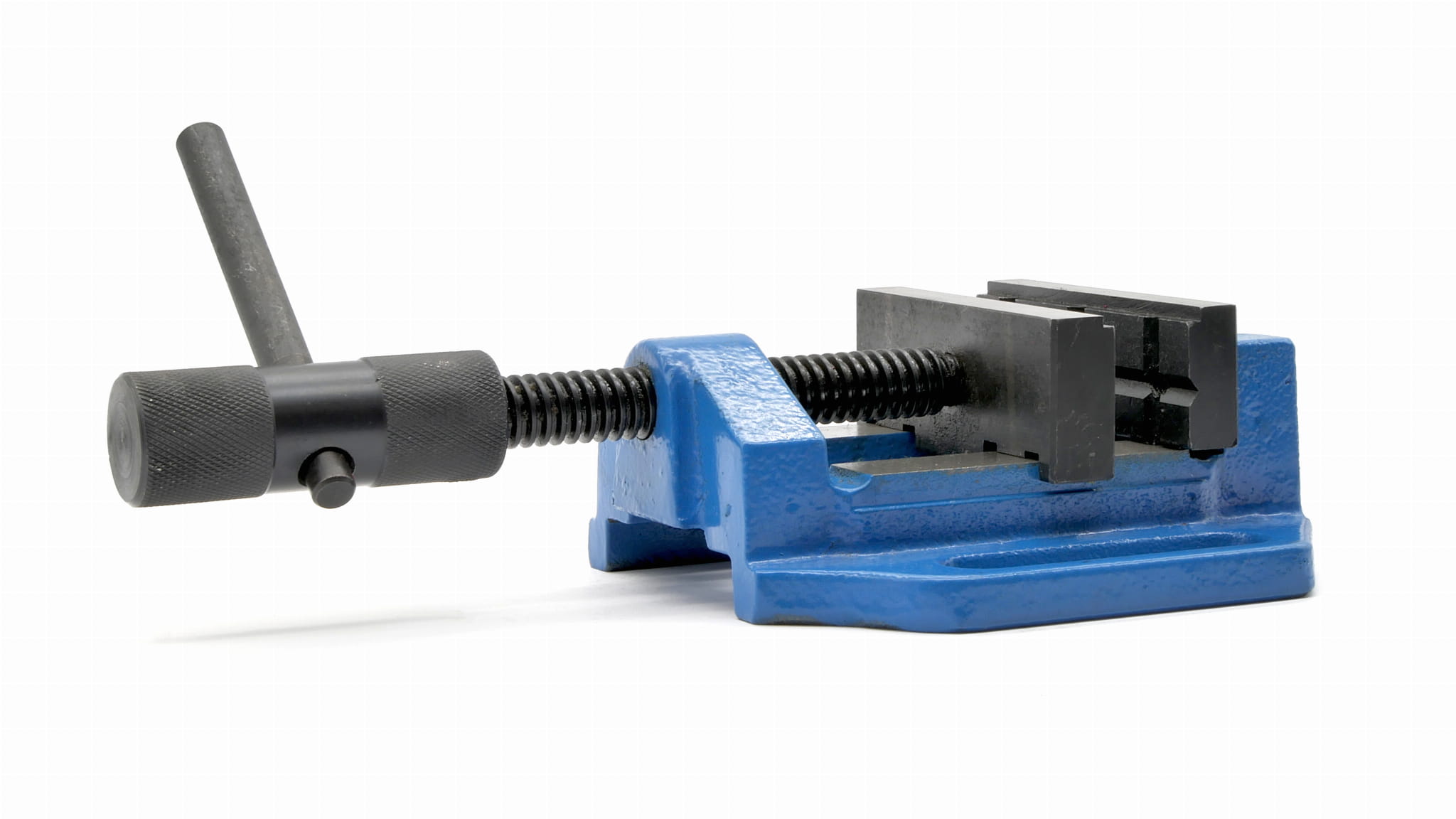

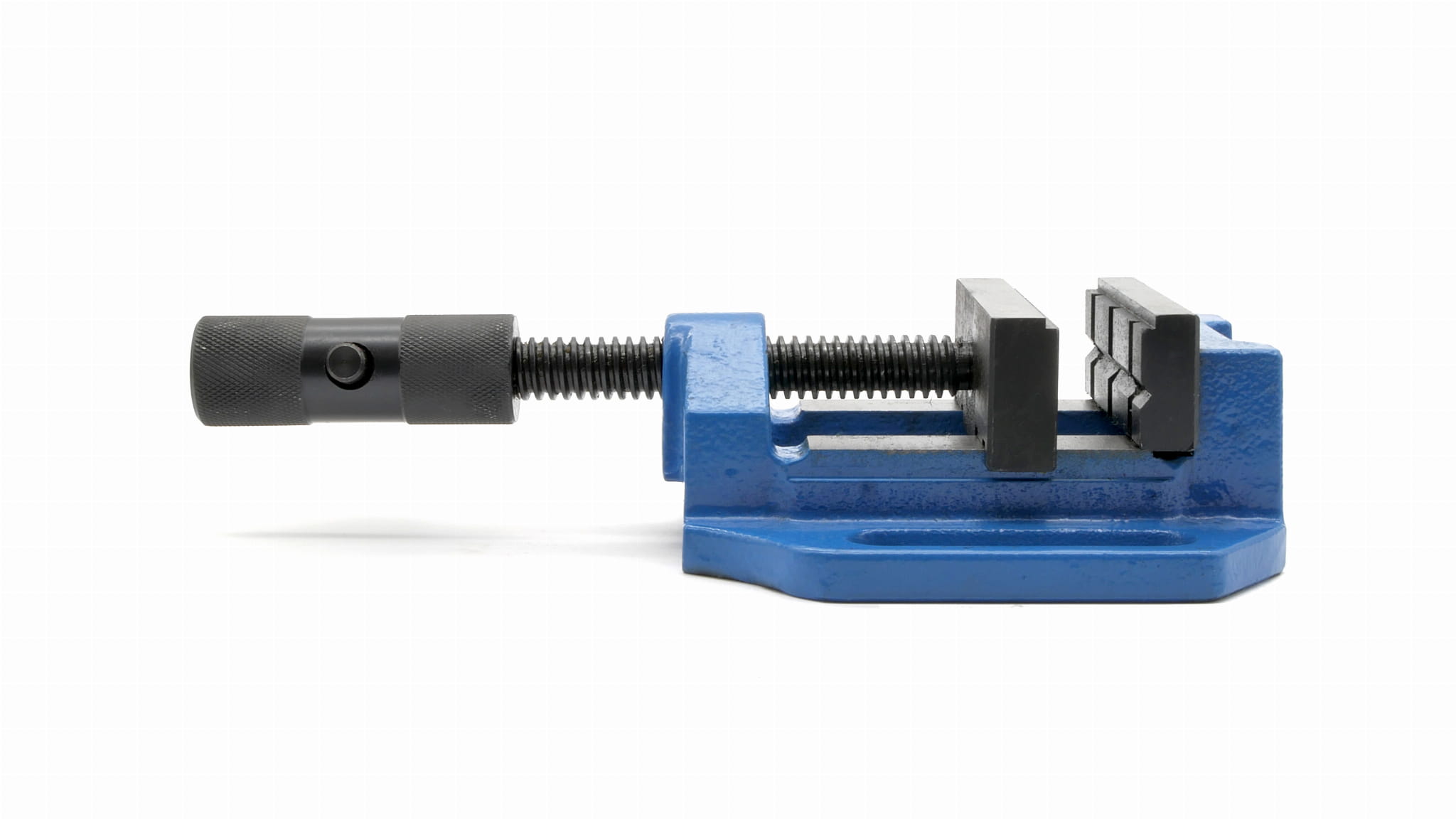

Presentation of the vise around its 360° axis
Specification:
| Parameter | Value |
|---|---|
| S: jaw width | 80 mm |
| a: clamping range | 58 mm |
| h: jaw height | 27 mm |
| H: total height | 52 mm |
| A: total width | 129 mm |
| L1: length without handle | 124 mm |
| Lmin: vise length with tightened jaw | 210 mm |
| D: hole width | 13 mm |
| k: spacing of mounting holes | 98 mm |
| Weight | 2 kg |
