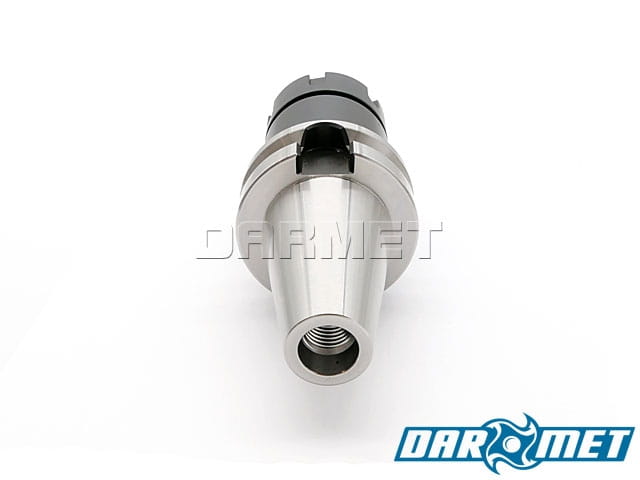

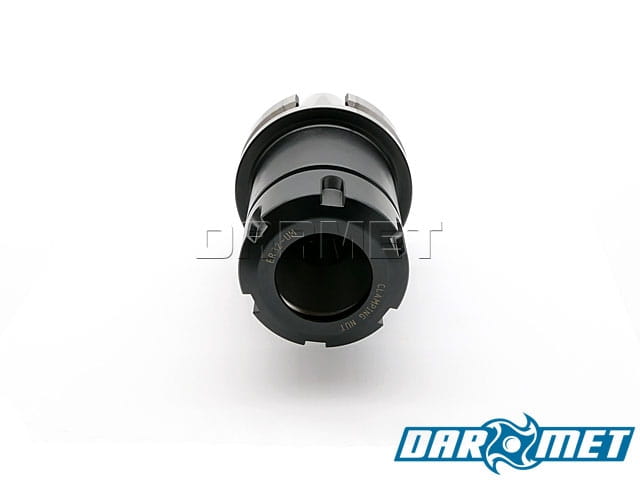

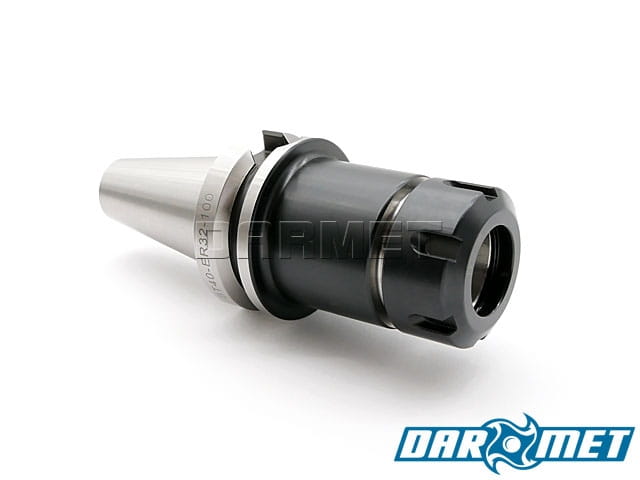

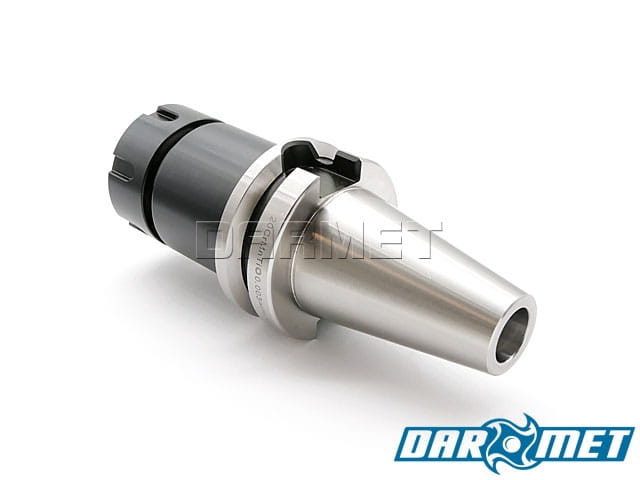

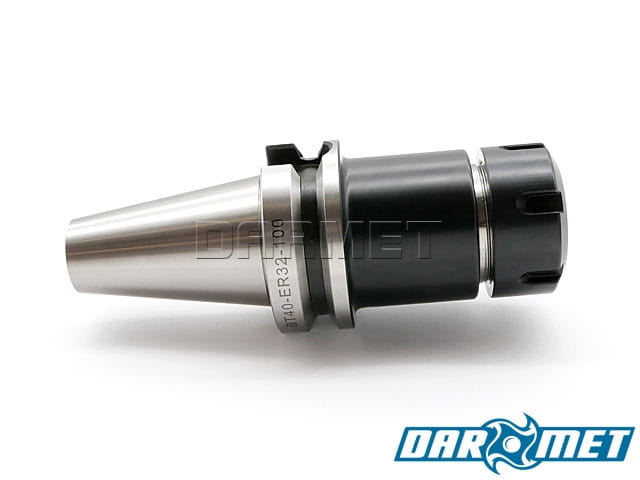

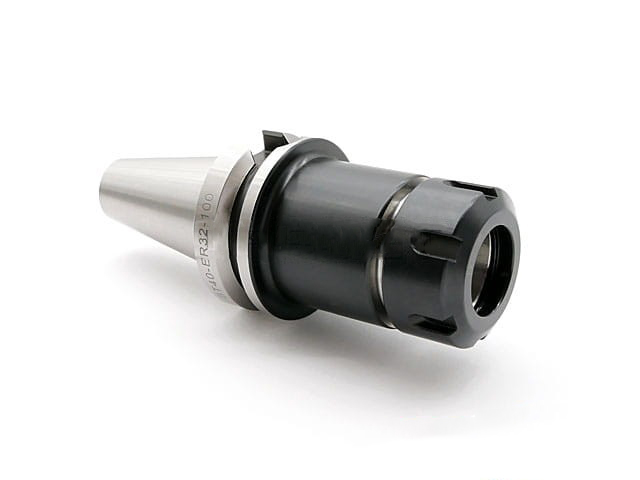

CNC Collet Chuck for ER32 Collets with MAS 403-BT SK40 Shank | 100 mm | - DARMET 400
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Holder for mounting ER32 collet cages.
- Tapered BT arbor according to MAS 403-BT ended with a thread for pulling in conventional machines.
- A correctly seated collet is perfectly flush with the face of the ER nut, only then should we tighten the whole thing with a special hook wrench or multipoint.
- Correct seating in the spindle ensures self-locking counterforce when tightening and loosening the tool.
- Standard collets have a round hole, which makes the holder universal, as we can clamp all shank tools with a cylindrical shank or cylindrical shank with a Weldon flattening, i.e. drills, or milling cutters.
- Through-through tool for internal cooling.
Specification:
| Parameter | Value |
|---|---|
| K (MAS 403-BT) | SK40 |
| Collet | ER32 |
| D | 50 mm |
| D1 | 44.45 mm |
| L1 | 100 mm |
| M | M16 |
| Weight | 1.7 kg |
Technical information: DIN 69871 shank by DARMET
How to correctly mount the collet in the ER nut?
The collet should be mounted at an angle by hooking the cage channel onto the eccentric or cylindrical band of the nut (A), feeling a slight resistance, press it until you hear a characteristic "click" (B). Disassembly is just as simple, tilt the cage to release it from the clamp in the nut (C).
