CNC Collet Chuck for ER40 Collets with DIN SK40 Shank | 100 mm | - DARMET 400

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $65.46

incl. 23% TAX, excl. shipping costs

Regular price:

65.46

The lowest price during 30 days prior to the reduction:

Net price: $53.22

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 23 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM400_ER40_DIN40_100

Description

Information:

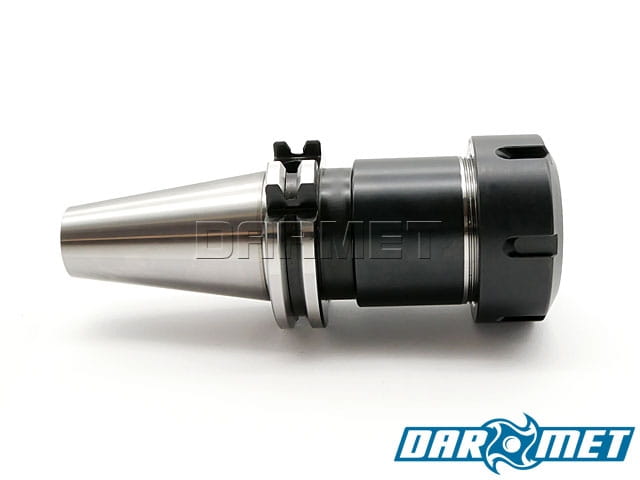

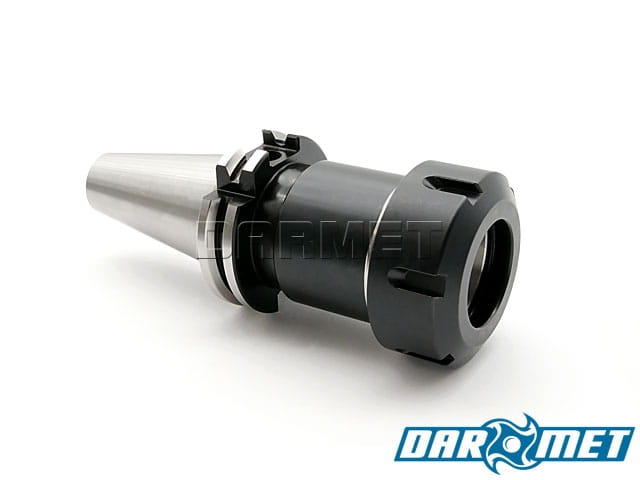

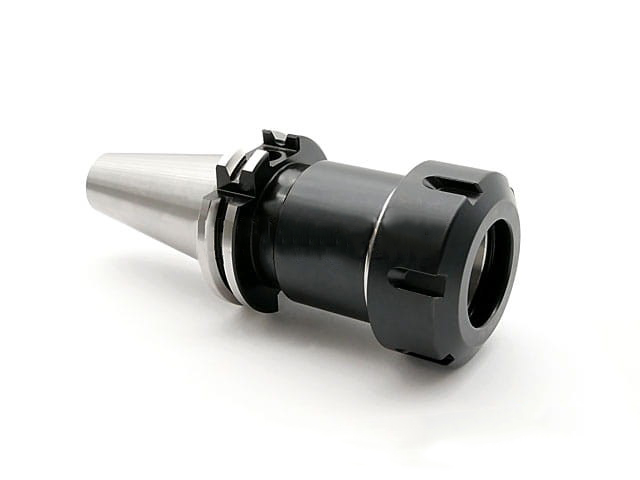

Holder for mounting ER40 collet cages.

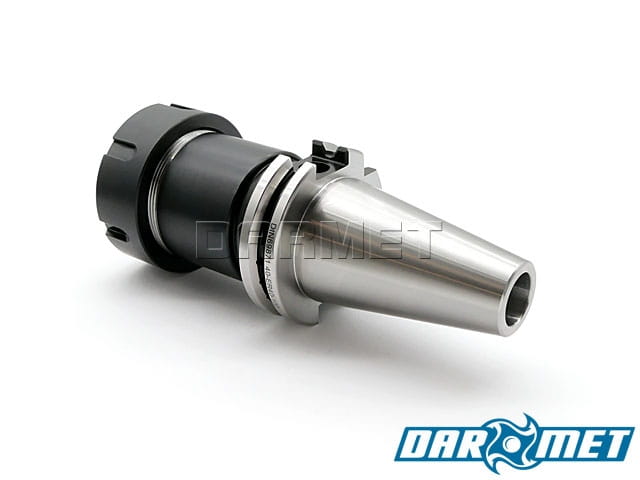

Tapered DIN arbor according to DIN68971 ended with a thread for pulling in conventional machines.

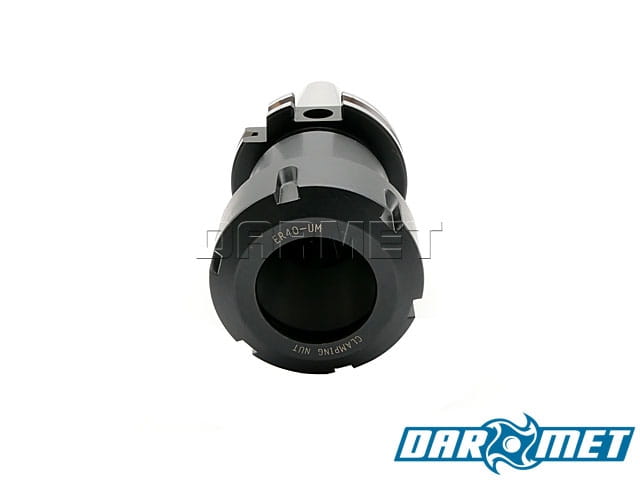

A correctly seated collet is perfectly flush with the face of the ER nut, only then should we tighten the whole thing with a special hook wrench or multipoint.
Correct seating in the spindle ensures self-locking counterforce when tightening and loosening the tool.
Standard collets have a round hole, which makes the holder universal, as we can clamp all shank tools with a cylindrical shank or cylindrical shank with a Weldon flattening, i.e. drills, or milling cutters.
Through-through tool for internal cooling.

Specification:

Collet chuck for ER cages on DIN shank

Parameter	Value
K (DIN69871)	SK40
Collet	ER40
D	63 mm
D₁	44.45 mm
L₁	100 mm
M	M16
Weight	1.6 kg

Technical information: DIN 69871 shank by DARMET

How to correctly mount the collet in the ER nut?

Instructions for correct installation of the cage in the ER clamping nut.

The collet should be mounted at an angle by hooking the cage channel onto the eccentric or cylindrical band of the nut (A), feeling a slight resistance, press it until you hear a characteristic "click" (B). Disassembly is just as simple, tilt the cage to release it from the clamp in the nut (C).

Video presentation of the correct assembly of the entire assembly in the ER collet.
