Clamping chuck SK40 with ER16 collets | ISO | 60 mm | - DARMET 076
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Holder for mounting ER16 collet chucks.
- Tapered ISO shank according to DIN2080 ended with a thread for pulling in conventional machines.
- A correctly seated collet is perfectly flush with the face of the ER nut, only then should we tighten the whole thing with a special hook wrench or multipoint.
- Correct seating in the spindle ensures self-locking counterforce when tightening and loosening the tool.
- Standard collets have a round hole, which makes the holder universal, as we can clamp all shank tools with a cylindrical shank or cylindrical shank with a Weldon flattening, i.e. drills, or milling cutters.
- Through-through tool for internal cooling.
- The set includes 8 cages: 2, 3, 4, 5, 6, 7, 8, 10 mm.
Specification:
| Parameter | Value |
|---|---|
| K (DIN2080) | SK40 |
| Collet | ER16 |
| Number of collets | 8 |
| Clamping diameter | 1.5 - 10 mm |
| Weight | 1.3 kg |

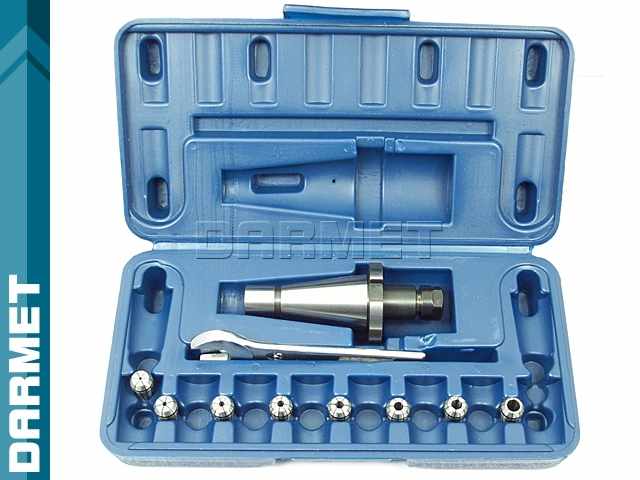

*Note: Sets are sent randomly in a plastic or wooden case

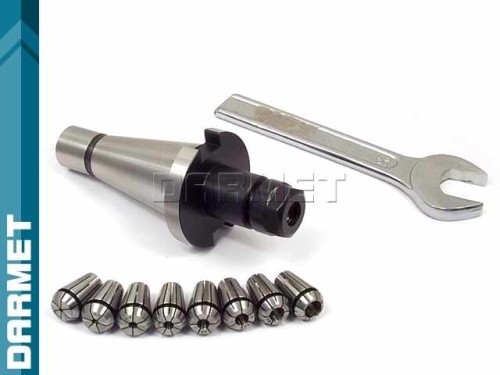

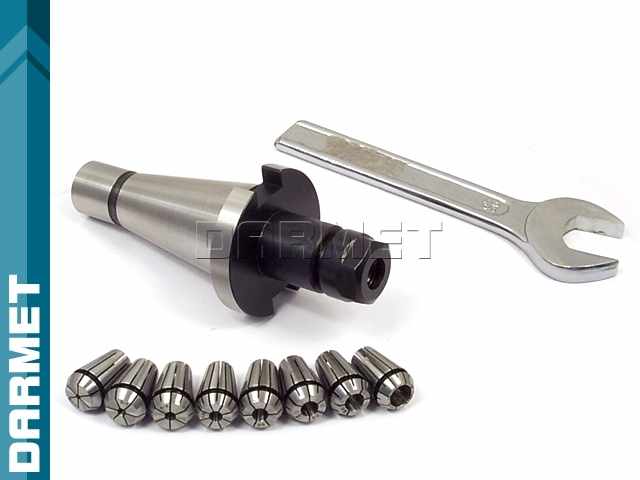

Equipment:
| Holder | 1 pcs. |
| Nut | 1 pc. |
| Collet | 8 pcs. |
| Wrench | 1 pc. |
Technical information: ISO (DIN2080) shank by DARMET
How to properly mount the collet in the nut ER?
The collet should be mounted at an angle, hooking the cage channel onto the eccentric or cylindrical band of the nut (A), feeling a slight resistance, press until a characteristic "click" is heard (B). Disassembly is equally simple, tilt the cage to release it from the band in the nut (C).
