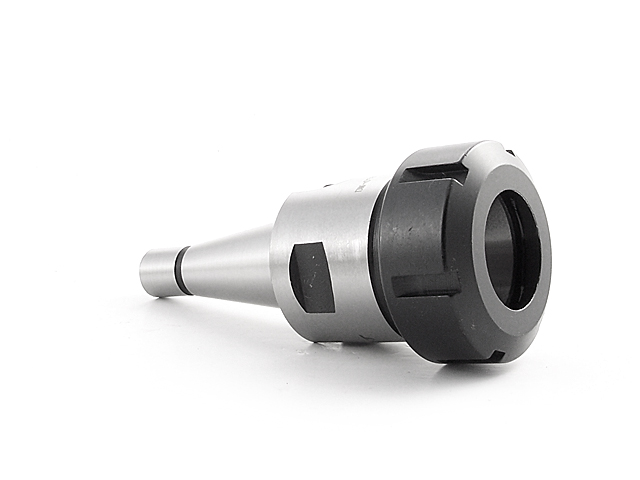

Clamping chuck for ER40 collets with ISO SK40 shank | 70 mm | - DARMET 076
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Holder for mounting ER40 collet chucks.
- Tapered ISO shank according to DIN2080 ended with a thread for pulling in conventional machines.
- A correctly seated collet is perfectly flush with the face of the ER nut, only then should we tighten the whole thing with a special hook wrench or multipoint.
- Correct seating in the spindle ensures self-locking counterforce when tightening and loosening the tool.
- Standard collets have a round hole, which makes the holder universal, as we can clamp all shank tools with a cylindrical shank or cylindrical shank with a Weldon flattening, i.e. drills, or mills.
- Through-through tool for internal cooling.

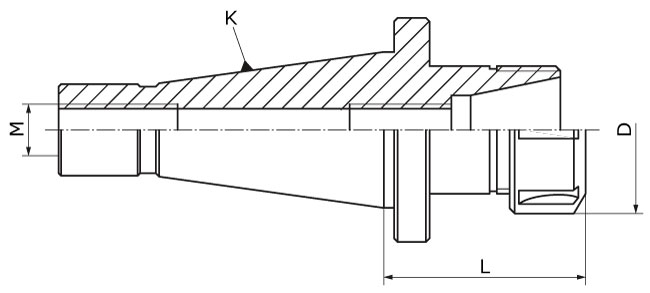

Specification:
| Parameter | Value |
|---|---|
| K (DIN2080) | SK30 |
| Collet | ER40 |
| Thread | M12 |
| L | 70 mm |
| D | 63 mm |
| Weight | 1.0 kg |
Technical information: ISO (DIN2080) grip by DARMET
How to properly mount a collet in an ER nut?
The collet should be mounted at an angle by hooking the cage channel onto the eccentric or cylindrical nut clamp (A), feeling a slight resistance, press until a characteristic "click" is heard (B). Disassembly is equally simple, tilt the cage to release it from the clamp in the nut (C).
