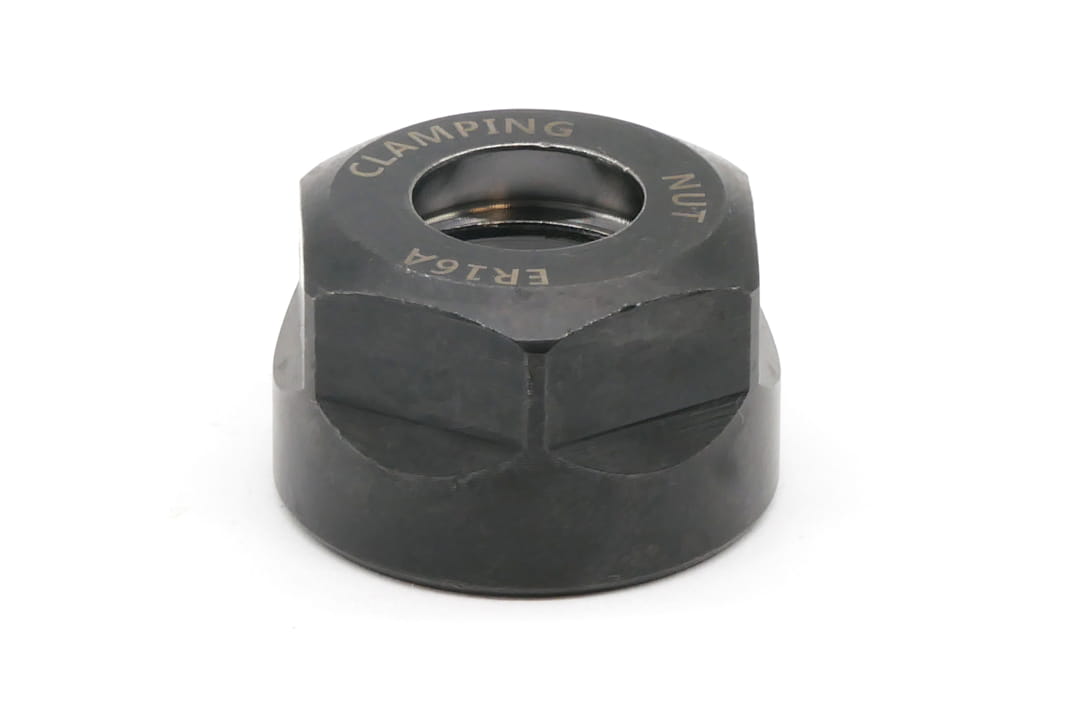

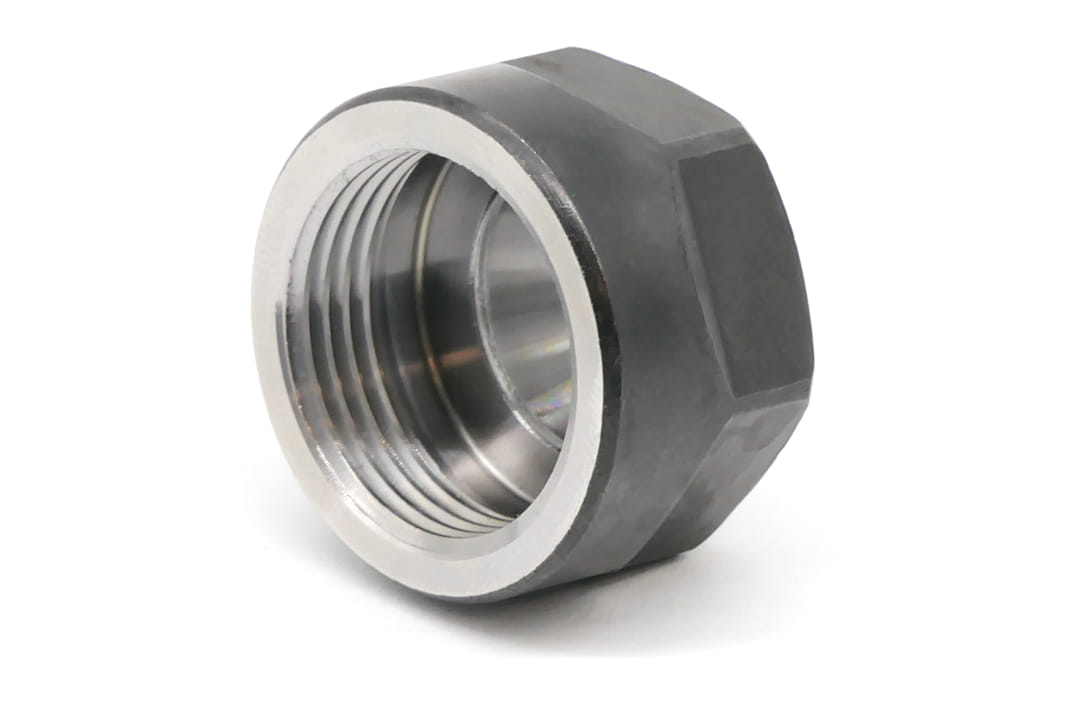

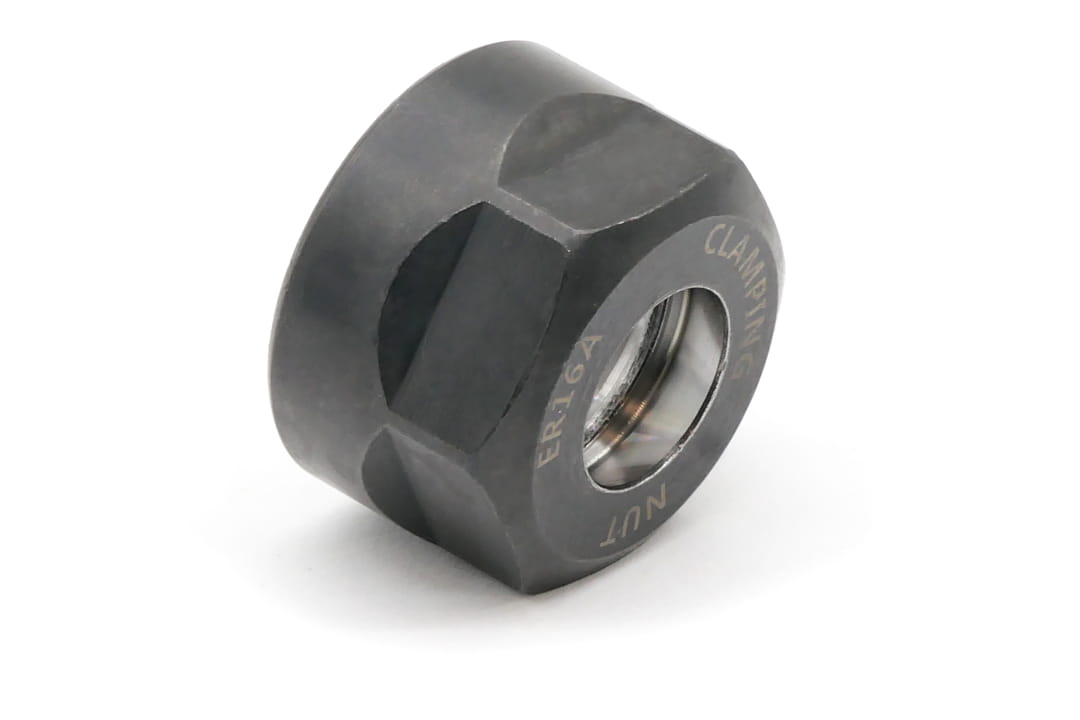

Clamping nut for ER16 collets | Type T1 hexagonal (DM 072)
Availability:
brak towaru
Gross price:
$6.78
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$5.51
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_AKC_NAK_ER16_T1
Description
Properties and Application:
- Made of high-quality steel.
- Intended for collets used with ER DIN 6499 clamp sleeves.
- Before mounting in the holder, the collet must be inserted into the nut.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| D | 28 | mm |
| L | 17.5 | mm |
| M | M22 x 1.5 | mm |
| Weight | 0.05 | kg |
Mounting collets in nuts:
| | ||
| Mounting the clamp collet in the holder nut | Collet properly mounted | Removing the clamp collet |
To properly mount the ER clamping collet in the holder, you should:
- Insert the collet at an angle into the nut.
- Hook the collet groove onto the eccentric or cylindrical protrusion of the nut (fig. A).
- Press the collet into the nut (fig. B).
- Screw the nut with the pressed collet onto the holder so that the tool to be machined can be secured.
