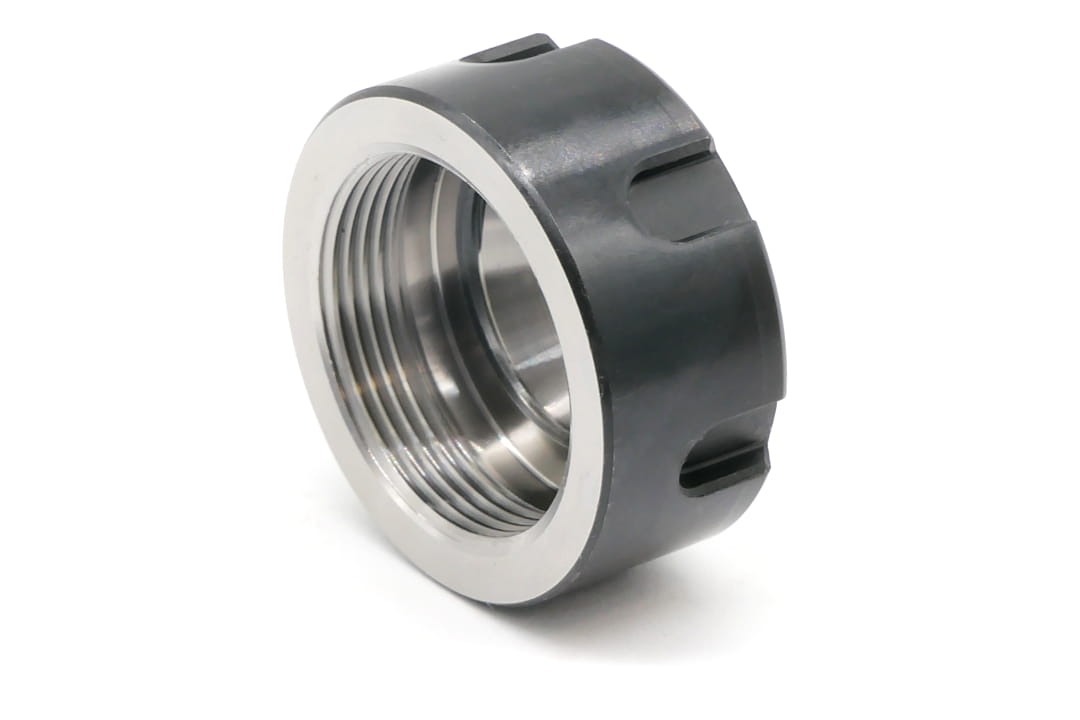

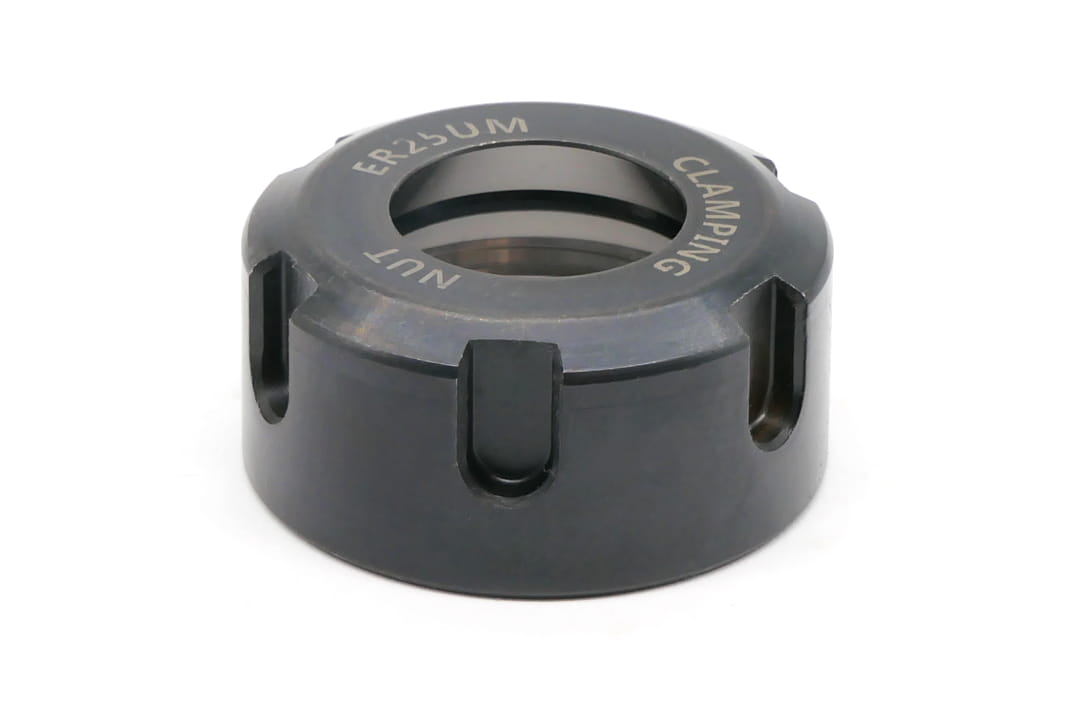

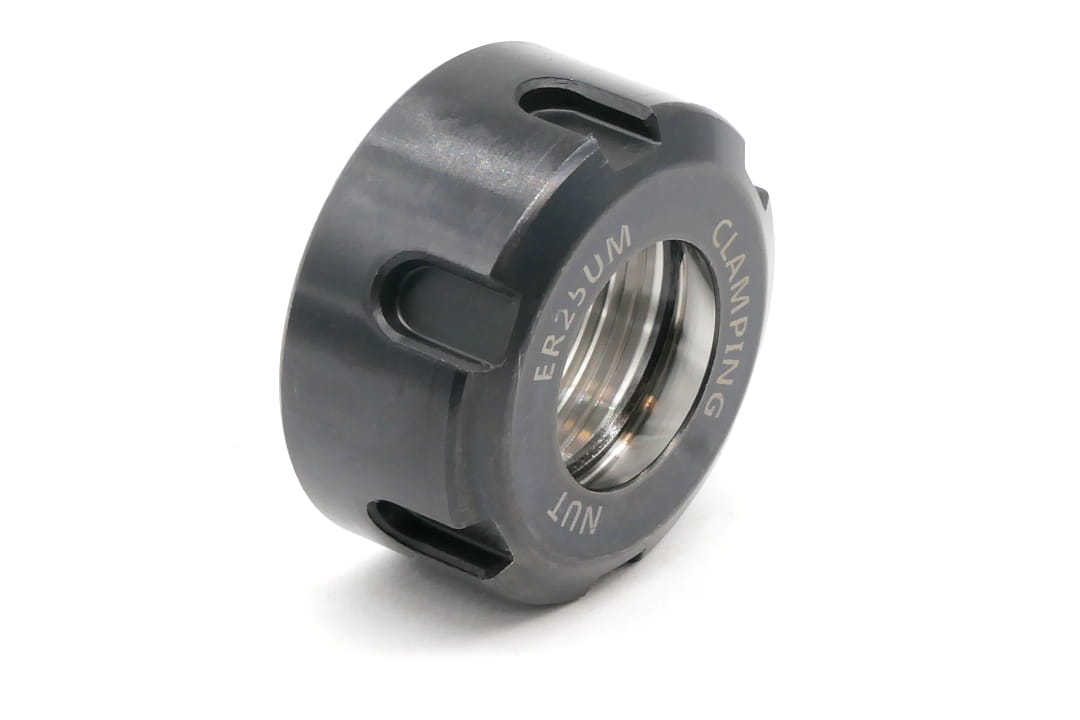

Clamping nut for ER25 collets | Type T2 - (DM 072)
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$8.13
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$6.61
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_AKC_NAK_ER25_T2
Description
Properties and application:
- ER25 nut is made of high-quality steel.
- Intended for collet chucks used with ER25 collets.
- Before mounting in the chuck, the collet must be inserted into the nut.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| D | 42 | mm |
| L | 20 | mm |
| M | M32 x 1.5 | mm |
| Weight | 0.14 | kg |
Mounting collets in nuts:
| | ||
| Mounting a clamping collet in the chuck nut | Collet correctly mounted | Removing the clamping collet |
To properly mount an ER clamping collet in the chuck, follow these steps:
- Insert the collet at an angle into the nut.
- Hook the collet groove onto the eccentric or cylindrical protrusion of the nut (fig. A).
- Press the collet into the nut (fig. B).
- Screw the nut with the pressed collet onto the chuck so that it is possible to secure the machining tool.
