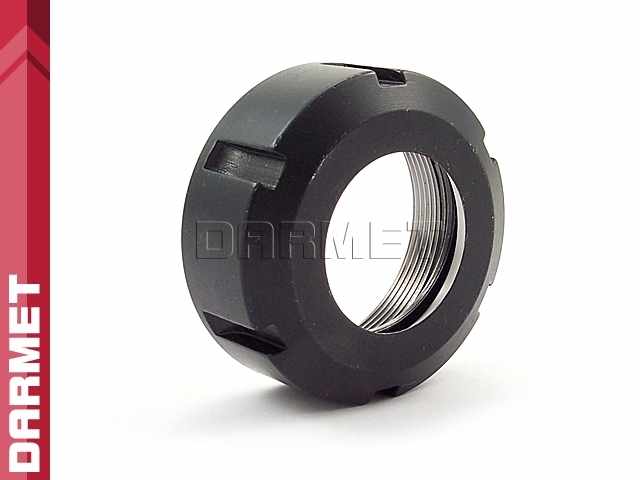

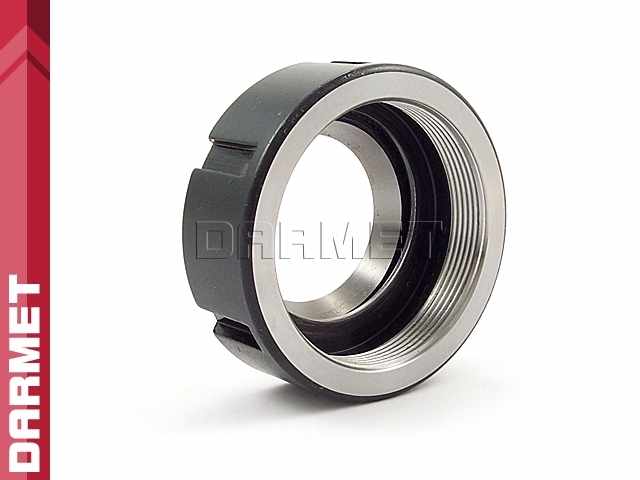

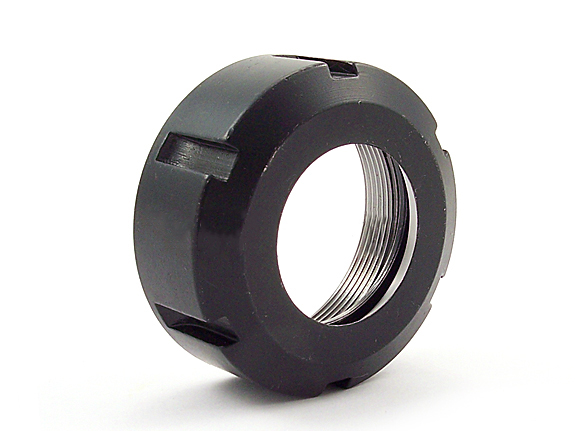

Clamping nut for ER32 collets | Type T2 - (DM 072)
Availability:
temporarily unavailable
Gross price:
$9.15
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$7.44
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_AKC_NAK_ER32_T2
Description
Properties and applications:
- The ER32 nut is made of high-quality steel.
- Intended for ER32 collet chucks.
- Before mounting in the chuck, the collet must be inserted into the nut.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| D | 50 | mm |
| L | 22.5 | mm |
| M | M40 x 1.5 | mm |
| Weight | 0.2 | kg |
Collet mounting in nuts:
| | ||
| Clamping collet mounting in the chuck nut | Collet properly mounted | Clamping collet dismounting |
To properly mount the ER clamping collet in the chuck you should:
- Insert the collet at an angle into the nut.
- Hook the collet groove onto the eccentric or cylindrical projection of the nut (fig. A).
- Push the collet into the nut (fig. B).
- Screw the nut with the pressed collet onto the chuck so that it is possible to secure the tool being machined.
