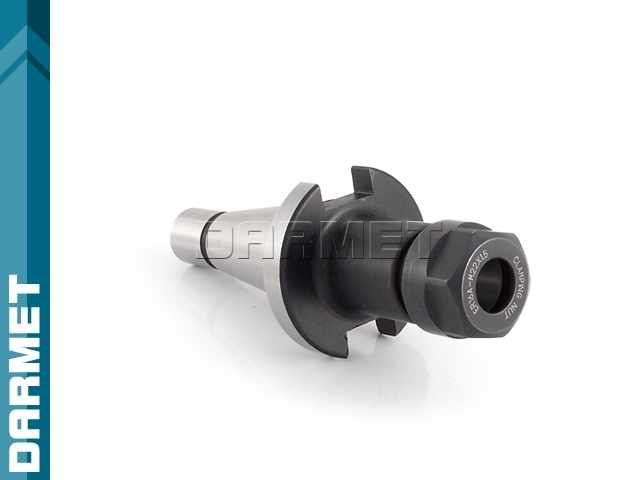

Collet chuck for ER16 collets with ISO SK30 shank | 60 mm | - DARMET 076
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Holder for mounting ER16 collet chucks.
- Tapered ISO shank according to DIN2080 ended with a thread for pulling in conventional machines.
- A correctly seated collet is perfectly flush with the face of the ER nut, only then should we tighten the whole thing with a special hook wrench or multipoint.
- Correct seating in the spindle ensures self-locking counterforce when tightening and loosening the tool.
- Standard collets have a round hole, which makes the holder universal, as we can clamp all shank tools with a cylindrical shank or cylindrical shank with a Weldon flattening, i.e. drills, or milling cutters.
- Through-through tool for internal cooling.
Specification:

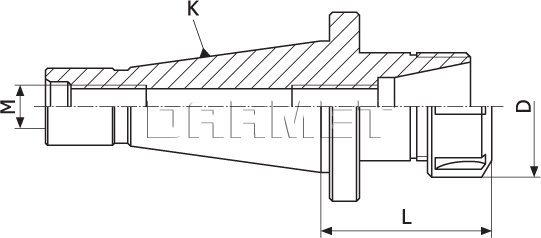

| Parameter | Value |
|---|---|
| K (DIN2080) | SK30 |
| Collet | ER16 |
| Thread | M12 |
| L | 60 mm |
| D | 28 mm |
| Weight | 0.5 kg |
Technical information: ISO (DIN2080) shank according to the company DARMET
How to properly mount a collet in an ER nut?
The collet should be mounted at an angle by hooking the cage channel onto the eccentric or cylindrical band of the nut (A), feeling a slight resistance, press it until you hear a characteristic "click" (B). Disassembly is just as simple, tilt the cage to release it from the clamp in the nut (C).
