Collet for taps M20 | ER25 - 16.0 x 12.0 mm - DARMET

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $21.35

incl. 23% TAX, excl. shipping costs

Regular price:

21.35

The lowest price during 30 days prior to the reduction:

Net price: $17.36

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 7 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_710_ER25_16,0X12

Information:

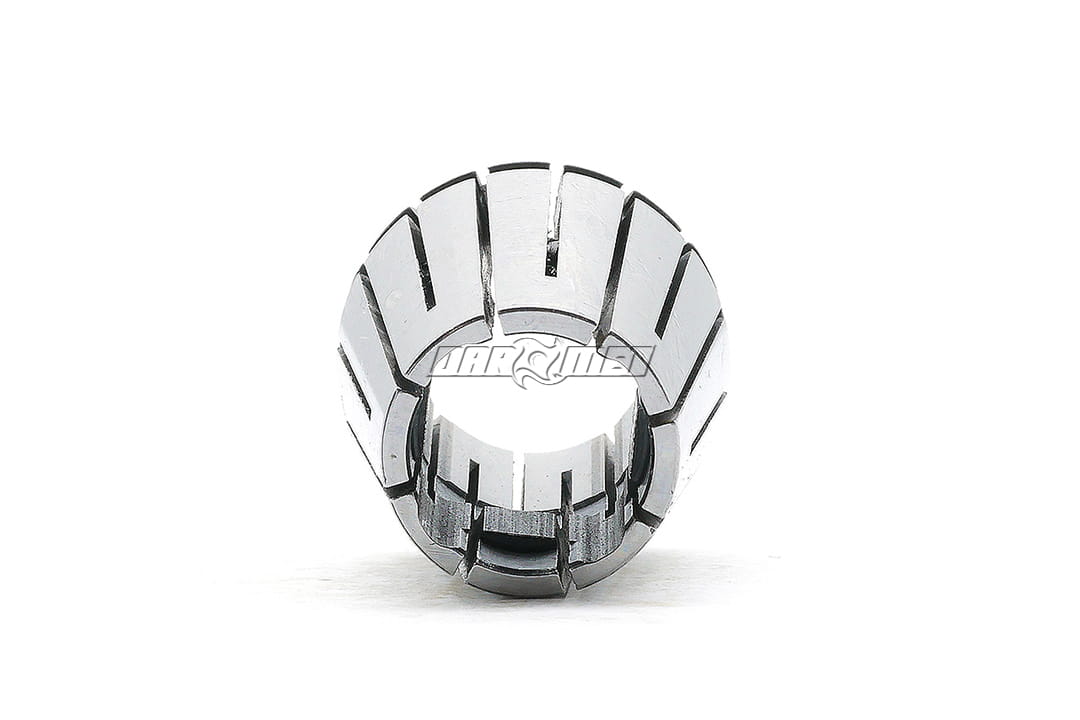

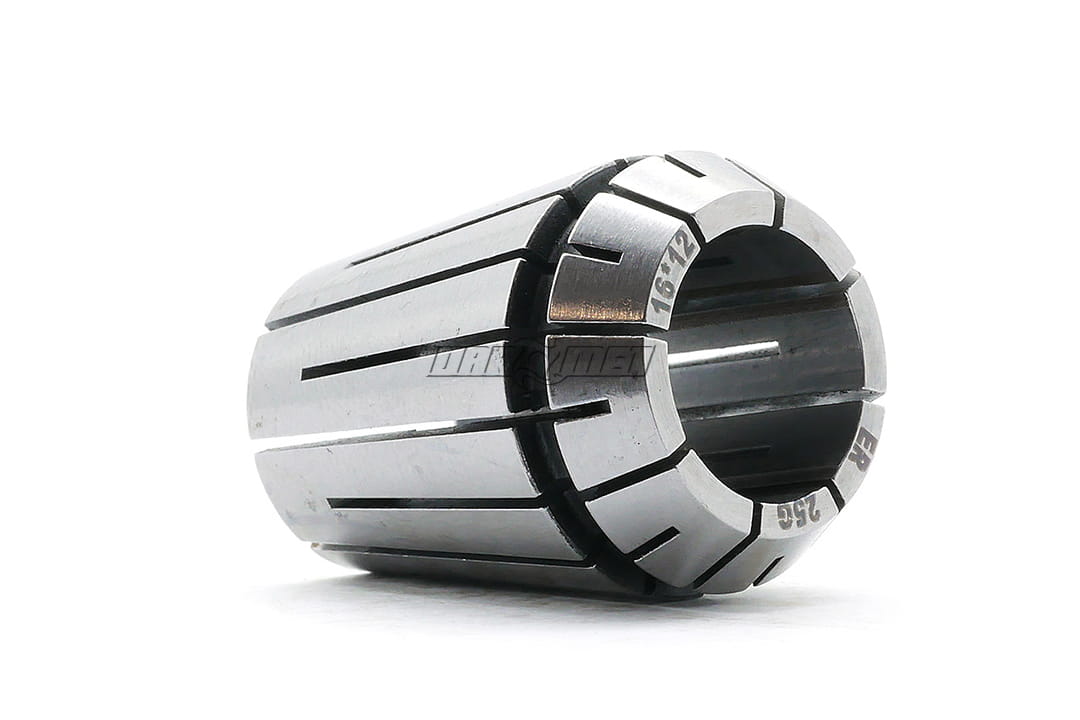

ER25 collet designed for M20 machine taps.
In order to correctly Tap operation, you should use compensation holder ER25.
There is also a version of sealed collets collet for work with coolant inside tools.

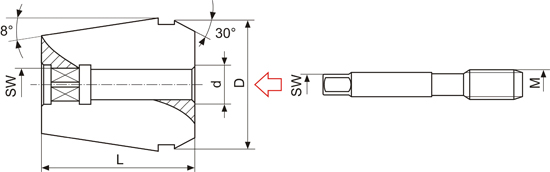

ER16 collet - 3.5x2.7

Installation of the collet

in the holder nut

Collet correctly installed

Disassembly of the collet

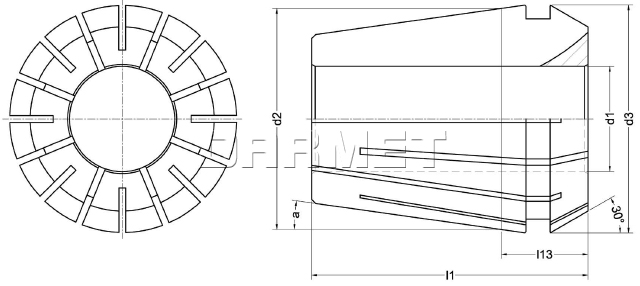

ER	d₁ [mm]	Clamping range [mm]	d₂ [mm]	d₃ [mm]	a_AT3	l₁ [mm]	l_{13 max} [mm]

ER11	1÷7	0.5	11	11.5	8°	18.0	6.6
ER16	1÷10	0.5÷1	16	17.0	8°	27.5	10.6
ER20	1÷13	0.5÷1	20	21.0	8°	31.5	11.5
ER25	1÷16	0.5÷1	25	26.0	8°	34.0	12
ER32	1÷20	0.5÷1	32	33.0	8°	40.0	13
ER40	1÷30	1	40	41.0	8°	46.0	15

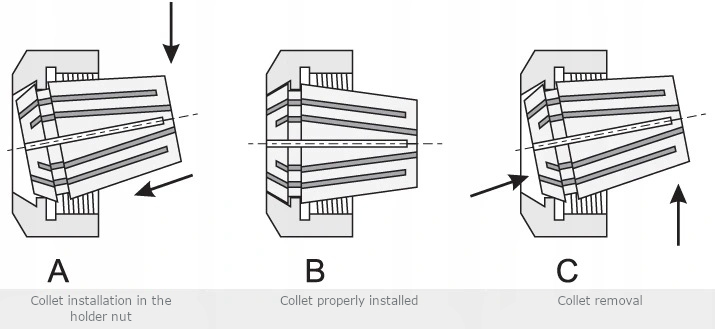

To correctly mount the ER collet in the holder:

Insert the collet at an angle into the nut
Hook the collet's channel into the eccentric or cylindrical protrusion of the nut (Fig. A)
Press the collet into the nut (Fig. B)
Screw the nut with the pressed-in sleeve onto the holder so that the tool being processed can be clamped.
