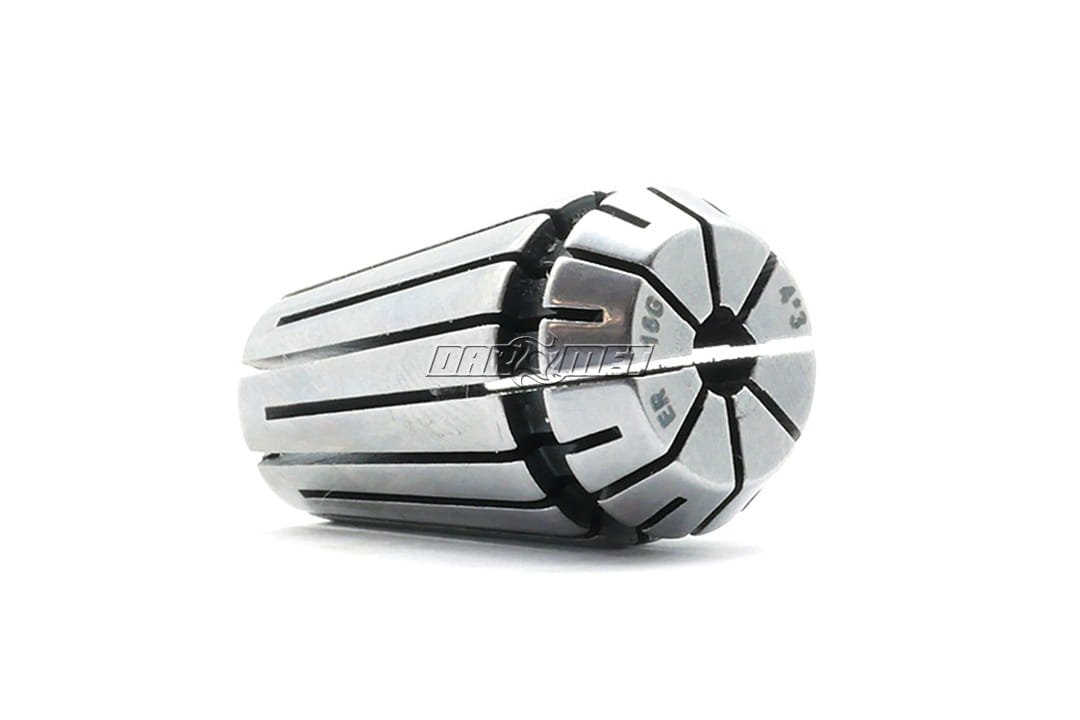

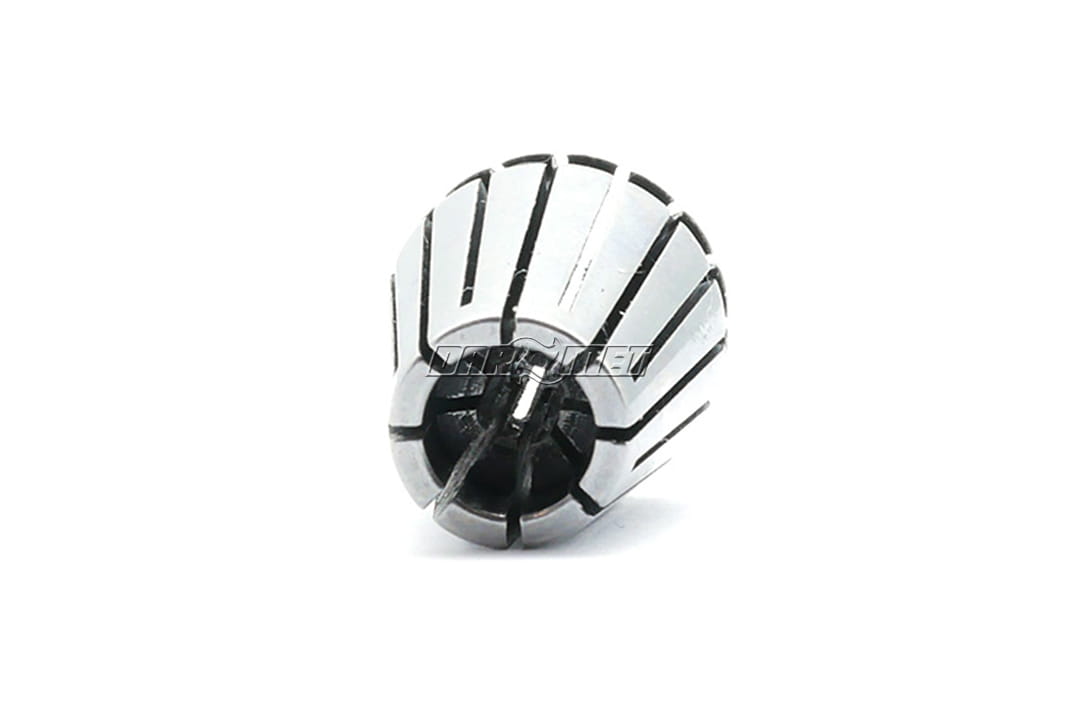

Collet for taps M3.5 | ER16 - 4.0 x 3.0 mm - DARMET
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$20.00
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$16.26
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_710_ER16_04,0X3,0
Description
Information:
- ER16 collet dedicated to machine taps M3.5.
- To avoid damaging the tap, use ER16 compensating holder.
- There is also a version sealed collets for work with coolant inside the tools.
Technical specifications:
| Parameter | Value |
|---|---|
| M | 3.5 mm |
| d | 4.0 mm |
| SW | 3.0 mm |
| D | 17 mm |
| L | 27.5 mm |
Installation of sleeves in nuts:
|
|
||
|
Installation of the collet in the holder nut |
Collet correctly installed | Disassembly of the collet |
ER standards:
|
|
|||||||
| ER | d1 [mm] |
Clamping range [mm] |
d2 [mm] |
d3 [mm] |
aAT3 | l1 [mm] |
l13 max [mm] |
|---|---|---|---|---|---|---|---|
| ER11 | 1÷7 | 0.5 | 11 | 11.5 | 8° | 18.0 | 6.6 |
| ER16 | 1÷10 | 0.5÷1 | 16 | 17.0 | 8° | 27.5 | 10.6 |
| ER20 | 1÷13 | 0.5÷1 | 20 | 21.0 | 8° | 31.5 | 11.5 |
| ER25 | 1÷16 | 0.5÷1 | 25 | 26.0 | 8° | 34.0 | 12 |
| ER32 | 1÷20 | 0.5÷1 | 32 | 33.0 | 8° | 40.0 | 13 |
| ER40 | 1÷30 | 1 | 40 | 41.0 | 8° | 46.0 | 15 |
To correctly mount the ER collet in the holder:
- Insert the collet at an angle to the nut
- Hook the sleeve groove onto the eccentric or cylindrical projection of the nut (Fig. A)
- Press the sleeve into the nut (Fig. B)
- Screw the nut with the pressed sleeve onto the holder so that the tool to be processed can be clamped
Shipping costs
The price does not include any possible payment costs
Shipping country:
All reviews (positive and negative) are displayed. We don't verify that they come from customers who have purchased the product.
