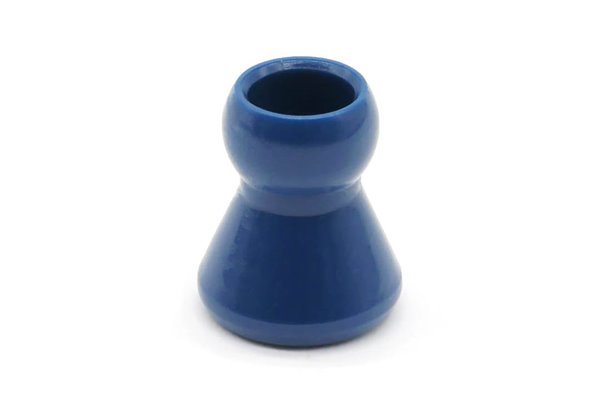

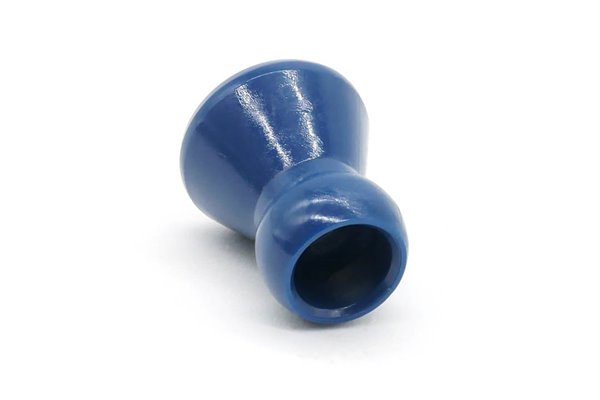

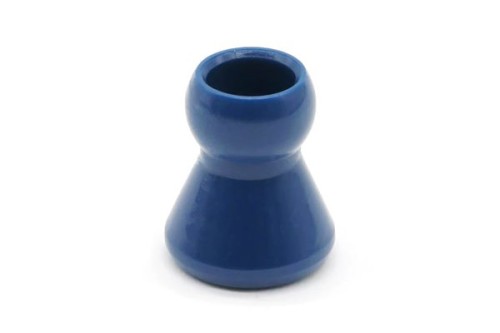

Coolant Hose Segment | Length: 14.48 mm | 1/4" System – DM 28012.1-14

Features and applications:

• Coolant hose segment for the 1/4" system.
• Working length: 14.48 mm.
• Examples of hose configurations:
  • hose length 145 mm = 10 pcs. of segments
  • hose length 200 mm = 14 pcs. of segments
  • hose length 400 mm = 28 pcs. of segments
  • hose length 500 mm = 35 pcs. of segments
  • hose length 600 mm = 42 pcs. of segments
  • hose length 1000 mm = 70 pcs. of segments
• Assembly pliers are required for connecting components from the 1/4" system.
• The segments can also be connected and disconnected manually. The flexible articulated hose is suitable for conveying or extracting liquids, as well as for extracting dust, fumes and smoke. It can be freely extended or shortened, increasing its versatility. The required hose configuration can be assembled individually according to the application.
• The segments provide 100% positional stability and do not cause damage to cutting tools during operation.
• Replacement for the Loc-Line 49421.1 segment.
• Components for the 1/4" system:
  • segments,
  • valves,
  • hoses,
  • nozzles.

Technical specifications:

Features and applications:

Coolant systems are modular systems for supplying coolant, air or other media to the machining area. Their main advantages include:

✅ Flexibility and easy adjustment

• The coolant flow direction can be quickly adjusted to the required position.
• The length and shape can be easily adjusted by adding or removing segments.

✅ Easy assembly and disassembly

• Snap-fit systems allow components to be quickly assembled and replaced using pliers.
• The system can be easily expanded with additional nozzles or valves.

✅ More effective cooling

• Precise delivery of coolant directly to the cutting area.
• Reduction of coolant loss, resulting in cost savings and more efficient machining.

✅ Resistance to oils and chemicals

• Made of material resistant to most coolants, lubricants and industrial chemicals.
• Corrosion-resistant and suitable for long-term use in demanding workshop conditions.

✅ Safety and stability

• No risk of electrical conductivity, unlike metal coolant tubes.
• The system is resistant to vibration and remains in position during machine operation.

✅ Versatility

• Suitable for various types of machine tools, including lathes, milling machines, grinders and other machines.
• Available in various diameters and with different accessories, such as valves, manifolds and nozzles. Our coolant systems are compatible with the Loc-Line system and can be used interchangeably.
