Coolant Hose Set 6 × 145 mm | 29-Piece Set | 1/4" System – DM2003-14

Features and applications:

Modular coolant hose systems are designed to deliver coolant, compressed air or other media directly to the machining area. Their main advantages include:

✅ Flexible and easy positioning

Quick and precise adjustment of the coolant flow direction.
The length and shape of the hose can be easily adapted by adding or removing individual segments.

✅ Quick assembly and disassembly

The snap-fit design allows individual components to be assembled and replaced quickly using dedicated assembly pliers.
The system can be easily expanded with additional nozzles, valves or other accessories.

✅ More efficient cooling

Allows coolant to be directed precisely to the cutting area.
Helps reduce coolant loss, improving efficiency and lowering coolant consumption.

✅ Resistance to oils and chemicals

Made from material resistant to most coolants, lubricants and industrial chemicals.
Corrosion-resistant construction ensures long service life in demanding workshop environments.

✅ Safety and stability

Non-conductive construction eliminates the risk of electrical conductivity associated with metal coolant pipes.
The vibration-resistant design helps the hose remain in the selected position during machine operation.

✅ Versatile applications

Suitable for a wide range of machine tools, including lathes, milling machines, grinders and other industrial equipment.
Available in various sizes and with a wide range of accessories, including valves, manifolds and nozzles.

Technical specifications:

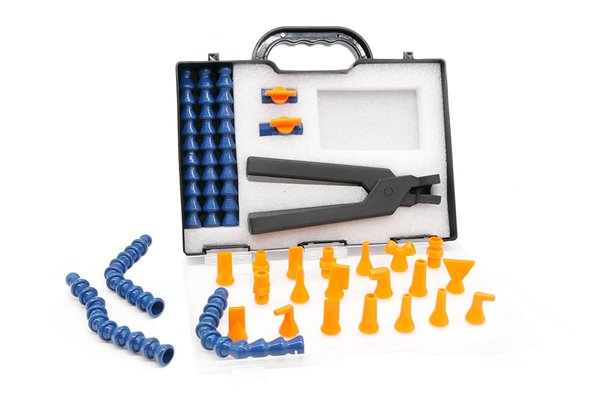

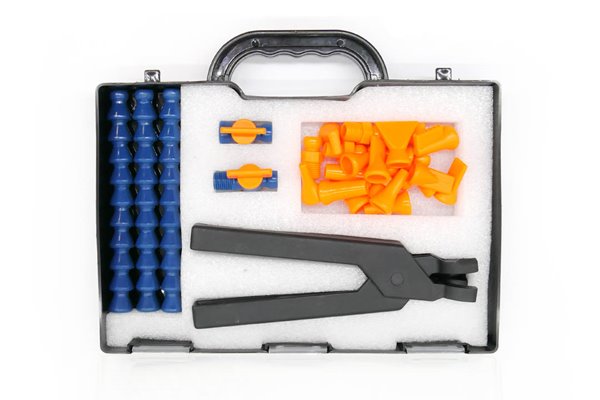

• The 1/4" coolant delivery set includes:
  • 10-segment hose, 145 mm – 6 pcs.
  • Round nozzle, 1.8 mm – 2 pcs.
  • Round nozzle, 3.5 mm – 2 pcs.
  • Round nozzle, 7.0 mm – 2 pcs.
  • Segment with 1/8" male NPT thread – 2 pcs.
  • Segment with 1/4" male NPT thread – 2 pcs.
  • Flat nozzle, 24.5 × 1.58 mm – 1 pc.
  • Y-branch connector, 3 × 1/4" – 1 pc.
  • 90° angled nozzle, 1.8 mm – 1 pc.
  • 90° angled nozzle, 2.8 mm – 1 pc.
  • 90° angled nozzle, 6.2 mm – 1 pc.
  • 90° spray nozzle, 6 holes × 2.3 mm – 1 pc.
  • Flat spray nozzle, 5 holes × 1.5 mm – 1 pc.
  • Flat spray nozzle, 7 holes × 0.7 mm – 1 pc.
  • Slot nozzle, 10.5 × 1.0 mm – 1 pc.
  • Slot nozzle, 10.5 × 1.4 mm – 1 pc.
  • 1/4" in-line valve – 1 pc.
  • Valve with 1/4" male thread – 1 pc.
  • Assembly pliers – 1 pc.

Our coolant hose systems are compatible with Loc-Line systems and can be used interchangeably with compatible components.
