Cross coordinate table with rotary base MG-2C - 444 x 254 MM
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$2,193.36
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$1,783.22
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_STOL_KRZY_254/444
Description
Features and application:

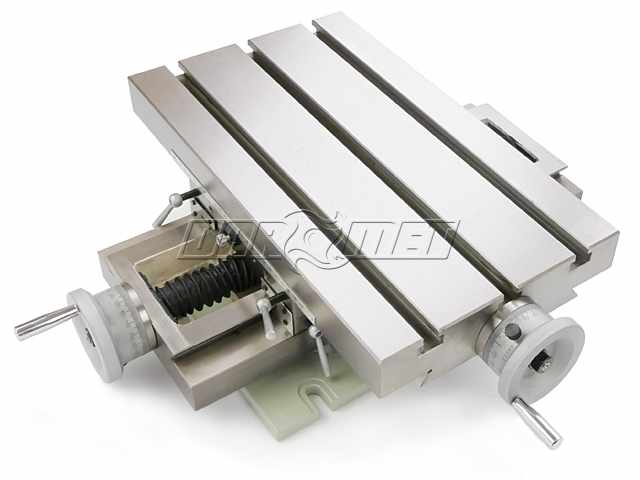

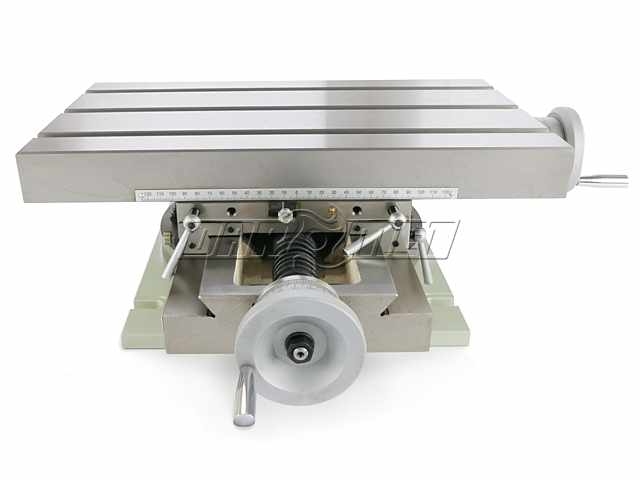

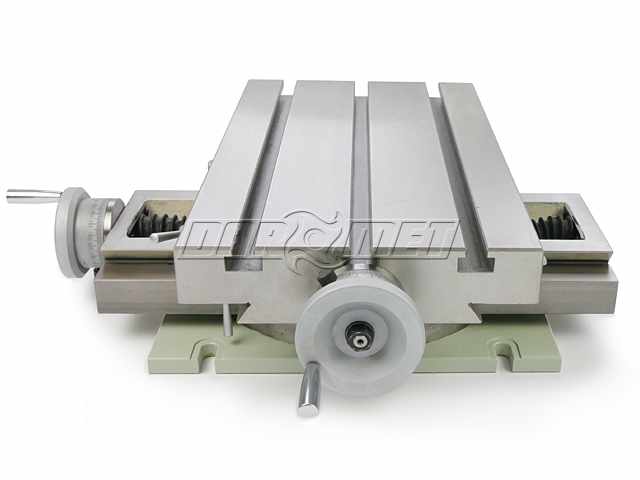

- The MG-2C cross table is a functional and universal device used mainly on milling machines, small drilling machines and other machine tools.
- Dovetail guides minimize the occurrence of backlash.

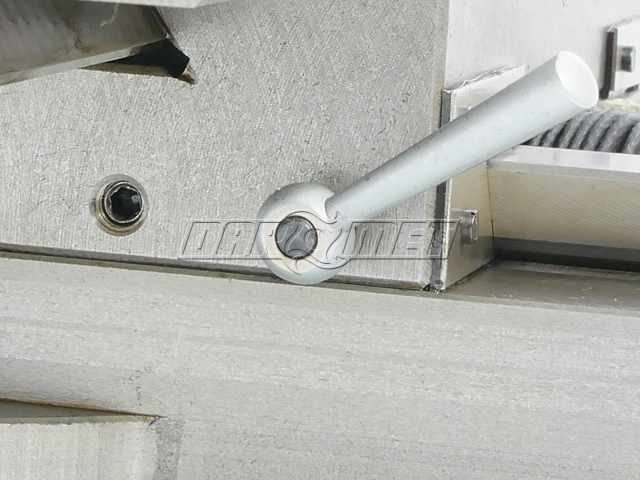

- The polished table surface and guides with adjustment strips guarantee precise operation of the coordinate table.

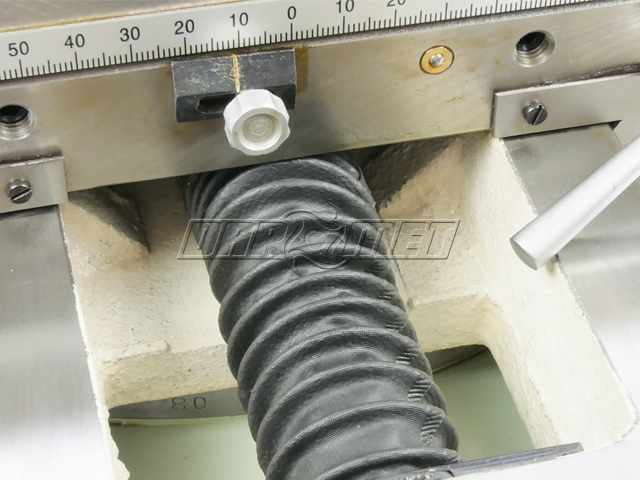

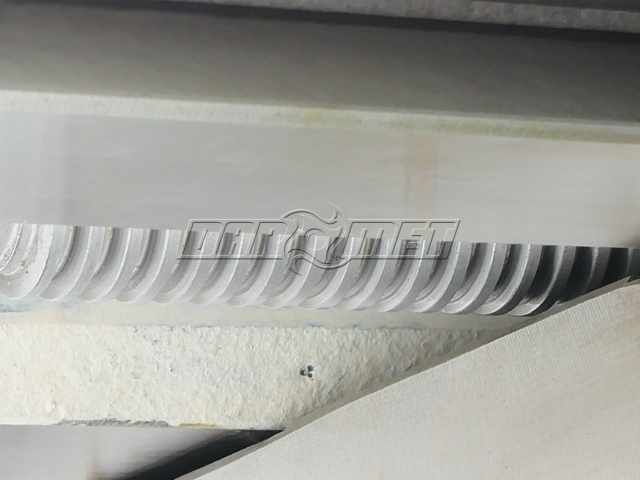

- Trapezoidal feed screw protected against contamination.

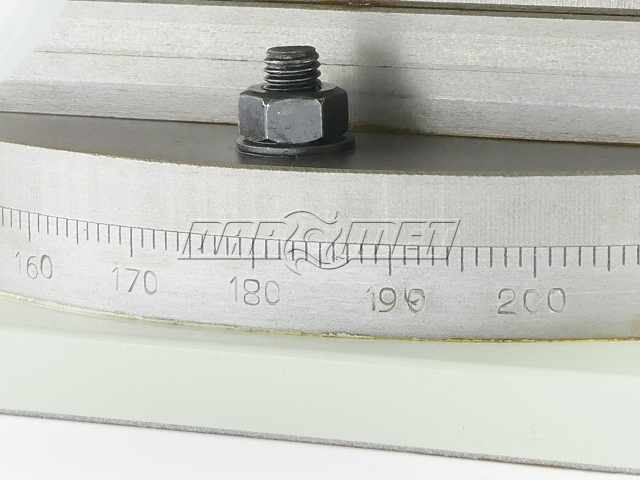

- The cross table is equipped with a 360° rotating base with a 1° scale.
- Made of cast iron, with three T-slots.
- Longitudinal and transverse feed - has an adjustable zero point.

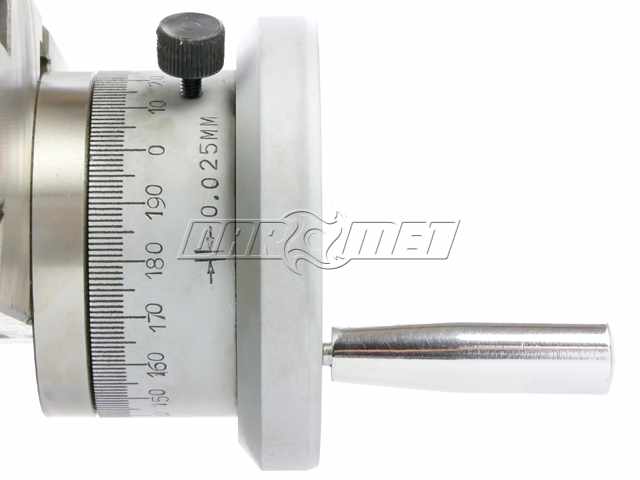

- Vernier scale with Feed cranks with clear graduations every 0.025 mm (1 turn of the knob = 5 mm)
Technical data:

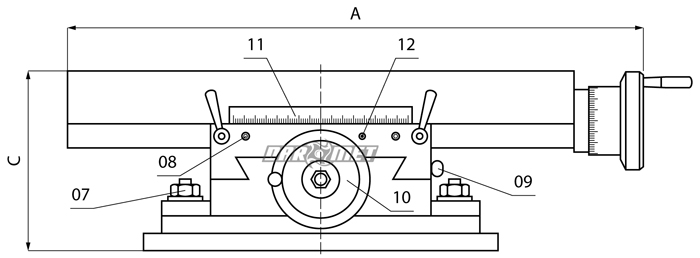

| Table length | 444 | mm |

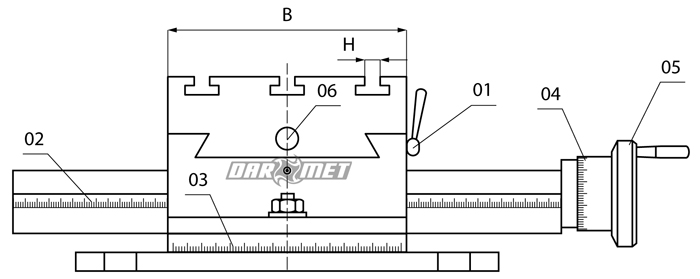

| Table width (B) | 254 | mm |
| Total length (A) | 495 | mm |
| Total height (C) | 153 | mm |

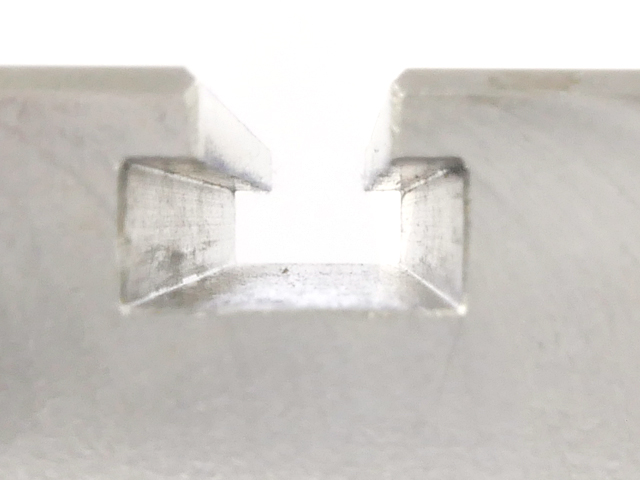

| T-slot width (H) | 14 | mm |
| T-slot spacing (I) | 80 | mm |
| Number of T-slots | 3 | |
| Cross feed | ± 114 | mm |
| Longitudinal feed | ± 76 | mm |
| Feed scale interval | 0.025 | mm |
| Feed per revolution | 5 | mm |

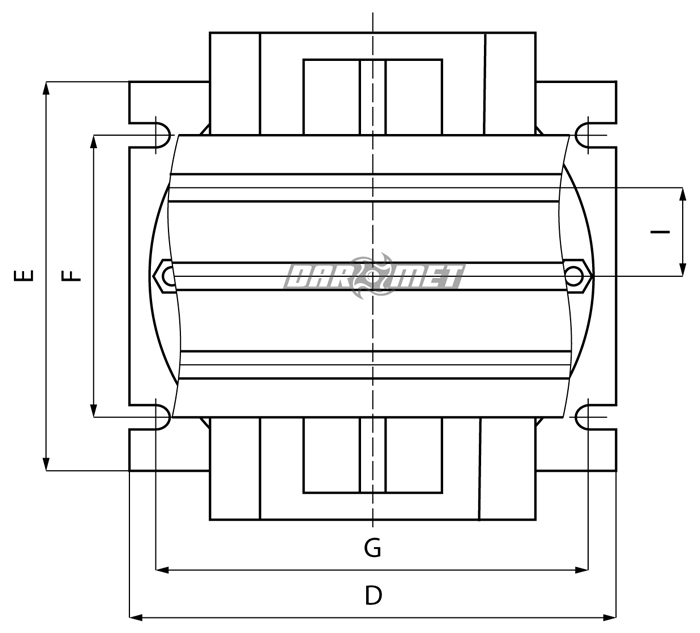

| Base dimension (D x E) | 284 x 344 | mm |
| Mounting hole spacing (G x F) | 244 x 248 | mm |
| Max. Item weight | 250 | kg |
| Weight | 80 | kg |
