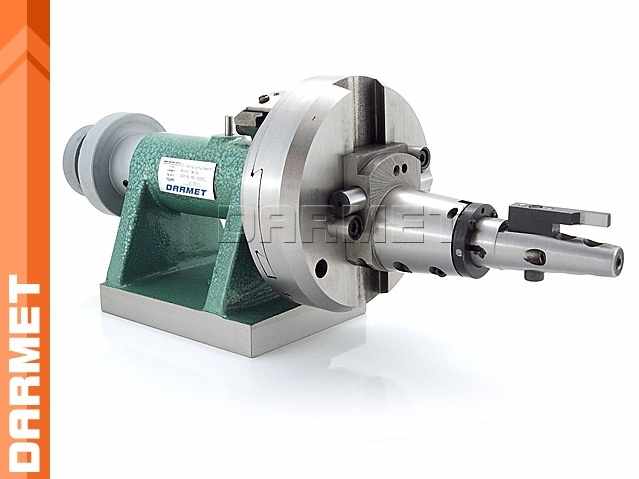

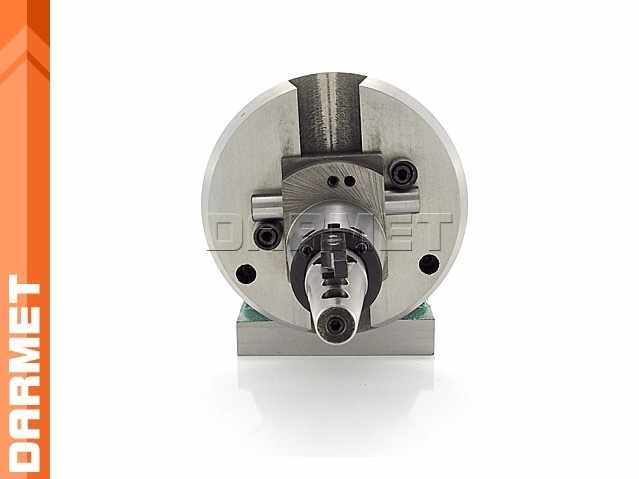

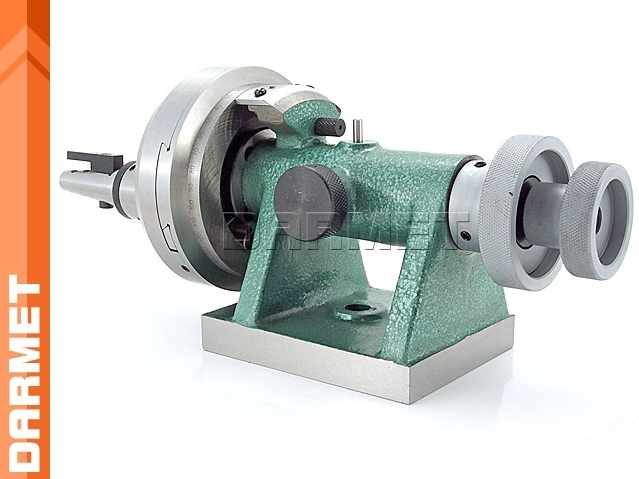

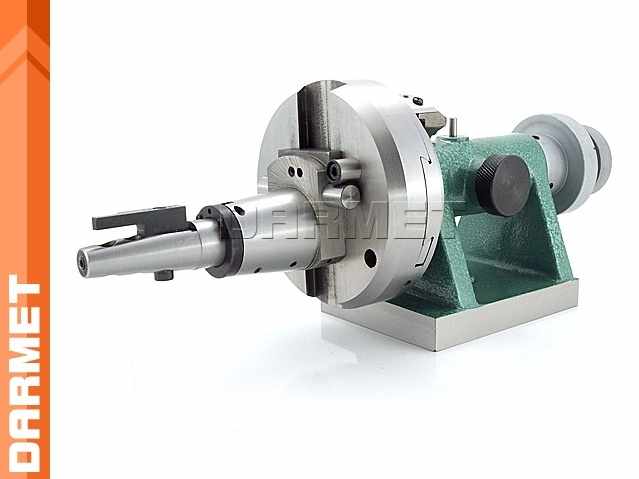

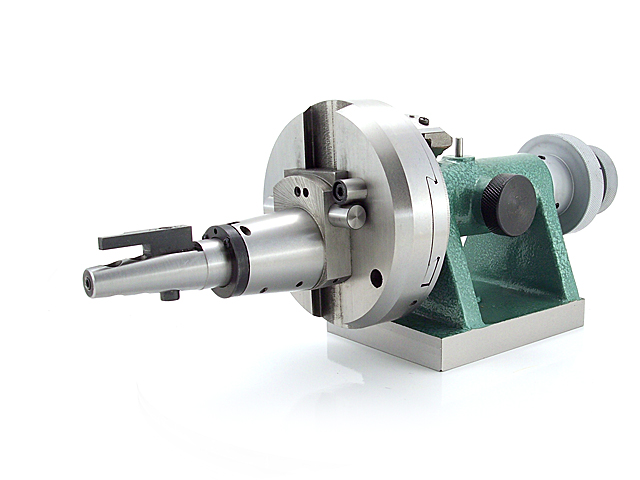

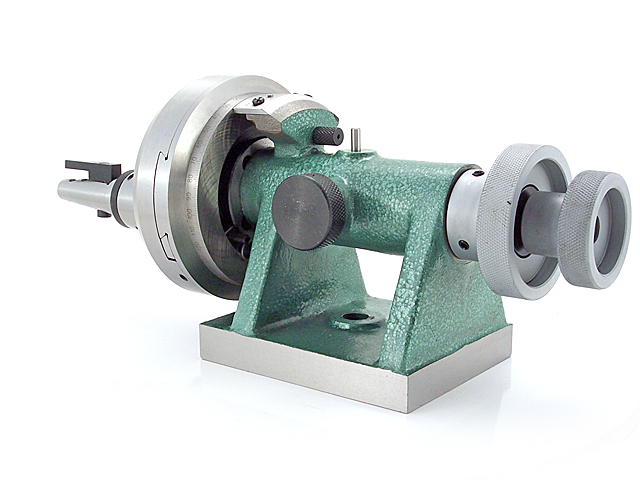

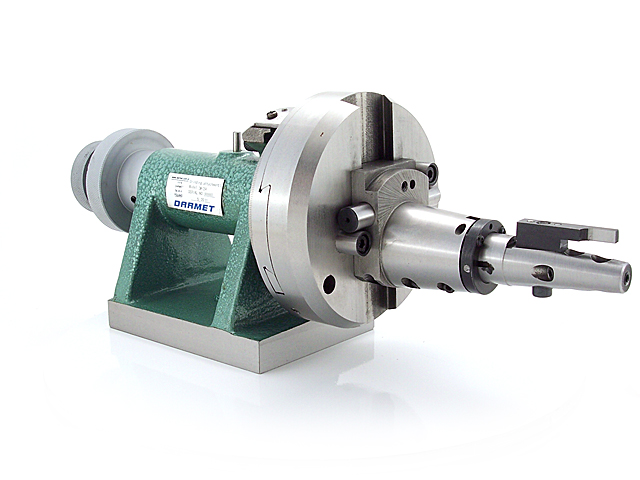

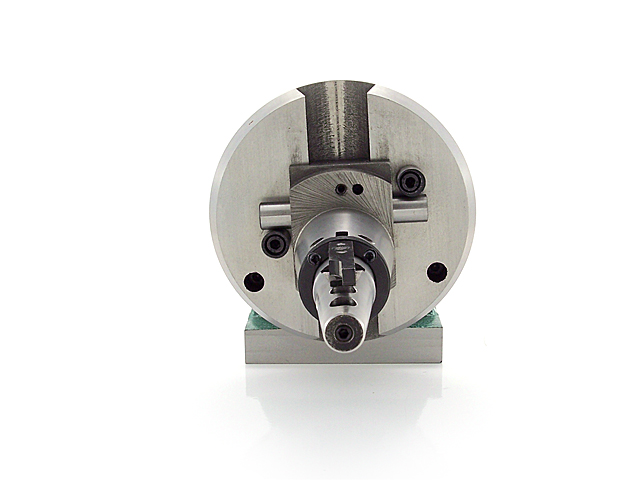

Device for grinding wheel edge and radius dressing (DM-284)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$539.90
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$438.95
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_URZ_284
Description
Properties and application:
- The device is used in tool shops and foundries

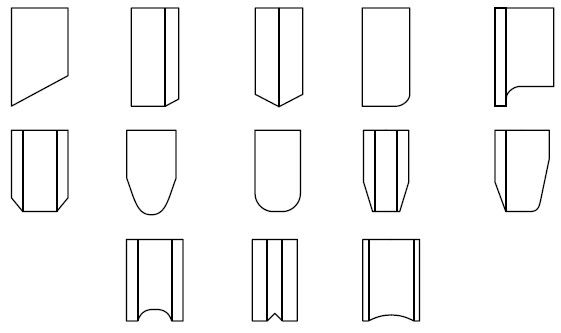

- The device is designed for dressing grinding wheels with profiles shown in the drawing below.
Technical data:
| Parameter | Value | Units |
|---|---|---|
| Maximum diameter of the grinding wheel to be processed | 300 | mm |
| Maximum dressing radius | 42 | mm |
| Maximum thickness of the grinding wheel to be processed | 100 | mm |
| Diameter of the root hole of the diamond dressing tool | 9.525 | mm |
| Dimensions of the supporting surface of the bed (length x width) | 134 x 105 | mm |

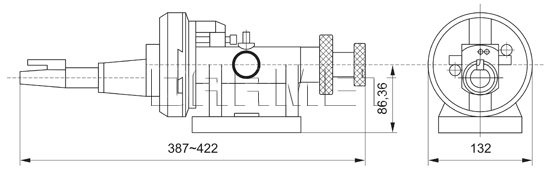

| Overall dimensions (length x width x height) | 383 x 132 x 152 | mm |
| Weight | 13 | kg |
