Double Precision Machine Steel Vise 100x2-90 mm FPZD DARMET
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$907.57
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$737.86
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FPZD_100_2X90
Description
Information:

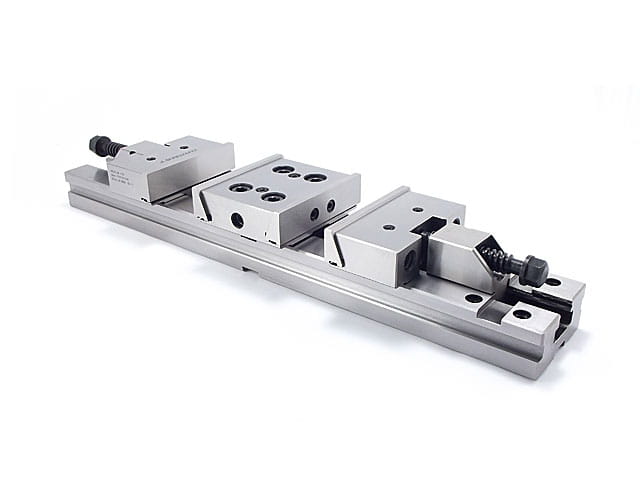

- Steel vice for use during precise work on numerically controlled machines.
- High accuracy of workmanship allows the vices to be used in a team. Maximum base deviation ±0.01 mm.
- Independent movable jaws enable the mounting of workpieces of different sizes.

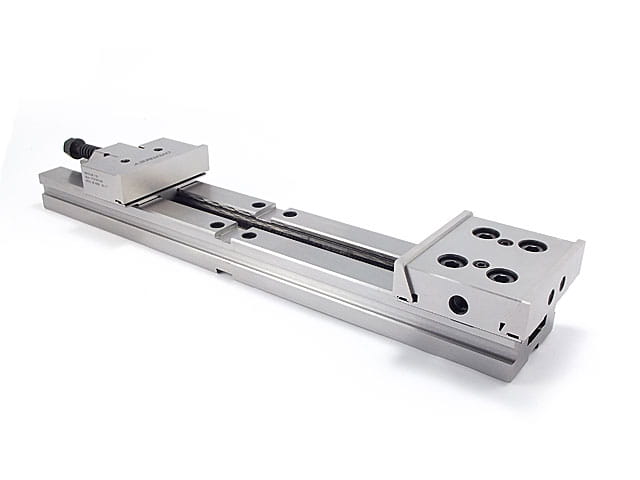

- 2-function vice for simultaneous machining of two workpieces or one long one after changing the jaw position.
- On both sides of the body along its entire length there are grooves for mounting the vice pressure clamps.
- Interchangeable jaw inserts ensure continuous operation of the clamping tool, as well as the clamping of appropriate elements (even shafts).
- The quick-clamping system in the movable jaw allows for immediate change of jaw position without time-consuming turning of the crank.
- The special design of the insert sockets presses the elements down against the body.
- The jaw holder is responsible for its locking position.
- The fixed jaw has threaded holes on both sides to attach special bumpers that stabilize the position of objects.
- On the bottom of the body there are channels for locating stones for mounting the tool in tables with T-slots.

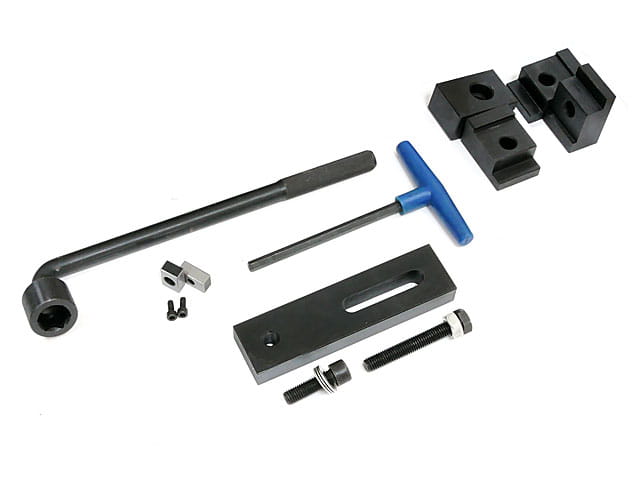

- The set includes necessary accessories for assembly and proper operation of the vise.
Specification:
| Parameter | Value |
|---|---|
| Amax | 290 mm |
| S | 100 mm |
| a | 90 mm |
| h | 30 mm |
| h1 | 35±0.01 mm |
| L | 460 mm |
| d | 16 mm |
| Clamping force | 3000 daN |
| Weight | 14 kg |
| Max. screw tightening torque | 20 Nm |
Vise accuracy:
What stones should I choose for my vice?
