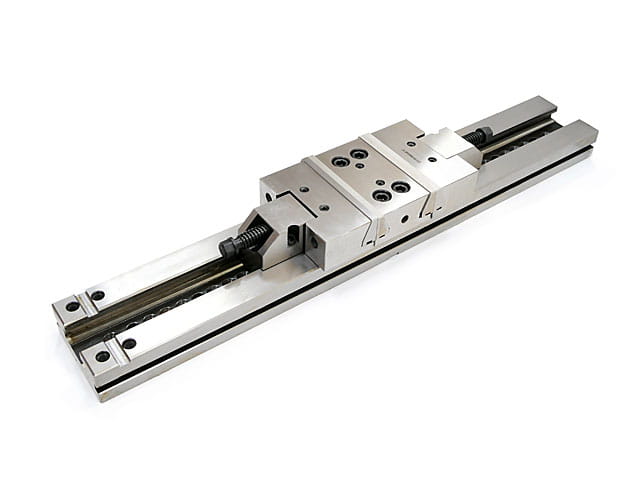

Double Precision Machine Steel Vise 175x2-170 mm FPZD DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$2,024.58
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$1,646.00
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FPZD_175_2X170
Description
Information:
- Steel vice for use during precise work on numerically controlled machines.
- High accuracy of workmanship allows the vices to be used in a team. Maximum base deviation ±0.01 mm.

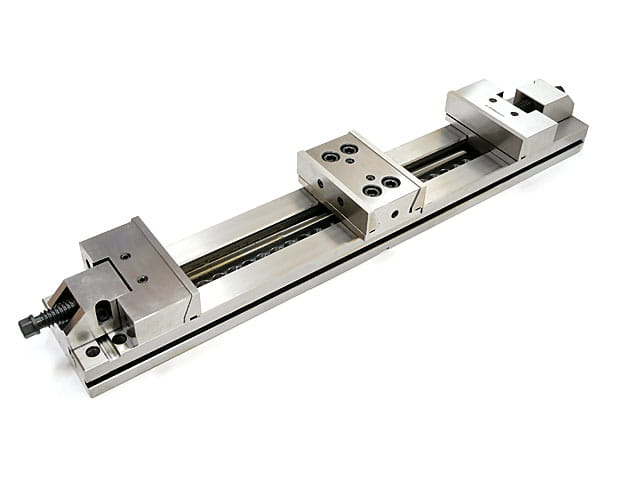

- Independent movable jaws enable the mounting of workpieces of different sizes.

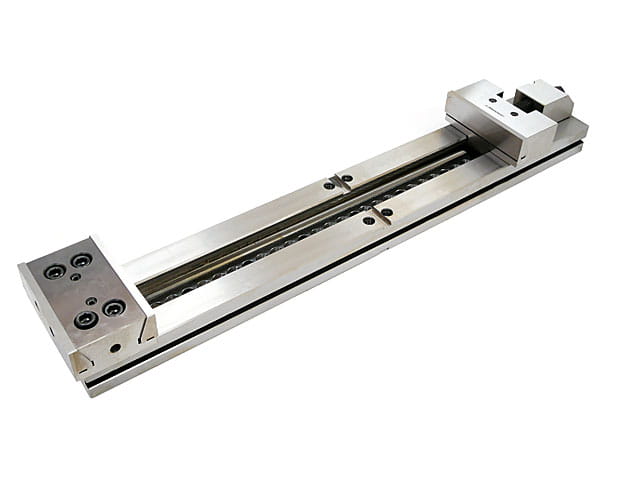

- 2-function vice for simultaneous machining of two workpieces or one long one after changing the jaw position.
- On both sides of the body along its entire length there are grooves for mounting the vice with pressure clamps.
- Interchangeable jaw inserts ensure continuous operation of the clamping tool, as well as the clamping of appropriate elements (even shafts).
- The quick-clamping system in the movable jaw allows for immediate change of jaw position without time-consuming turning of the crank.
- The special design of the insert sockets presses the elements down against the body.
- The jaw holder is responsible for its locking position.
- The fixed jaw has threaded holes on both sides to attach special bumpers that stabilize the position of objects.
- On the bottom of the body there are channels for locating stones for mounting the tool in tables with T-slots.

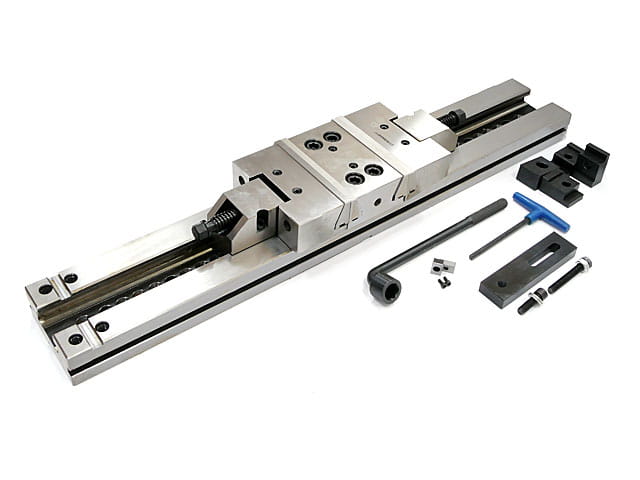

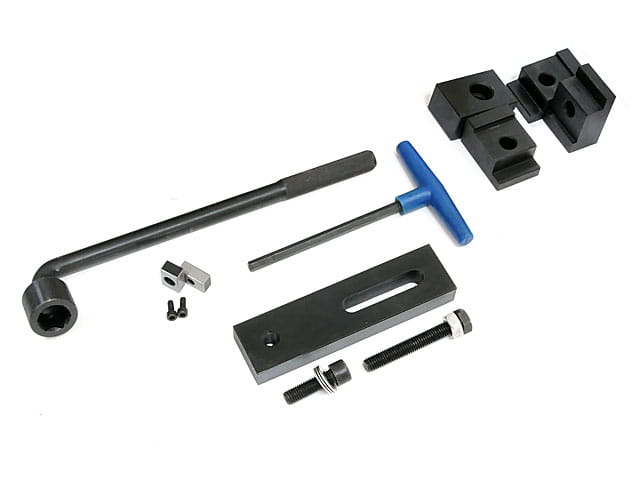

- The set includes necessary accessories for assembly and proper operation of the vise.
Specification:
| Parameter | Value |
|---|---|
| Amax | 500 mm |
| S | 175 mm |
| a | 170 mm |
| h | 60 mm |
| h1 | 58±0.01 mm |
| L | 766 mm |
| d | 16 mm |
| Clamping force | 6000 daN |
| Weight | 63 kg |
| Max screw tightening torque | 80 Nm |
Vise accuracy:
What stones should I choose for my vise?
