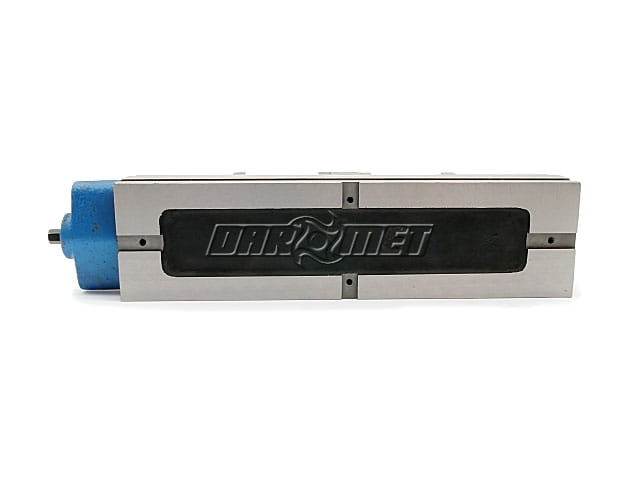

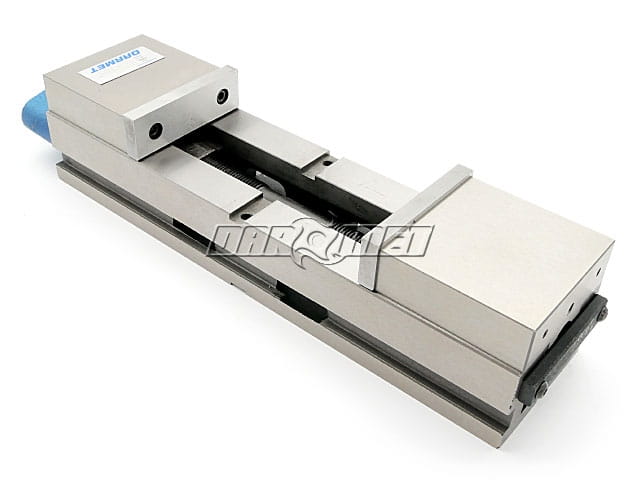

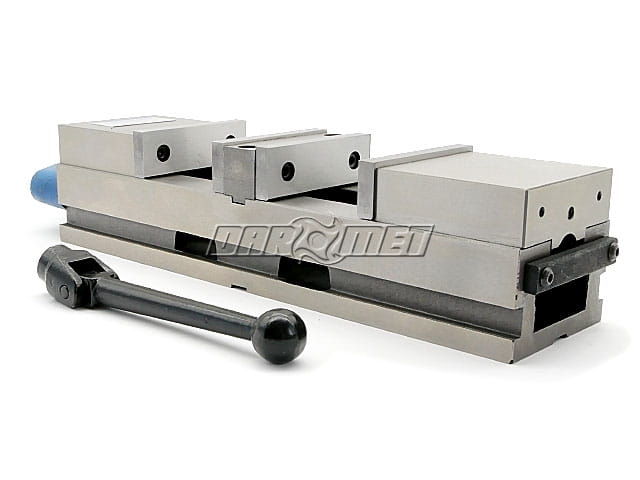

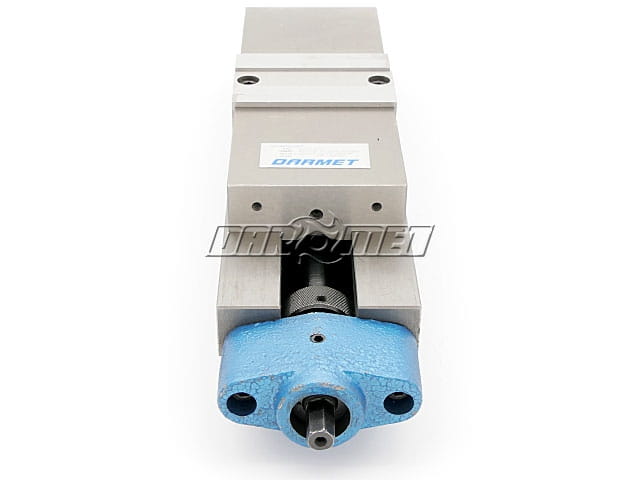

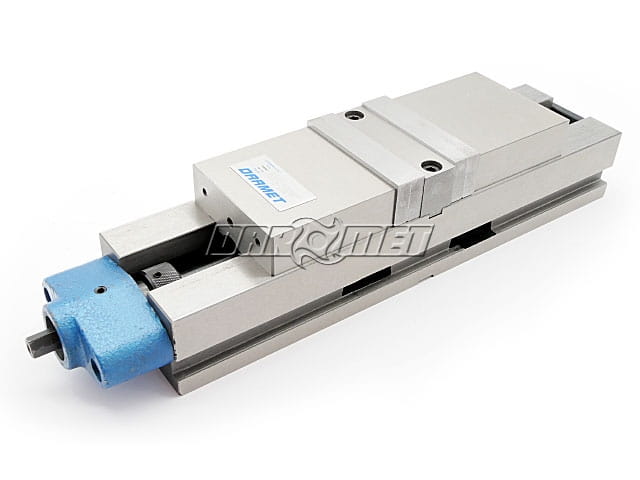

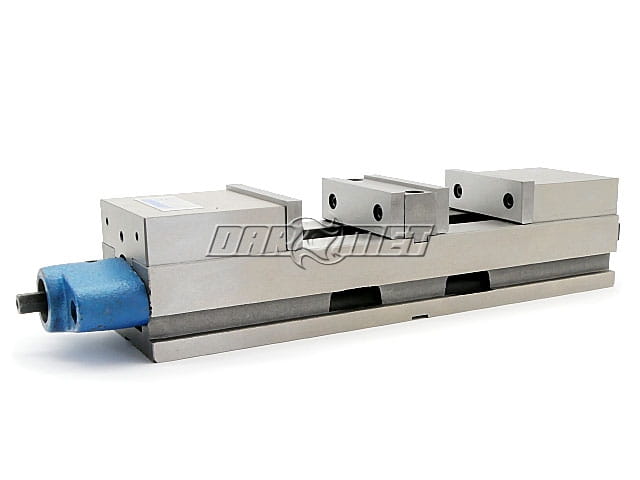

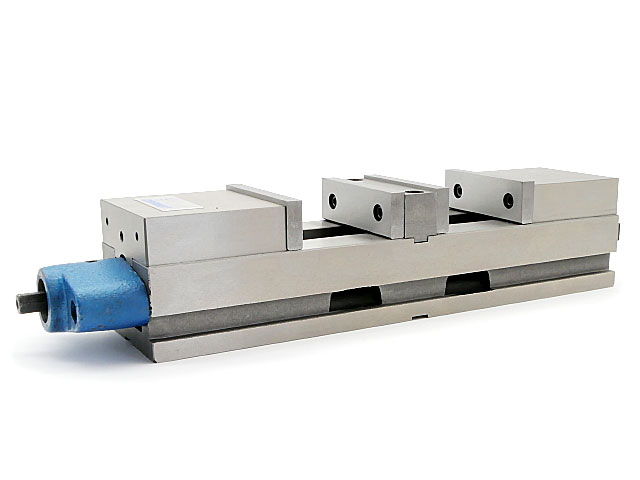

Double fixed milling machine vise 100-2x76 mm with jaw pressure FPQD DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$343.30
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$279.11
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FPQD_100_76
Description
Information:
- The clamping device designed for high strength is made of high-quality materials specially hardened.
- The body is made of cast iron hardened to approx. 40 HRC, while the steel jaws (fixed and movable) are hardened up to about 48-52 HRC.
- The appropriate construction of the movable jaws pulls the clamped element down to the bed.

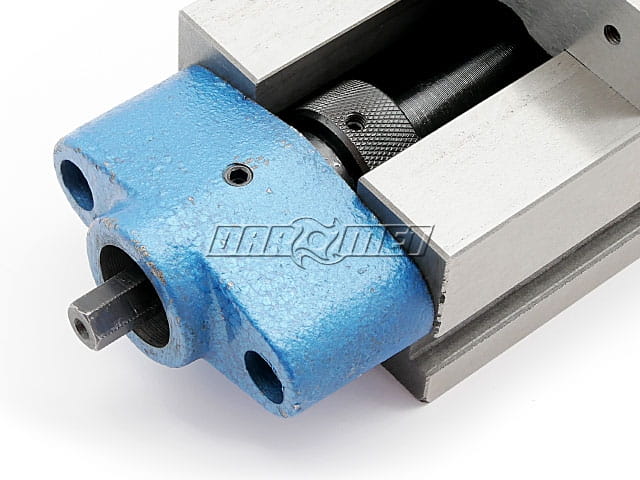

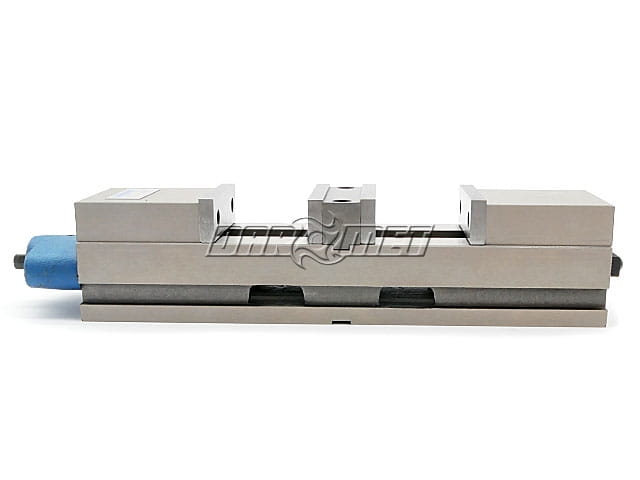

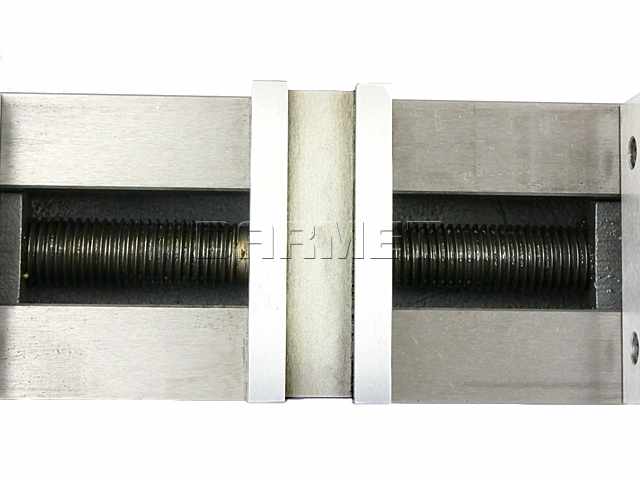

- A special combination of draw screw and supporting sleeve allows simultaneous clamping of objects of different sizes.
- The vise has grooves and slots to firmly attach it to the machining table using clamping elements.
- Another advantage is the special design of the jaws. They are narrower than the base so that the tool can also work in a side position, utilizing the entire surface of the inserts' clamping.
- Jaw inserts can be mounted on both sides of the tool. This provides many clamping combinations, even for flat objects resting on the jaw surfaces.
- Universal use even in EDM machines and CNC machining centers.
- Clamping workpieces that will not rest on the bed is done using parallel shims approximated in length to the width of the jaw inserts.
Specification:
| Parameter | Value |
|---|---|
| Jaw width | 100 mm |
| h | 32 mm |
| L1 | 67 mm |
| L2 | 106 mm |
| L3 | 171 mm |
| L4 | 209 mm |
| L5 | 391 mm |
| L6 | 457 mm |
| A | 14 mm |
| b | 14 mm |
| Body height | 61.5 mm |
| Weight | 15.8 kg |
Possible clamping methods for the workpiece:
Video showing the principle of double clamping in a machine vise:
