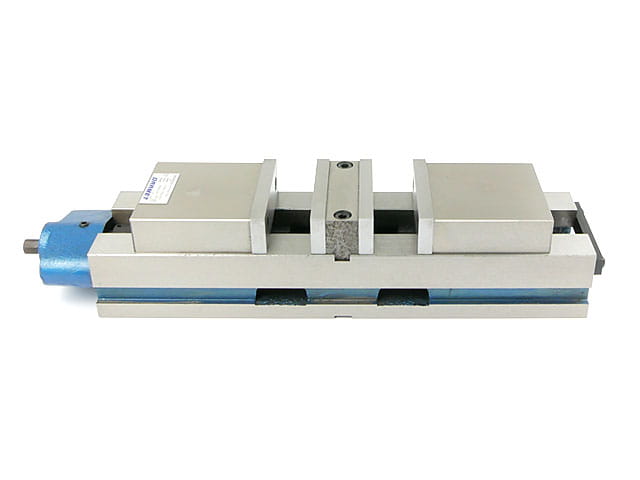

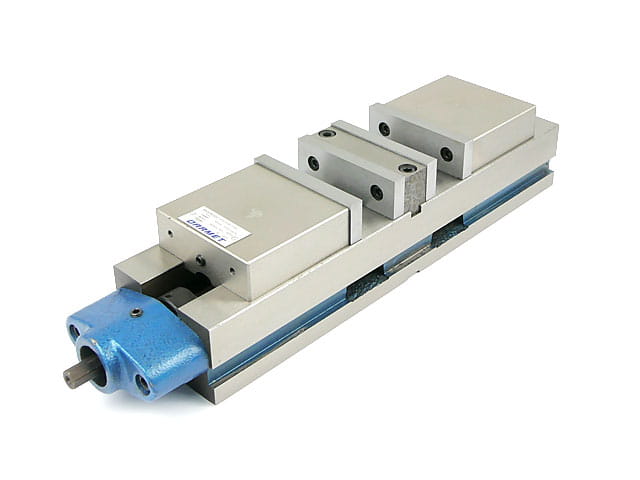

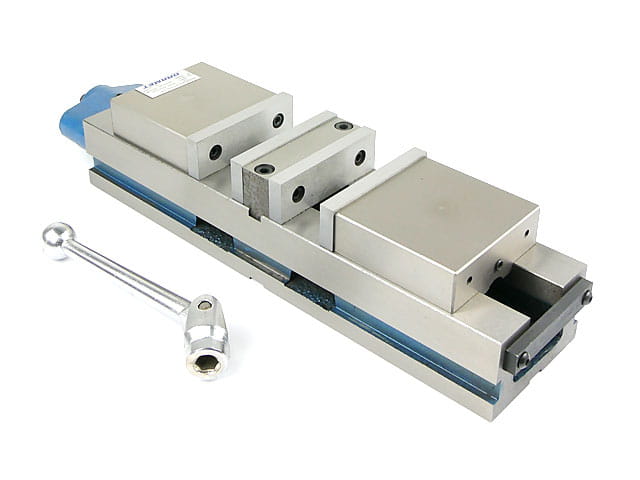

Double fixed milling machine vise 160-2x100 mm with jaw pressure FPQD DARMET
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$497.50
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$404.47
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_IM_FPQD_160_100
Description
Information:
- The clamping device designed for high strength is made of high-quality specially hardened materials.
- The body is made of cast iron hardened to approx. 40 HRC, while the steel jaws (fixed and movable) are hardened up to approx. 48-52 HRC.
- The proper design of the movable jaws pulls the clamped element down onto the base.
- A special combination of pull screw and supporting bushing allows simultaneous clamping of objects of different sizes.
- The vise has grooves and channels to firmly secure it on the machining table using clamping elements.
- Another advantage is the special jaw design. They are narrower than the base, so the device can also work in a side position, making use of the entire surface for inserting inserts.
- Jaw inserts can be mounted on both sides of the device. This provides many mounting combinations, even for flat objects, which can be rested on the jaw surfaces.
- Universal application even in EDM machines and CNC machining centers.
- Mounting of a workpiece that does not contact the base is done using parallel shims, close in length to the width of the jaw inserts.
Specification:
| Parameter | Value |
|---|---|
| Jaw width | 160±2 mm |
| h | 45 mm |
| L1 | 100 mm |
| L2 | 144 mm |
| L3 | 222 mm |
| L4 | 266 mm |
| L5 | 520 mm |
| L6 | 605 mm |
| A | 18 mm |
| b | 19 mm |
| Body height | 80±0.015 mm |
| Weight | 36 kg |

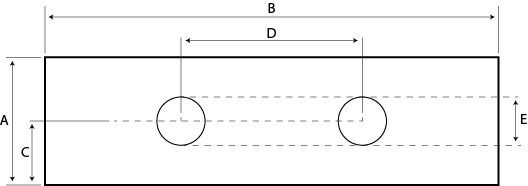

| Jaw size | |
|---|---|
| A | 45 mm |
| B | 160 mm |
| C | 22,5 mm |
| D | 64 mm |
| E | 17 mm |

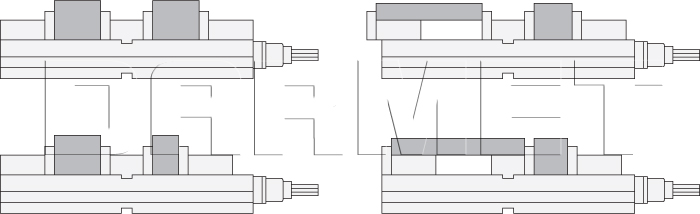

Possible ways of clamping the detail:

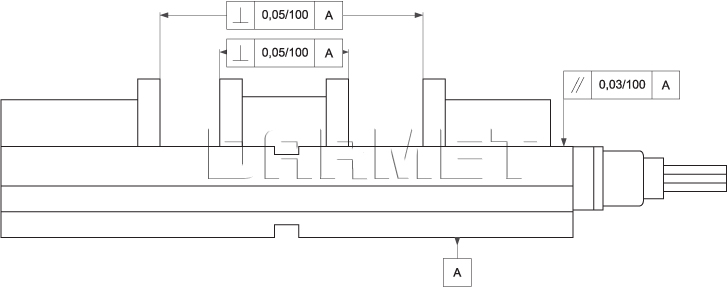

Vise accuracy:
Video demonstrating the operating principle of double clamping in the machine vise:
Which stones should I choose for my vise?
