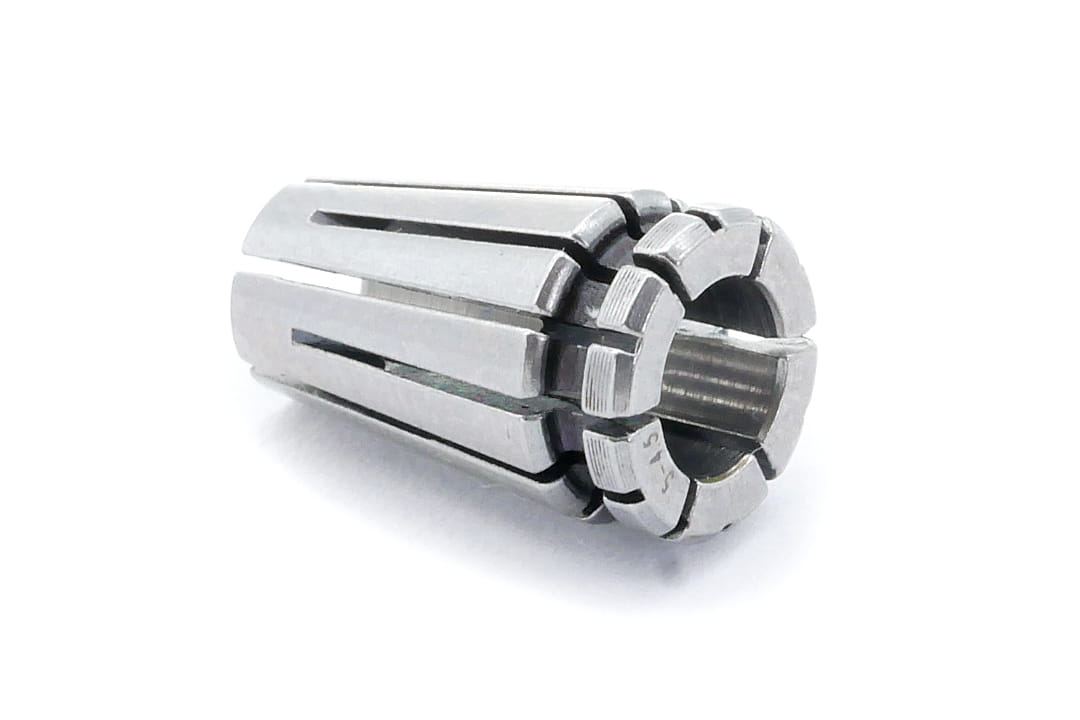

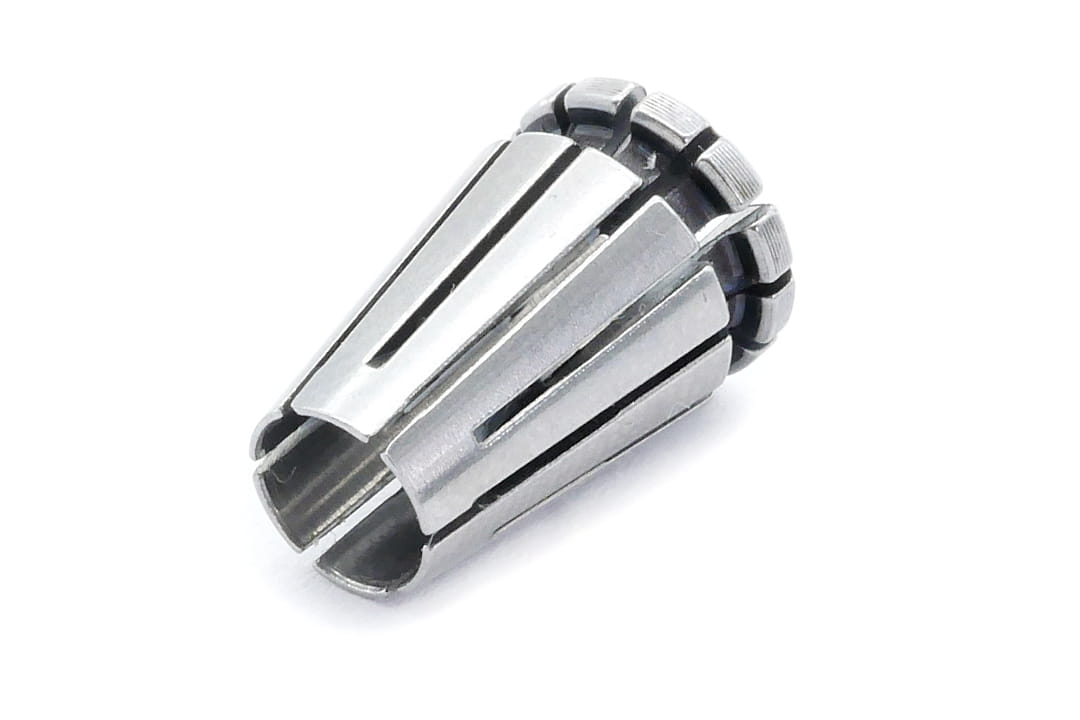

ER08 Collet – 1.5 mm – APX (7618)
Regular price:
Regular price:
product unavailable
add to wish list
Description
Features and Applications:
- ER collet for tools with cylindrical shank.
- Permissible runout: 0.010 ÷ 0.015 mm.

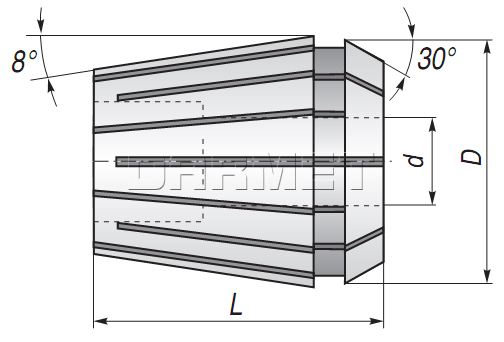

Technical data:
| Parameter | Value |
|---|---|
| d | 1,5 mm |
| D | 8,5 mm |
| L | 13,5 mm |
Mounting Collets in Clamping Nuts::
|
|
||
|
Collet Installation in the Clamping Nut |
Collet Properly Installed | Collet Removal |
Normy ER:
|
|
|||||||
| ER | d1 [mm] |
Clamping Range [mm] |
d2 [mm] |
d3 [mm] |
aAT3 | l1 [mm] |
l13 max [mm] |
|---|---|---|---|---|---|---|---|
| ER11 | 1÷7 | 0,5 | 11 | 11,5 | 8° | 18,0 | 6,6 |
| ER16 | 1÷10 | 0,5÷1 | 16 | 17,0 | 8° | 27,5 | 10,6 |
| ER20 | 1÷13 | 0,5÷1 | 20 | 21,0 | 8° | 31,5 | 11,5 |
| ER25 | 1÷16 | 0,5÷1 | 25 | 26,0 | 8° | 34,0 | 12 |
| ER32 | 1÷20 | 0,5÷1 | 32 | 33,0 | 8° | 40,0 | 13 |
| ER40 | 1÷30 | 1 | 40 | 41,0 | 8° | 46,0 | 15 |
- Insert the collet into the nut at an angle.
- Hook the collet slot onto the eccentric or cylindrical lug of the nut (see Fig. A).
- Press the collet into the nut (see Fig. B).
- Screw the nut with the pressed collet onto the chuck so that the tool can be properly secured.
Maximum clamping diameters depending on the ER collet type:
Availability information is based on data from APX and may differ from the actual stock. Please contact us before purchase to confirm current inventory status.
All reviews (positive and negative) are displayed. We don't verify that they come from customers who have purchased the product.
