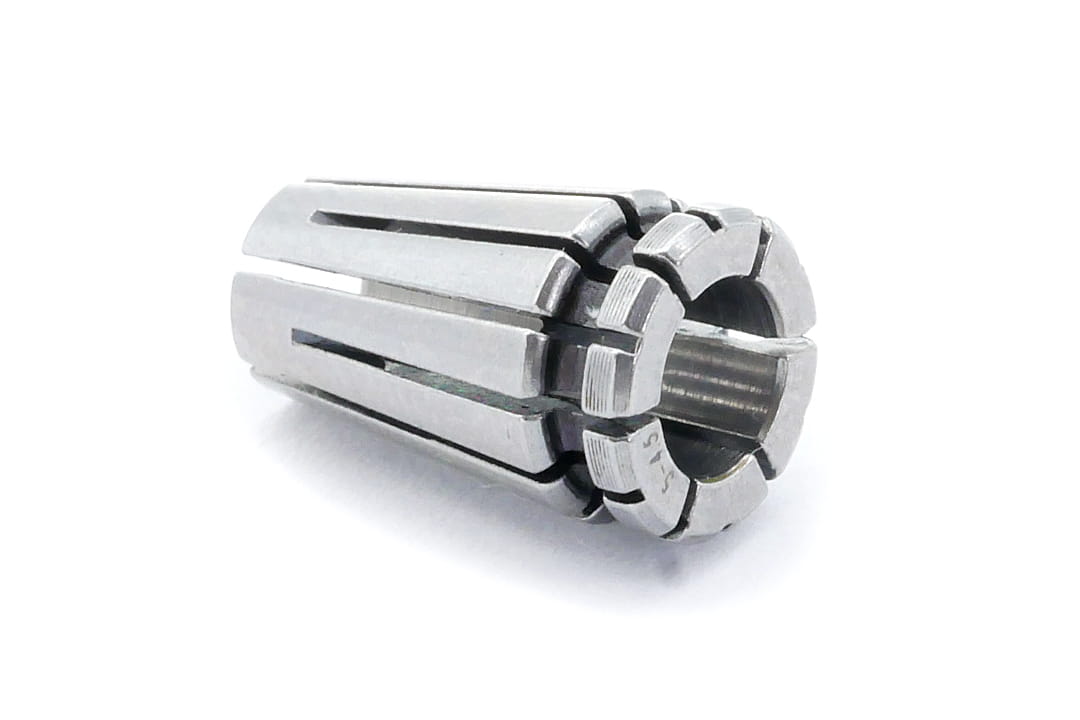

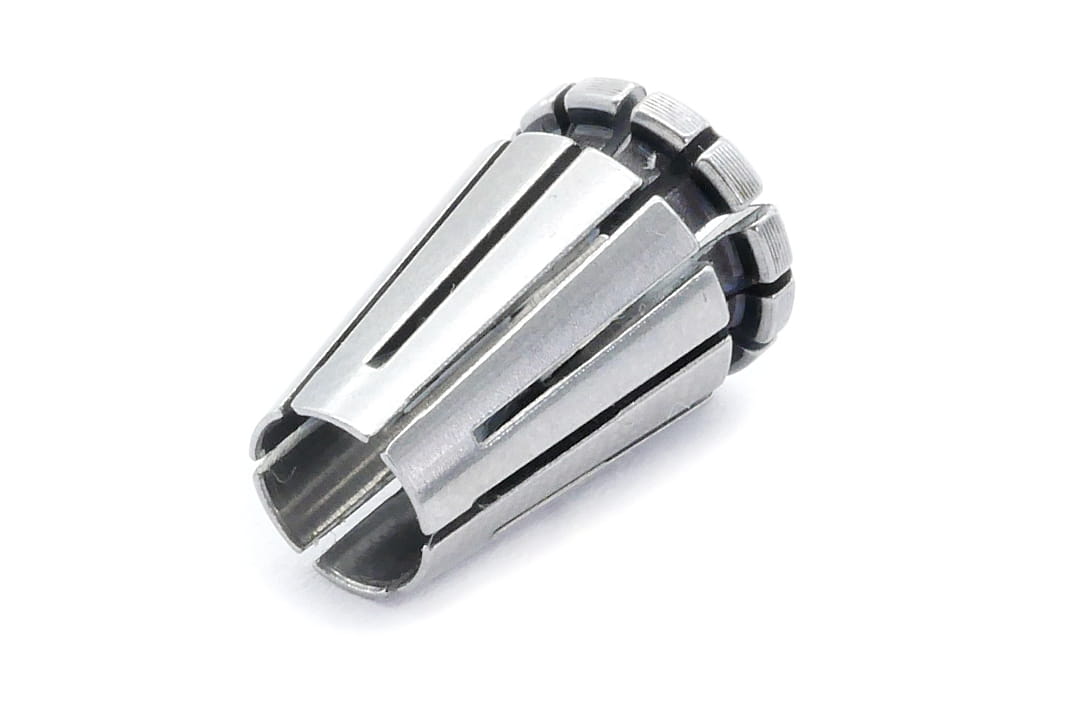

ER Collet for cylindrical shank tools – precision clamping.

ER08 Collet | 3 mm - APX (7618)

Availability: brak towaru

Gross price: $14.97

incl. 23% TAX, excl. shipping costs

Regular price:

14.97

The lowest price during 30 days prior to the reduction:

Net price: $12.17

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 5 points []

product unavailable

add to wish list

Rating:

Vendor: APX

Product code: APX_ER08.D03

Description

Features and Applications:

ER collet for tools with cylindrical shank.
Permissible runout 0.010 ÷ 0.015 mm.

Technical data:

Technical drawing of collet chuck

Parameter	Value
d	3 mm
D	8,5 mm
L	13,5 mm

Mounting collets in nuts:

Collet Installation

Mounting the collet

in the chuck nut

Collet properly mounted

Demontaż tulejki zaciskowej

ER standards:

ER	d₁ [mm]	Clamping range [mm]	d₂ [mm]	d₃ [mm]	a_AT3	l₁ [mm]	l_{13 max} [mm]

ER11	1÷7	0,5	11	11,5	8°	18,0	6,6
ER16	1÷10	0,5÷1	16	17,0	8°	27,5	10,6
ER20	1÷13	0,5÷1	20	21,0	8°	31,5	11,5
ER25	1÷16	0,5÷1	25	26,0	8°	34,0	12
ER32	1÷20	0,5÷1	32	33,0	8°	40,0	13
ER40	1÷30	1	40	41,0	8°	46,0	15

To properly install the ER collet in the chuck, follow these steps:

Insert the collet at an angle into the nut.
Hook the collet groove onto the eccentric or cylindrical protrusion of the nut (see Fig. A).
Press the collet into the nut (see Fig. B).
Screw the nut with the pressed collet onto the holder to enable securing the tool.

Maximum clamping diameters by ER collet type:

Collet Diameters

Availability information is based on data from APX and may differ from actual stock. Please contact us to confirm current inventory before purchase.
