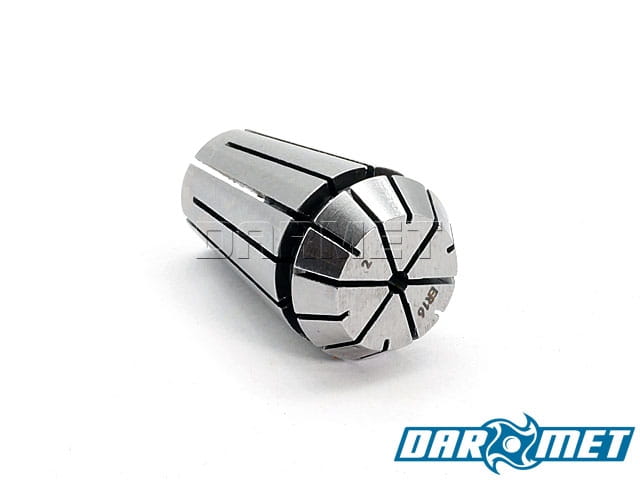

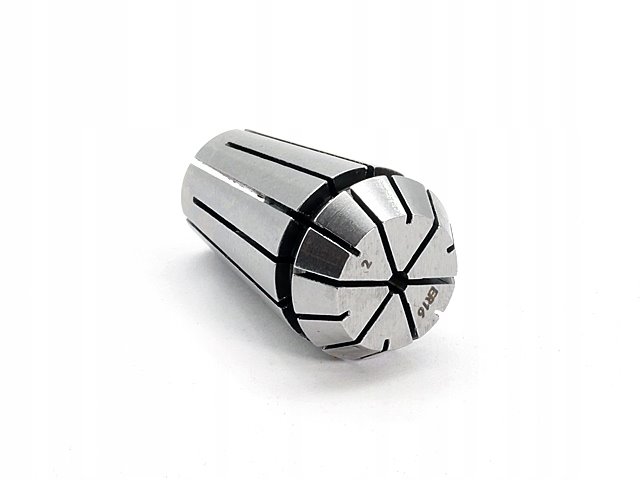

ER16 collet sleeve - 2 mm - DARMET
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$10.51
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.54
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER16_02
Description
Properties and Application:
- ER collet for tools with cylindrical shank.
- Marking applied on the face of the collet.
- Collet nut compatible with ER nuts.
- Slots allow the collet to spring, turning the nut causes the hole to narrow and expand.
- Clamping range: 2.0 - 1.5 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 2 | mm |
| D | 16 | mm |
| D1 | 17 | mm |
| D2 | 13.8 | mm |
| L | 27.5 | mm |
| L1 | 6.26 | mm |
| L2 | 4.0 | mm |
| L3 | 2.7 | mm |
Assembly of collets in nuts:
|
| ||
| Mounting the collet in the nut holder | Collet properly mounted | Removing the collet |
To properly mount the ER collet in the holder, you should:
- Insert the collet at an angle into the nut
- Hook the collet slot onto the eccentric or cylindrical protrusion of the nut (fig. A)
- Push the collet into the nut (fig. B)
- Screw the nut with the pressed-in collet onto the holder so that the tool to be machined can be clamped
Maximum clamping diameters depending on the type of ER collet:
