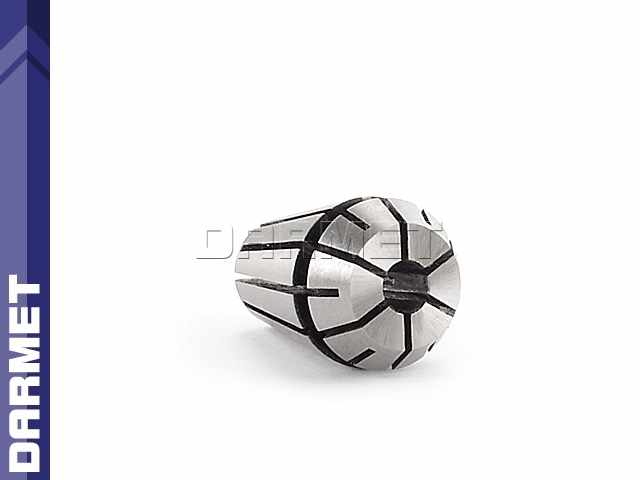

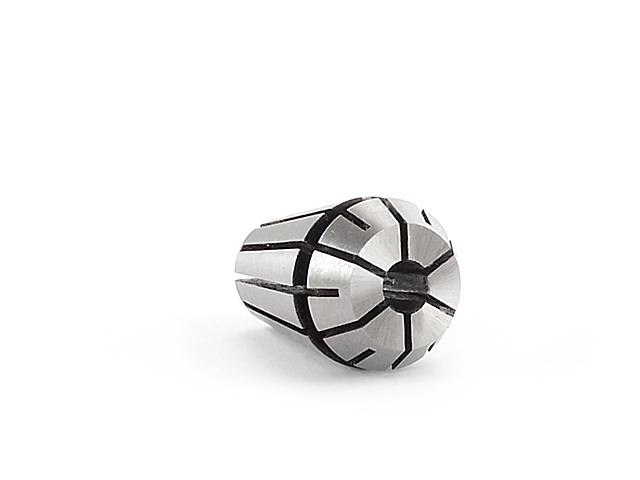

ER16 collet sleeve - 6 mm - DARMET
Availability:
brak towaru
Gross price:
$10.51
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.54
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER16_06
Description
Properties and Applications:
- ER collet for tools with cylindrical shank.
- Marking applied on the collet face.
- Basket compatible with ER nuts.
- Slots allow the collet to spring; turning the nut causes the hole to contract and expand.
- Clamping range: 6.0 - 5.1 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 6 | mm |
| D | 16 | mm |
| D1 | 17 | mm |
| D2 | 13.8 | mm |
| L | 27.5 | mm |
| L1 | 6.26 | mm |
| L2 | 4.0 | mm |
| L3 | 2.7 | mm |
Mounting Collets in Nuts:
|
| ||
| Mounting the clamping collet in the nut holder | Properly mounted collet | Dismounting the clamping collet |
To correctly mount the ER clamping collet in the holder, you need to:
- Insert the collet at an angle into the nut.
- Hook the collet slot onto the eccentric or cylindrical protrusion of the nut (fig. A).
- Press the collet into the nut (fig. B).
- Screw the nut with the pressed collet to the holder so that the tool can be clamped.
Maximum clamping diameters depending on the ER collet type:
