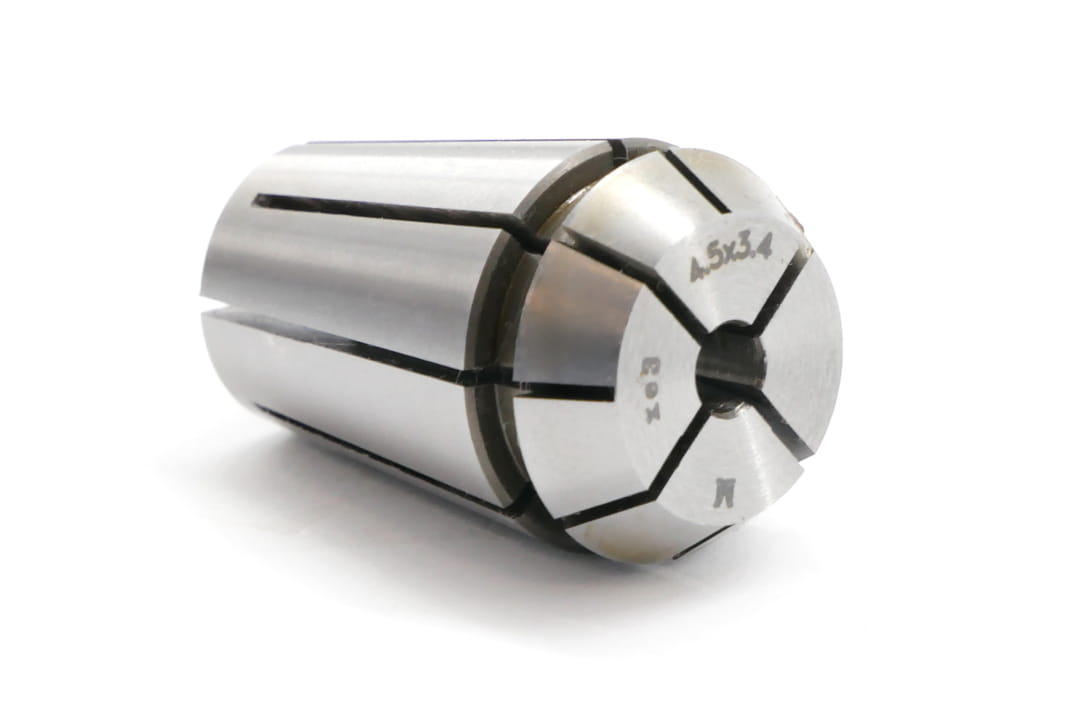

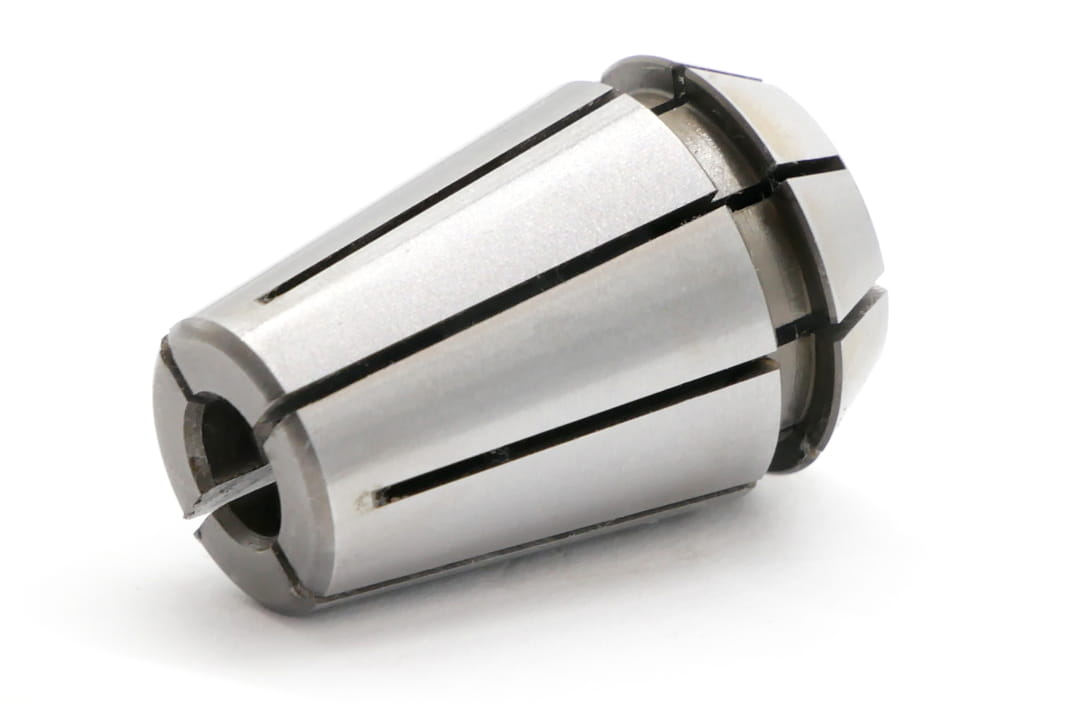

ER20-M Collet 4 mm | For M4 Thread Taps - APX (7618)
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$33.39
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$27.15
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Description
Features and Applications:
- ER collet for M4 machine taps.
- Used with ER collet holders for threading operations.
- Available in sealed versions for internal coolant use.
Technical data:
| Parameter | Value |
|---|---|
| M | 4 |
| d | 4,5 mm |
| SW | 3,4 mm |
Mounting collets in nuts:
- Insert the collet at an angle into the nut.
- Hook the collet groove onto the eccentric or cylindrical protrusion of the nut (fig. A).
- Press the collet fully into the nut (fig. B).
- Screw the nut with the pressed collet onto the holder to secure the tool.
- Collet removal (fig. C).
ER collet types:
|
|
|||||||
| ER | d1 [mm] |
Clamping range [mm] |
d2 [mm] |
d3 [mm] |
aAT3 | l1 [mm] |
l13 max [mm] |
|---|---|---|---|---|---|---|---|
| ER11 | 1÷7 | 0,5 | 11 | 11,5 | 8° | 18,0 | 6,6 |
| ER16 | 1÷10 | 0,5÷1 | 16 | 17,0 | 8° | 27,5 | 10,6 |
| ER20 | 1÷13 | 0,5÷1 | 20 | 21,0 | 8° | 31,5 | 11,5 |
| ER25 | 1÷16 | 0,5÷1 | 25 | 26,0 | 8° | 34,0 | 12 |
| ER32 | 1÷20 | 0,5÷1 | 32 | 33,0 | 8° | 40,0 | 13 |
| ER40 | 1÷30 | 1 | 40 | 41,0 | 8° | 46,0 | 15 |
Availability is for informational purposes based on data from APX and may differ from actual stock. Please contact us to confirm current inventory before purchasing.
