ER25 Collet Chuck – DIN40 | 60 mm Length – DARMET (DM-400)
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$46.90
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$38.13
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM400_ER25_DIN40_60
Description
Features and Applications:
- This through collet chuck is designed for ER25 collets to securely hold tools with cylindrical shanks.
- The taper holder follows DIN 69871 (DIN40) standards and is finished with an internal M16 thread.
- Suitable for use in conventional and CNC machine tools.
- Tightening standard ER25 nuts requires a hook or multi-point ER25 wrench, which is not included.
- For easier tool mounting in the chuck, a mounting base can be used (not included in the set).

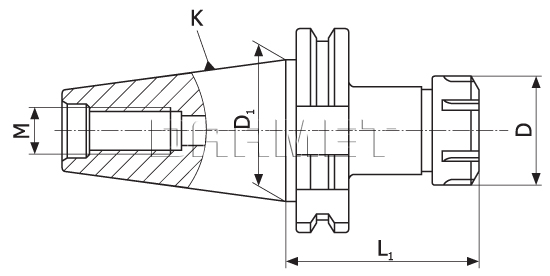

Technical data:
| Parameter | Value |
|---|---|
| K (DIN69871) | SK40 |
| Clamping collet | ER25 |
| D | 42 mm |
| D1 | 44,45 mm |
| L1 | 60 mm |
| M | M16 |
| Weight | 1,3 kg |
Technical information: DIN 69871 shank.
Video presentation on how to properly mount the collet into the chuck:
