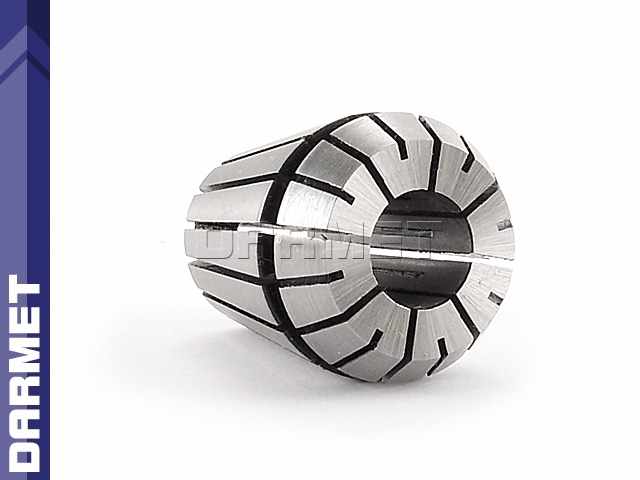

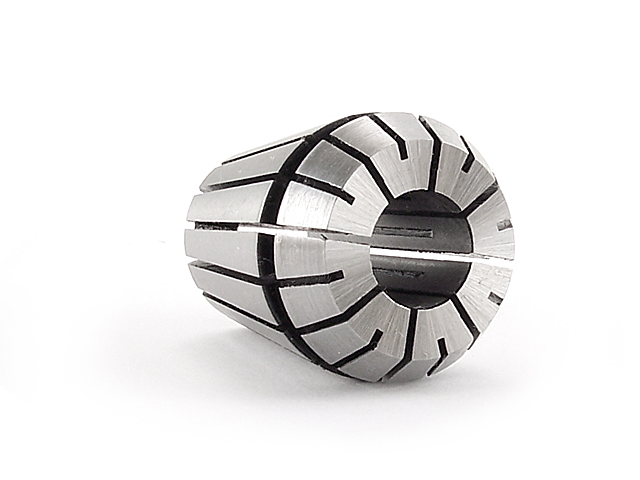

ER25 collet sleeve - 10 mm - DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$10.51
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.54
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER25_10
Description
Features and Application:
- ER25 collet for tools with cylindrical shanks.
- The collets fit ER25 collet chucks.
- ER25 nuts are used for wedging and clamping the collet holder.
- The slots allow the collet to spring.
- Clamping range: 10.0 - 9.0 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 10 | mm |
| D | 25 | mm |
| D1 | 26 | mm |
| D2 | 22.0 | mm |
| L | 34.0 | mm |
| L1 | 6.66 | mm |
| L2 | 5.0 | mm |
| L3 | 3.1 | mm |
Installing collets in nuts:
|
| ||
| Installing the collet in the chuck nut | Collet properly installed | Removing the collet |
To properly install the ER collet in the chuck, you should:
- Insert the collet at an angle into the nut.
- Hook the collet slot onto the eccentric or cylindrical protrusion of the nut (fig. A).
- Press the collet into the nut (fig. B).
- Thread the nut with the pressed collet onto the chuck so that it is possible to clamp the tool being machined.
Maximum clamping diameters depending on the type of ER collet:
