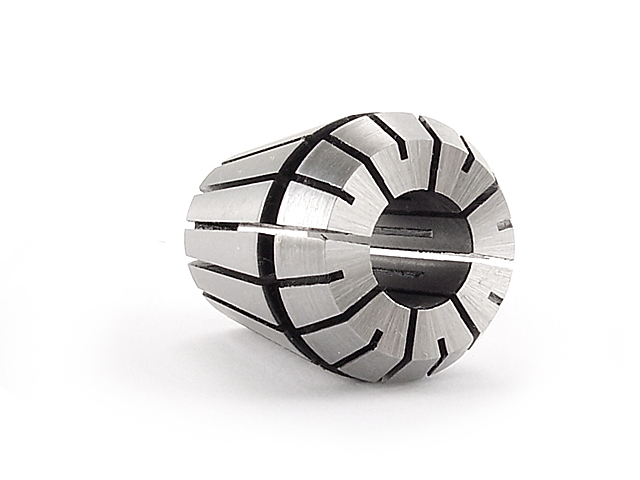

ER25 collet sleeve - 12 mm - DARMET
Availability:
in stock
Dispatched within:
24 hours
Gross price:
$10.04
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.17
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER25_12
Description
Properties and Application:
- ER25 collet for tools with a cylindrical shank.
- Collets fit ER25 collet chucks.
- ER25 nuts are used for wedging and clamping the collet.
- Grooves allow the collet to spring.
- Clamping range: 12.0 - 11.0 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 12 | mm |
| D | 25 | mm |
| D1 | 26 | mm |
| D2 | 22.0 | mm |
| L | 34.0 | mm |
| L1 | 6.66 | mm |
| L2 | 5.0 | mm |
| L3 | 3.1 | mm |
Assembly of collets in nuts:
|
| ||
| Assembly of the collet in the nut of the chuck | Collet correctly installed | Disassembly of the collet |
To properly install the ER collet in the chuck, you should:
- Insert the collet at an angle into the nut.
- Hook the groove of the collet onto the eccentric or cylindrical projection of the nut (Fig. A).
- Press the collet into the nut (Fig. B).
- Screw the nut with the pressed collet onto the chuck so that the tool to be machined can be clamped.
Maximum clamping diameters depending on the ER collet type:
