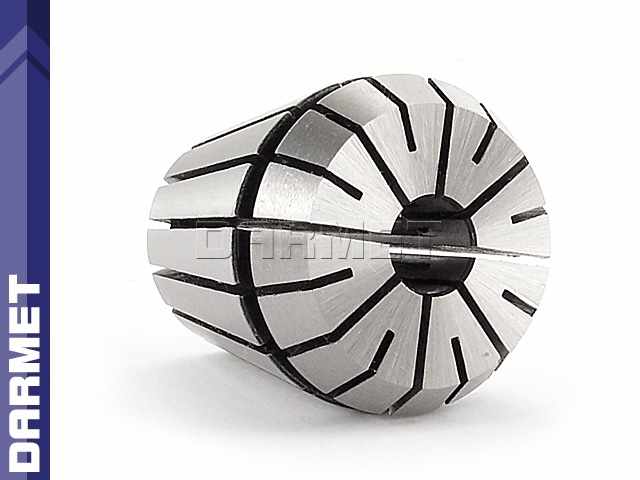

ER32 collet - 10 mm - DARMET
Availability:
brak towaru
Gross price:
$10.68
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.68
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER32_10
Description

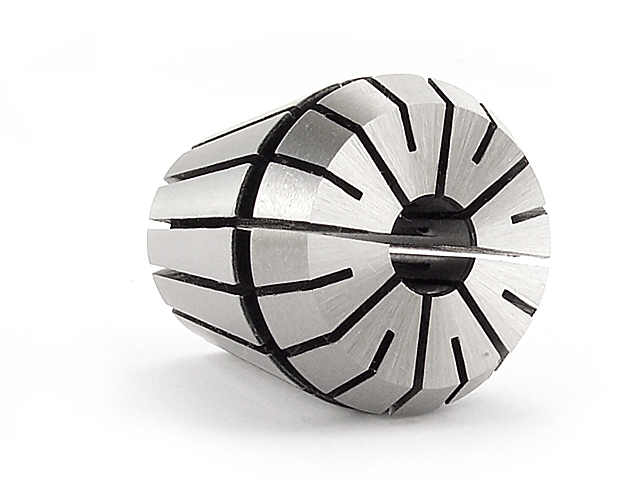

Properties and applications:
- ER32 collet for tools with a cylindrical shank.
- Collets fit ER32 clamping holders.
- ER32 nuts are used for wedging and clamping the collet.
- Slots allow the collet to spring.
- The ER collet holder features a long service life.
- Clamping range: 10.0 - 9.0 mm.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| d | 10 | mm |
| D | 32 | mm |
| D1 | 33 | mm |
| D2 | 29.2 | mm |
| L | 40 | mm |
| L1 | 7.16 | mm |
| L2 | 5.5 | mm |
| L3 | 3.6 | mm |
Installing collets in nuts:
|
| ||
| Installing the collet in the holder nut | Collet properly installed | Removing the collet |
To properly install the ER collet in the holder, you should:
- Insert the collet at an angle into the nut
- Engage the groove of the collet with the eccentric or cylindrical protrusion of the nut (fig. A)
- Press the collet into the nut (fig. B)
- Screw the nut with the pressed collet onto the holder so that it is possible to clamp the tool to be machined
Maximum clamping diameters depending on the type of ER collet:
