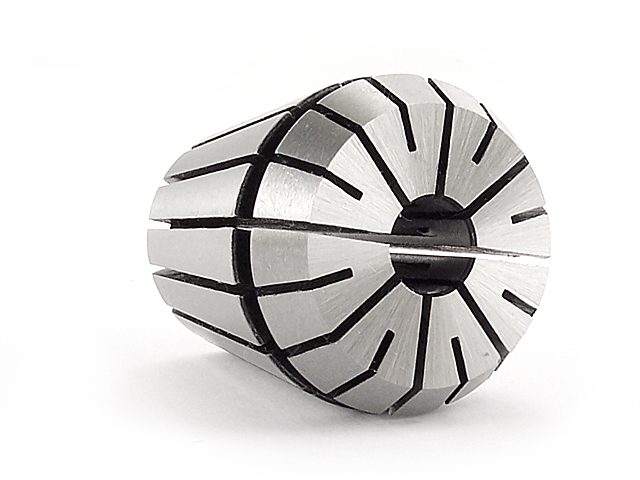

ER32 collet - 13 mm - DARMET
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$10.73
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.72
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER32_13
Description
Properties and Application:
- ER32 Collet for tools with a cylindrical shank.
- Collets fit ER32 clamping chucks.
- ER32 nuts are used for wedging and clamping the collet holder.
- Slots allow the collet to spring.
- The ER holder is characterized by a long service life.
- Clamping range: 13.0 - 12.0 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 13 | mm |
| D | 32 | mm |
| D1 | 33 | mm |
| D2 | 29.2 | mm |
| L | 40 | mm |
| L1 | 7.16 | mm |
| L2 | 5.5 | mm |
| L3 | 3.6 | mm |
Mounting Collets in Nuts:
|
| ||
| Mounting the collet in the chuck nut | Correctly mounted collet | Dismantling the collet |
To properly install the ER collet in the chuck, you should:
- Insert the collet at an angle into the nut
- Hook the collet groove onto the eccentric or cylindrical protrusion of the nut (fig. A)
- Press the collet into the nut (fig. B)
- Screw the nut with the pressed collet onto the chuck so that it is possible to clamp the tool to be machined
Maximum clamping diameters depending on the ER collet type:
