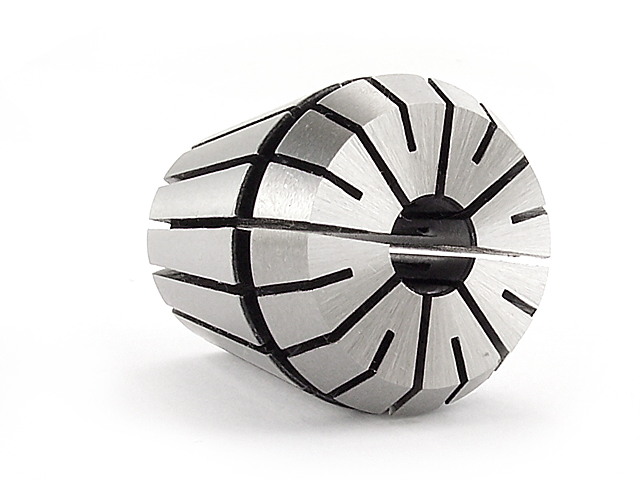

ER32 collet - 2 mm - DARMET
Availability:
brak towaru
Gross price:
$10.73
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.72
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER32_02
Description
Features and application:
- ER32 collet for tools with a cylindrical shank.
- Collets fit ER32 collets.
- ER32 nuts are used for wedging and clamping the cage.
- Grooves allow for spring-loading of the collet.
- Clamping range: 2.0 - 1.5 mm.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| d | 2 | mm |
| D | 32 | mm |
| D1 | 33 | mm |
| D2 | 29.2 | mm |
| L | 40 | mm |
| L1 | 7.16 | mm |
| L2 | 5.5 | mm |
| L3 | 3.6 | mm |
Installation of sleeves in nuts:
|
|
||
|
Installing the collet in the holder nut |
Collet correctly mounted | Dismounting the collet |
To correctly mount the ER collet in the holder:
- Insert the collet at an angle into the nut.
- Hook the collet's groove onto the eccentric or cylindrical protrusion of the nut (fig. A).
- Press the collet into the nut (fig. B).
- Screw the nut with the pressed-in collet onto the holder so that the tool can be clamped.
Maximum clamping diameters depending on the ER collet type:
