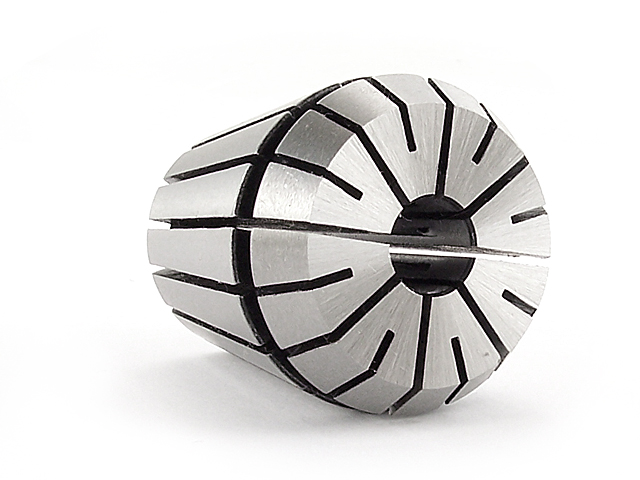

ER32 collet - 3 mm - DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$10.73
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.72
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER32_03
Description
Properties and Applications:
- ER32 Collet for tools with cylindrical shank.
- The collets fit ER32 clamping holders.
- ER32 Nuts are used for wedging and clamping the basket.
- Slots allow the collet to spring.
- Clamping range: 3.0 - 2.0 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 3 | mm |
| D | 32 | mm |
| D1 | 33 | mm |
| D2 | 29.2 | mm |
| L | 40 | mm |
| L1 | 7.16 | mm |
| L2 | 5.5 | mm |
| L3 | 3.6 | mm |
Collet Assembly in Nuts:
|
| ||
| Assembly of the collet in the holder nut | Collet properly mounted | Collet disassembly |
To properly install the ER collet in the holder, you should:
- Insert the collet at an angle into the nut.
- Engage the collet slot with the eccentric or cylindrical protrusion of the nut (fig. A).
- Press the collet into the nut (fig. B).
- Screw the nut with the pressed-in collet onto the holder so that the tool to be machined can be clamped.
Maximum clamping diameters depending on ER collet type:
