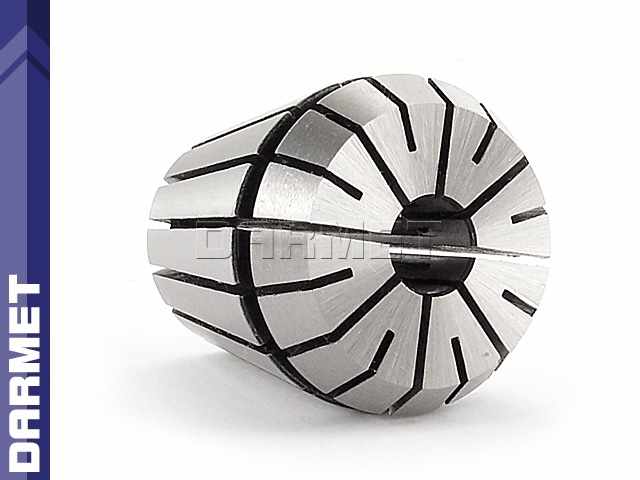

ER32 collet - 6 mm - DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$10.68
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$8.68
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER32_06
Description
Properties and Use:
- ER32 Collet Sleeve for tools with a cylindrical shank.
- The collets fit ER32 clamping holders.
- ER32 nuts are used for wedging and clamping the collet chuck.
- Slots allow the collet to spring.
- The ER chuck features a long service life.
- Clamping range: 6.0 - 5.0 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 6 | mm |
| D | 32 | mm |
| D1 | 33 | mm |
| D2 | 29.2 | mm |
| L | 40 | mm |
| L1 | 7.16 | mm |
| L2 | 5.5 | mm |
| L3 | 3.6 | mm |
Mounting Collets in Nuts:
|
| ||
| Mounting the collet sleeve in the holder nut | Collet properly mounted | Removing the collet sleeve |
To properly mount the ER collet sleeve in the holder you should:
- Insert the collet at an angle into the nut
- Hook the collet slot onto the eccentric or cylindrical protrusion of the nut (fig. A)
- Press the collet into the nut (fig. B)
- Screw the nut with the pressed-in collet onto the holder so that the tool can be clamped
Maximum clamping diameters depending on the ER collet type:
