ER40 Collet - 14 mm - DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$12.60
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$10.24
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER40_14
Description
Properties and Applications:

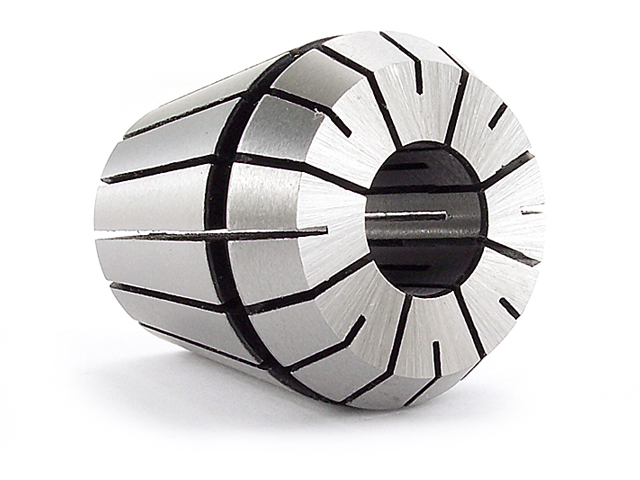

- ER40 Collet for tools with a cylindrical shank.
- Collets fit ER40 collet chucks.
- ER40 nuts are used for wedging and clamping the collet.
- Slots allow the collet to have springing action.
- The ER collet chuck features a long service life.
- Clamping range: 14.0 - 13.0 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 14 | mm |
| D | 40 | mm |
| D1 | 41 | mm |
| D2 | 36.2 | mm |
| L | 46 | mm |
| L1 | 7.66 | mm |
| L2 | 7 | mm |
| L3 | 4.1 | mm |
Assembly of Collets in Nuts:
|
| ||
| Installing the collet into the chuck nut | Correctly installed collet | Removing the collet |
To properly install the ER collet in the chuck, you should:
- Insert the collet at an angle into the nut
- Engage the collet slot with the eccentric or cylindrical protrusion of the nut (Fig. A)
- Press the collet into the nut (Fig. B)
- Screw the nut with the pressed collet onto the chuck so that the tool can be clamped
Maximum clamping diameters depending on the ER collet type:
