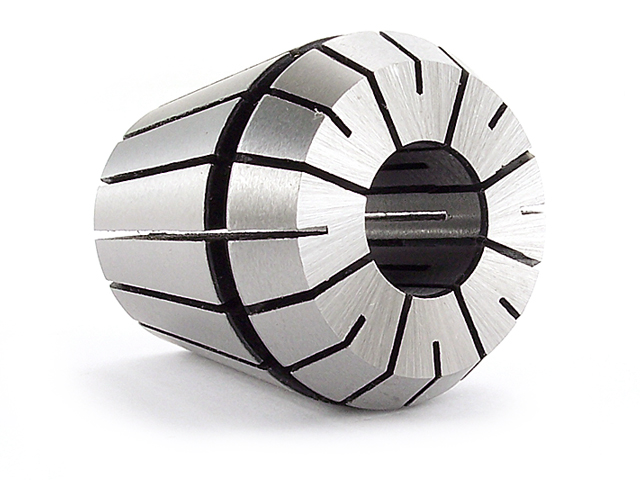

ER40 Collet - 23 mm - DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$12.60
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$10.24
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER40_23
Description
Properties and Applications:
- ER40 Collet for tools with cylindrical shanks.
- The collets fit ER40 collet chucks.
- ER40 Nuts are used for wedging and clamping the collet body.
- Slots allow the collet to spring.
- The ER collet body is characterized by a long service life.
- Clamping range: 23.0 - 22.0 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 23 | mm |
| D | 40 | mm |
| D1 | 41 | mm |
| D2 | 36.2 | mm |
| L | 46 | mm |
| L1 | 7.66 | mm |
| L2 | 7 | mm |
| L3 | 4.1 | mm |
Mounting the collets in the nuts:
|
| ||
| Mounting the collet in the chuck nut | Collet correctly mounted | Disassembling the collet |
To properly mount the ER collet in the chuck, you should:
- Insert the collet at an angle into the nut
- Engage the collet groove with the eccentric or cylindrical protrusion of the nut (fig. A)
- Press the collet into the nut (fig. B)
- Screw the nut with the pressed collet to the chuck so that it is possible to secure the tool being machined
Maximum clamping diameters depending on the ER collet type:
