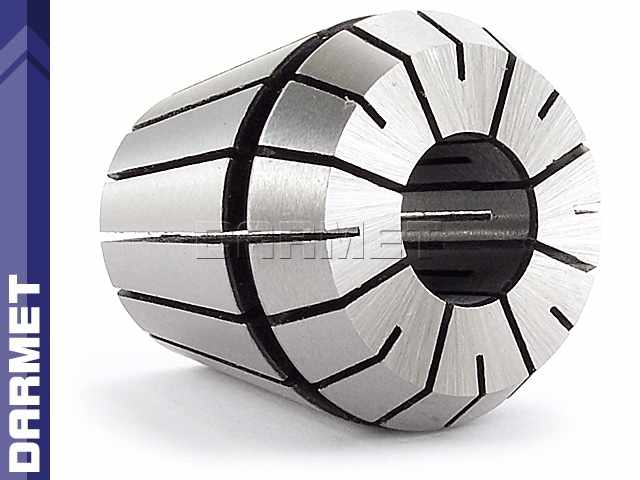

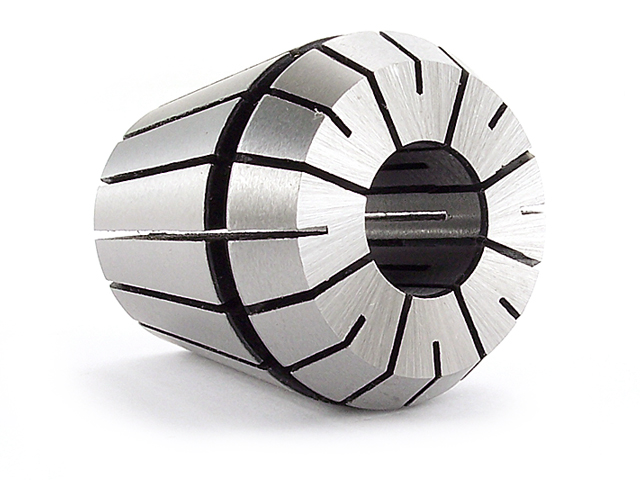

ER40 Collet - 26 mm - DARMET
Availability:
średnia ilość
Dispatched within:
24 hours
Gross price:
$12.54
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$10.19
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER40_26
Description
Features and application:
- ER40 collet for tools with a cylindrical shank.
- Collets fit ER40 collets.
- ER40 nuts are used for wedging and clamping the cage.
- The grooves allow for spring-loading of the collet.
- The ER cage is characterized by a long service life.
- Clamping range: 26.0 - 25.0 mm.
Technical data:
| Parameter | Value | Unit |
|---|---|---|
| d | 26 | mm |
| D | 40 | mm |
| D1 | 41 | mm |
| D2 | 36.2 | mm |
| L | 46 | mm |
| L1 | 7.66 | mm |
| L2 | 7 | mm |
| L3 | 4.1 | mm |
Installation of sleeves in nuts:
|
| ||
| Installation of the clamping sleeve in the holder nut | The sleeve is correctly mounted | Removing the collet |
To correctly mount the ER collet in the holder:
- Insert the collet at an angle into the nut
- Hook the collet channel into the eccentric or cylindrical projection of the nut (fig. A)
- Press the collet into the nut (fig. B)
- Screw the nut with the pressed collet onto the holder so that the tool being processed can be clamped
Maximum clamping diameters depending on the ER collet type:
