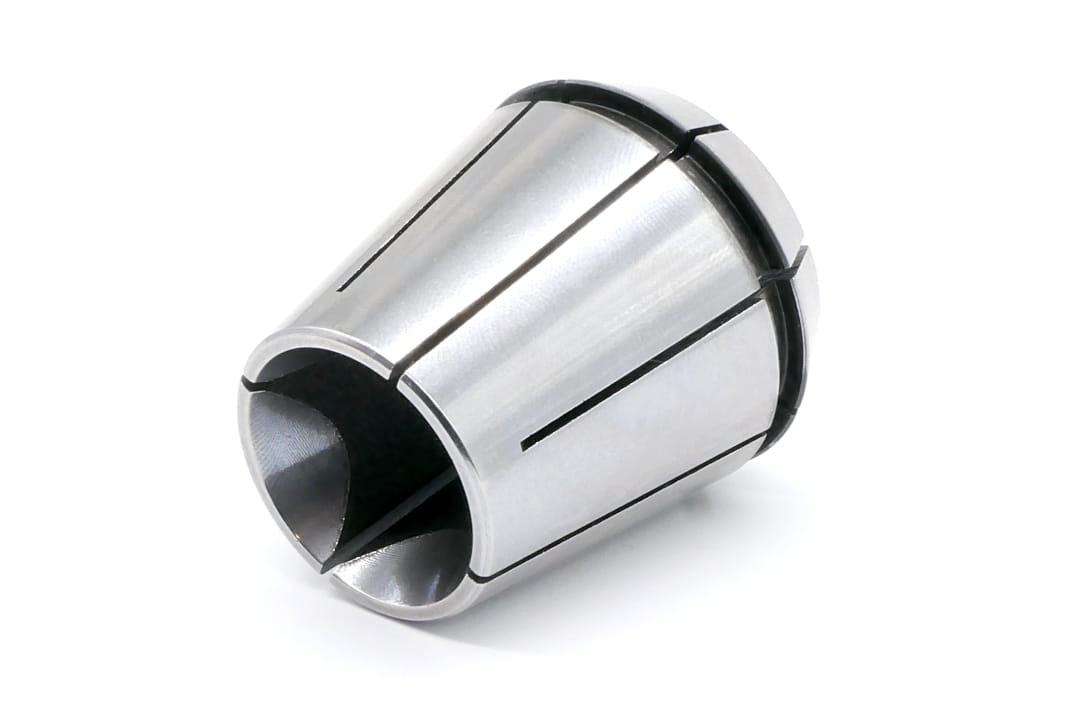

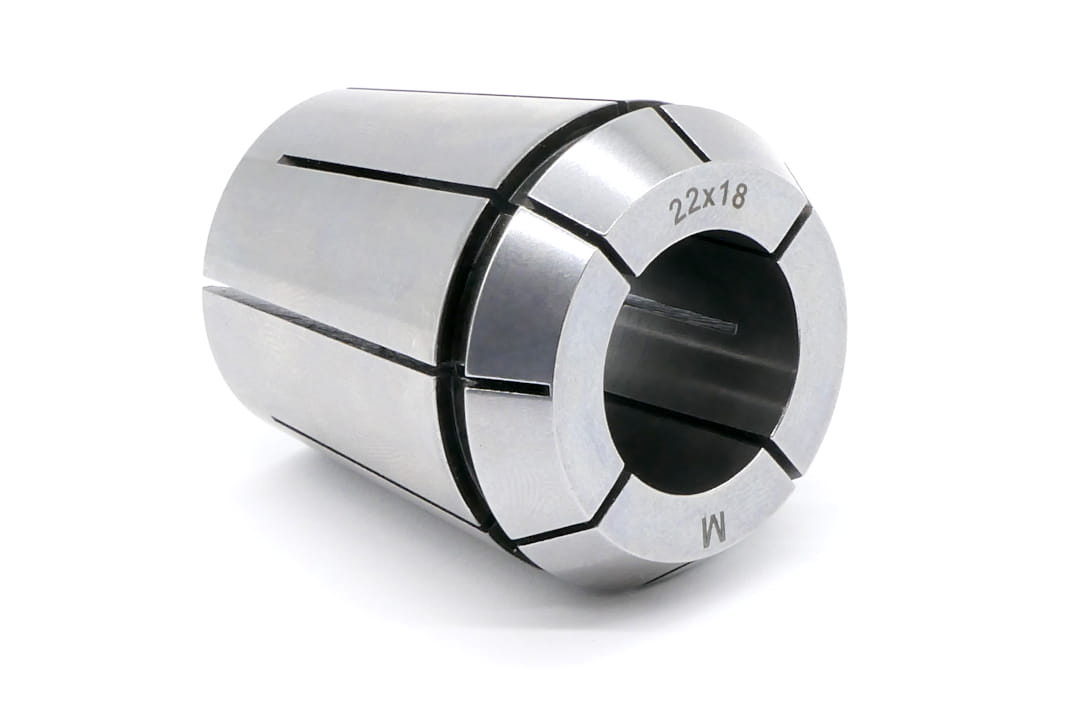

ER40-M Collet – 22 mm for taps – APX

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $34.55

incl. 23% TAX, excl. shipping costs

Regular price:

34.55

The lowest price during 30 days prior to the reduction:

Net price: $28.09

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 12 points []

product unavailable

add to wish list

Rating:

Vendor: APX

Product code: APX_ER40M.D22

Description

Features and Applications:

ER-M collet designed for threading taps.

Technical data:

Parameter	Value
D	41 mm
d	22 mm
L	46 mm

Collet installation in nuts:

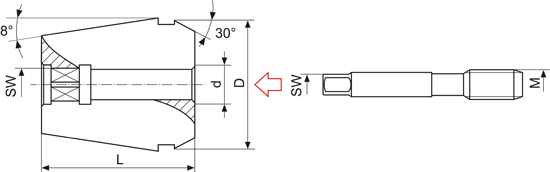

Technical drawing of collet installation

Collet installation

in the chuck nut

Collet properly installed

Collet removal

ER Standards:

ER	d₁ [mm]	Clamping Range [mm]	d₂ [mm]	d₃ [mm]	a_AT3	l₁ [mm]	l_{13 max} [mm]

ER11	1÷7	0,5	11	11,5	8°	18,0	6,6
ER16	1÷10	0,5÷1	16	17,0	8°	27,5	10,6
ER20	1÷13	0,5÷1	20	21,0	8°	31,5	11,5
ER25	1÷16	0,5÷1	25	26,0	8°	34,0	12
ER32	1÷20	0,5÷1	32	33,0	8°	40,0	13
ER40	1÷30	1	40	41,0	8°	46,0	15

To properly install an ER collet into the chuck, follow these steps:

Insert the collet at an angle into the nut.
Hook the collet’s groove onto the eccentric or cylindrical lip inside the nut (see Fig. A).
Push the collet firmly into the nut until it snaps into place (see Fig. B).
Screw the nut with the collet onto the chuck body, making sure it's ready to hold the cutting tool.
