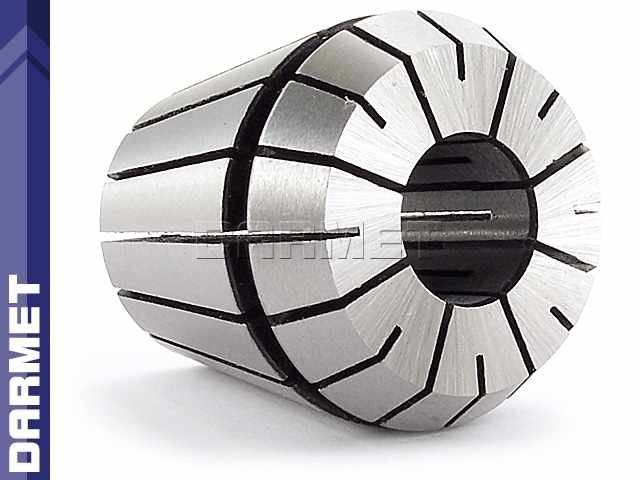

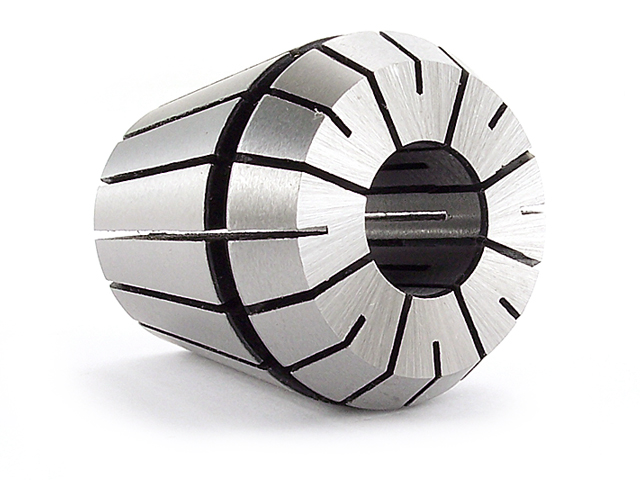

ER40 collet - 7 mm - DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$12.54
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$10.19
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER40_07
Description
Properties and Application:
- ER40 collet for tools with a cylindrical shank.
- The collets fit ER40 collet chucks.
- ER40 nuts are used for wedging and clamping the collet.
- The grooves allow the collet to spring back.
- The ER collet chuck features a long service life.
- Clamping range: 7.0 - 6.0 mm.
Technical Data:
| Parameter | Value | Unit |
|---|---|---|
| d | 7 | mm |
| D | 40 | mm |
| D1 | 41 | mm |
| D2 | 36.2 | mm |
| L | 46 | mm |
| L1 | 7.66 | mm |
| L2 | 7 | mm |
| L3 | 4.1 | mm |
Assembly of Collets in Nuts:
|
| ||
| Assembly of the collet in the chuck nut | Collet properly mounted | Disassembly of the collet |
To correctly install the ER collet in the chuck, you should:
- Insert the collet at an angle into the nut
- Hook the groove of the collet onto the eccentric or cylindrical protrusion of the nut (fig. A)
- Push the collet into the nut (fig. B)
- Screw the nut with the inserted collet onto the chuck so that it is possible to clamp the tool being processed
Maximum clamping diameters depending on the ER collet type:
