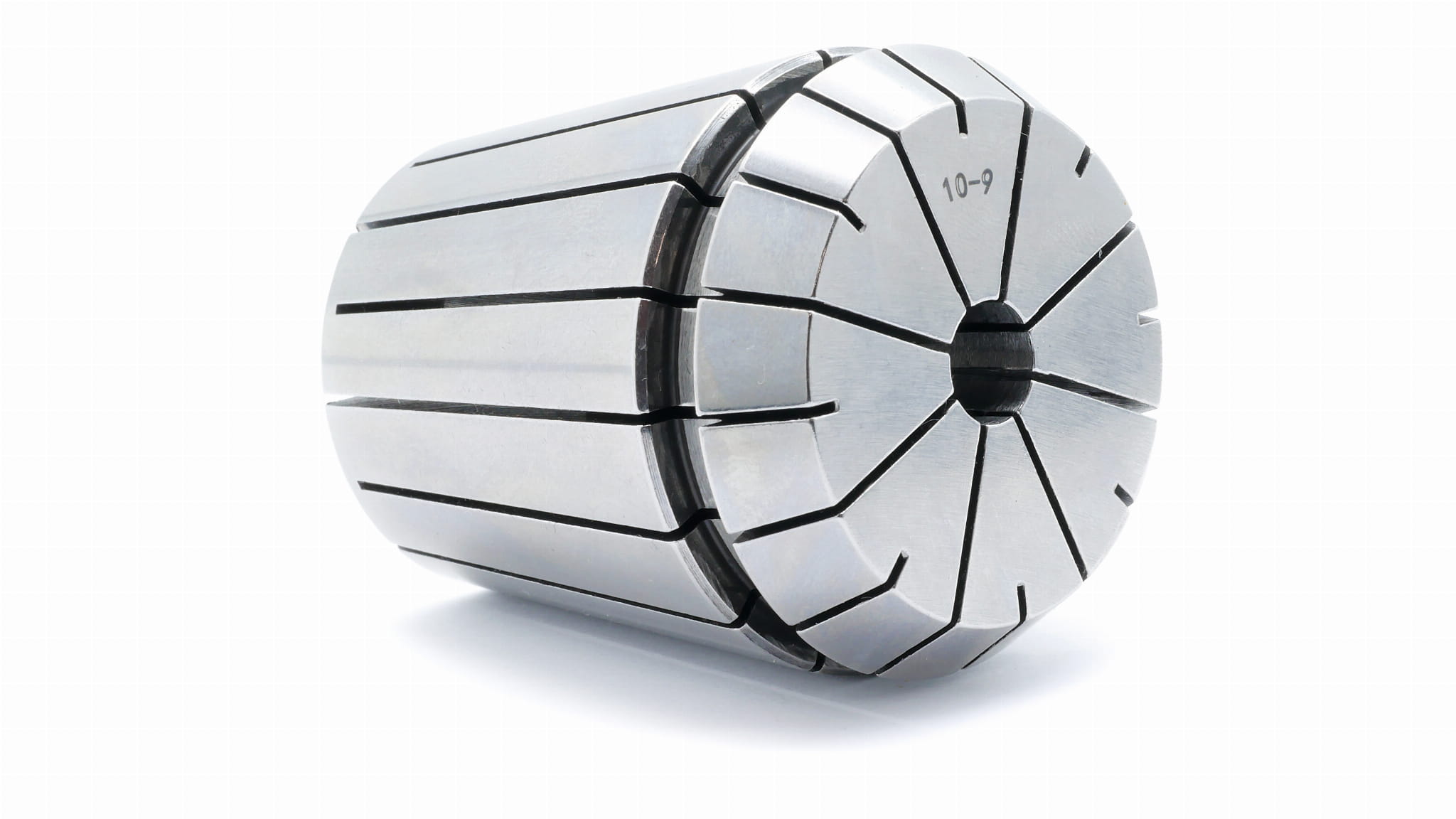

ER50 collet - 27 mm | DIN 6499B - DARMET
Availability:
mała ilość
Dispatched within:
24 hours
Gross price:
$23.72
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
Net price:
$19.29
excl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
product unavailable
add to wish list
Rating:
0
0
Vendor:
Product code:
DM_TUL_ER50_27
Description
Features and application:
- ER50 collet for tools with a cylindrical shank.
- Collets fit ER50 collet holders.
- ER nuts are used for wedging and clamping the cage.
- The grooves allow for spring-loading of the collet.
- Clamping range: 27.0 - 25.0 mm.
- To tighten the collet nuts, use ER50 hook or multi-point wrench.
Technical data:
| Parameter | Value |
|---|---|
| d | 27 mm |
| D | 50 mm |
| D1 | 52 mm |
| D2 | 46 mm |
| L | 60 mm |
| L1 | 12.6 mm |
| L2 | 8.5 mm |
| L3 | 5.5 mm |
Installation of sleeves in nuts:
|
| ||
| Installing the collet in the holder nut | Collet correctly mounted | Disassembling the collet |
To correctly mount the ER collet in the holder:
- Insert the collet at an angle into the nut.
- Hook the collet's groove onto the eccentric or cylindrical projection of the nut (Fig. A).
- Press the collet into the nut (Fig. B).
- Screw the nut with the pressed-in collet onto the holder so that the tool being processed can be clamped.
Maximum clamping diameters depending on the ER collet type:
